- IP Video Input
- 16-Channel
- Incoming Bandwidth
- 80 Mbps
- Outgoing Bandwidth
- 60 Mbps
- HDMI Output Resolution
- 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output Resolution
- 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output Mode
- HDMI/VGA Simultaneous Output
- Multi-View Display
- 1/4/6/8/9/16
- Audio Compression
- G.711A/G.711U/G.726
- Decoding Format
- H.265+/H.265/ H.264+/H.264
- Video Compression
- H.265+/H.265/ H.264+/H.264
- Record Resolution
- 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Live View/Playback Resolution
- 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/
- 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback
- 16-Channel
- Capability
- 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
- Record Mode
- • Manual Recording
- Scheduling Recording
- Motion Detection Recording
- Playback Mode
- • Instant Playback
- Regular Playback
- Tag Playback
- Event Playback
- Backup Mode
- • Regular Backup
- Video Clip Backup
- Playback Function
- • Play
- Pause
- Stop
- Fast Forward
- Fast Backward
- Play By Frame
- Full Screen
- Video Clip
- Export Clip
- Digital Zoom
- Lock Recording
- Audio On/Off
- Protocol
- TCP/IP, DHCP, DNS, NTP, UPnP
- Mobile Phone Access
- Android, iOS
- Incoming Bandwith
- 80 Mbps
- Web Browser
- Chrome (57+), Firefox (52+), Edge (91+)
- Interoperability
- ONVIF, CGI

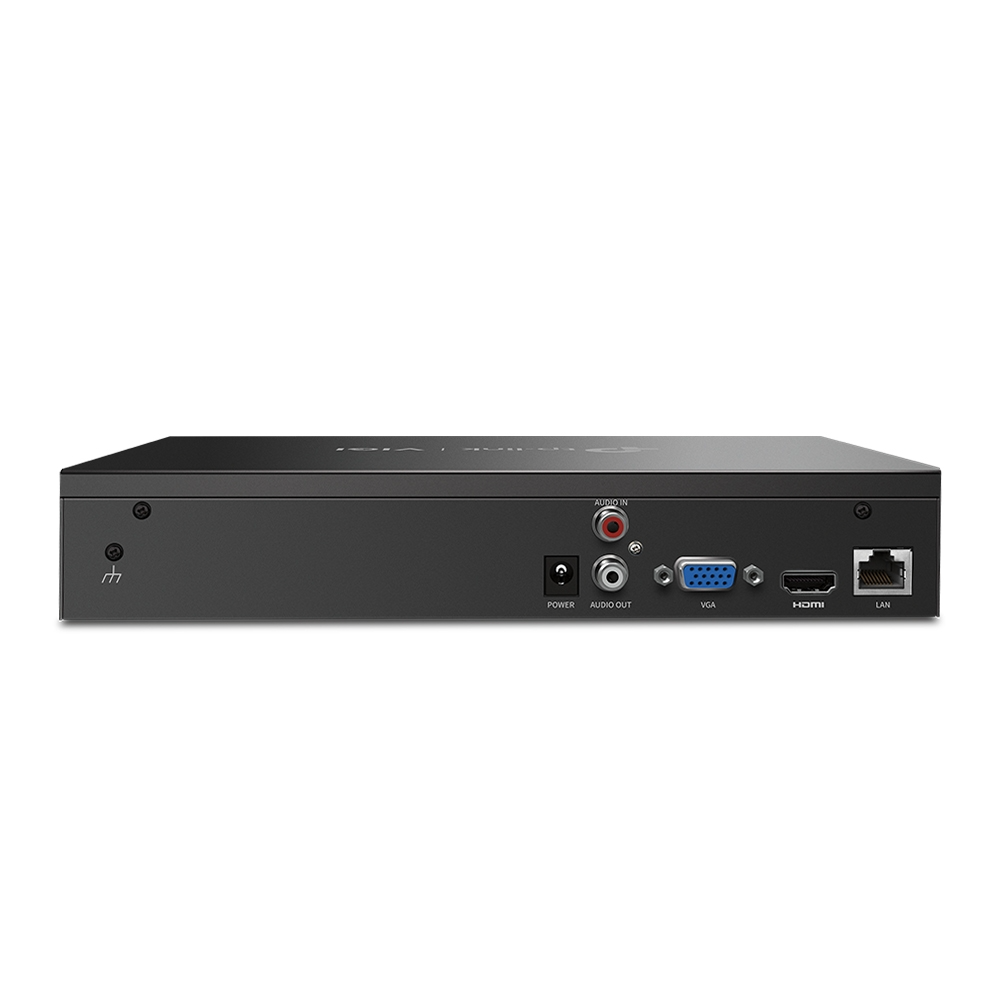

- Network Interface
- 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
- USB Interface
- 2× USB 2.0
- Audio Interface
- 1, Audio In; 1, Audio Out
- Alarm In/Out
- N/A
- Serial Interface
- N/A
- Power
- 1× DC Jack
- Reset Button
- 1
- Speaker
- N/A
- eSATA
- N/A
- HDMI
- 1
- VGA
- 1
- SATA
- 1 SATA Interface
- Capacity
- Up to 16 TB Capacity for Each HDD
- General Alarm
- • Motion Detection
- Video Tampering
- Line-Crossing Detection
- Intrusion Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned/Removal Detection
- Vehicle Detection
- Human Detection
- Smart Frame
- Anomaly Alarm
- • Video Loss
- Offline and IP Conflict
- Disk Exception
- Login Exception
- Alarm Linkage
- • Recording
- White Light Alarm
- Buzzer
- Log
- Audible Alarm
- Network Interface
- 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
- Operating Temperature
- -10–55 °C
- Storage Temperature
- -40–70 °C
- Storage Humidity
- 10%~90% RH Non-Condensing
- Weight
- 578.5 g
- Package Content
- VIGI Network Video Recorder
- Power Adapter
- HDD Screws
- Mouse
- Quick Installation Guide
- Working Temperature
- • NVR: -10–55 °C
- Power Adapter
- 0–40 °C
- Working Humidity
- 10%~90% RH Non-Condensing
- Dimensions( W X D X H )
- 246.2 × 148.2 × 45 mm
- External Power Supply
- DC 12V/1.5A
- Net Weight
- 0.61 Kg
- Gross Weight
- 1.12 Kg
- Max. Power Consumption
- 4.25 W (without disk)
- Certifications
- CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI, FCC
- Video Input
- 16-Channel IP Video Input, up to 8 MP Resolution
- Recording Resolution
- 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- HDMI Output Resolution
- 1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz,
- 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz,
- 1280×720/60Hz
- VGA Output Resolution
- 1 Channel, Resolution: 1920×1080/60Hz,1680×1050/60Hz,
- 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
- รหัสสินค้า (SKU)

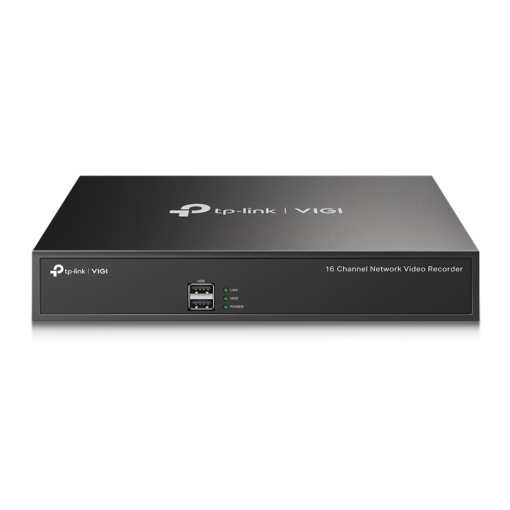

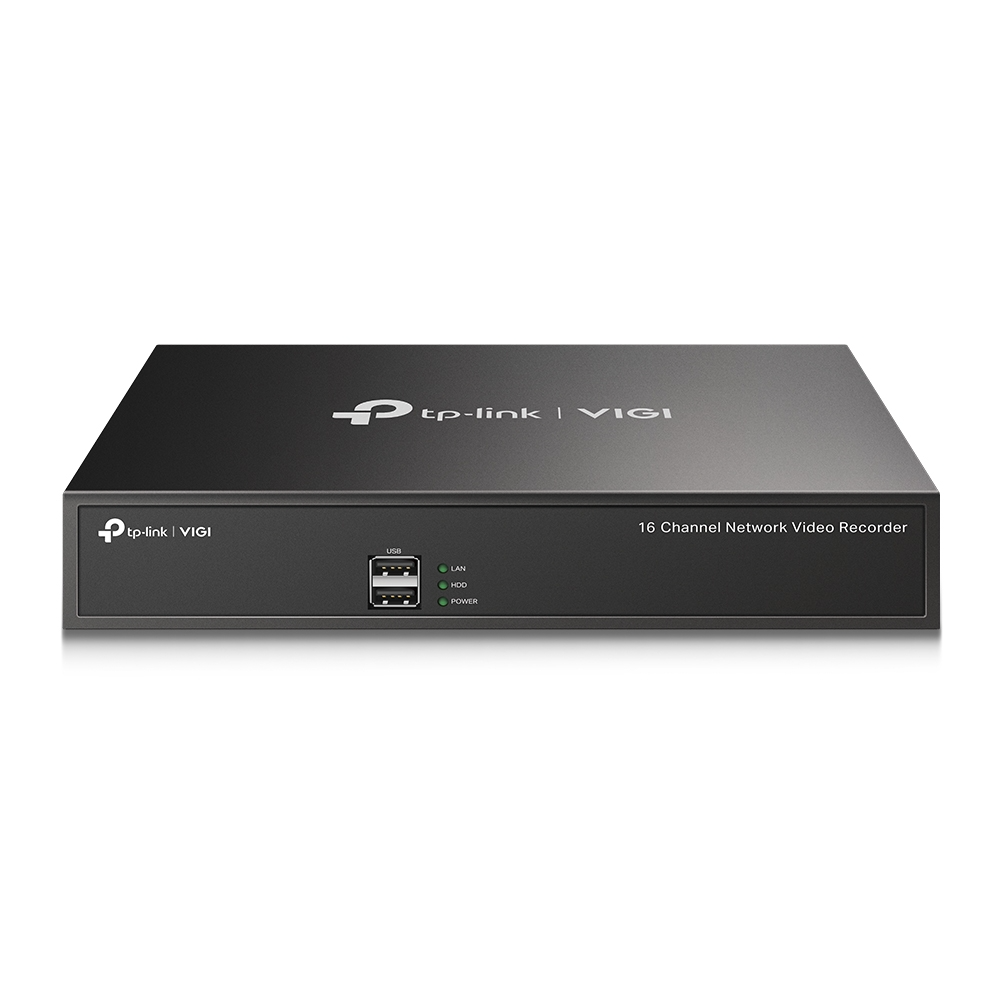

- VIGI NVR1016H
- หมวดหมู่
- เครื่องบันทึก NVR/DVR
- ประเภทการจัดส่ง
- จัดส่งสินค้าจริง
