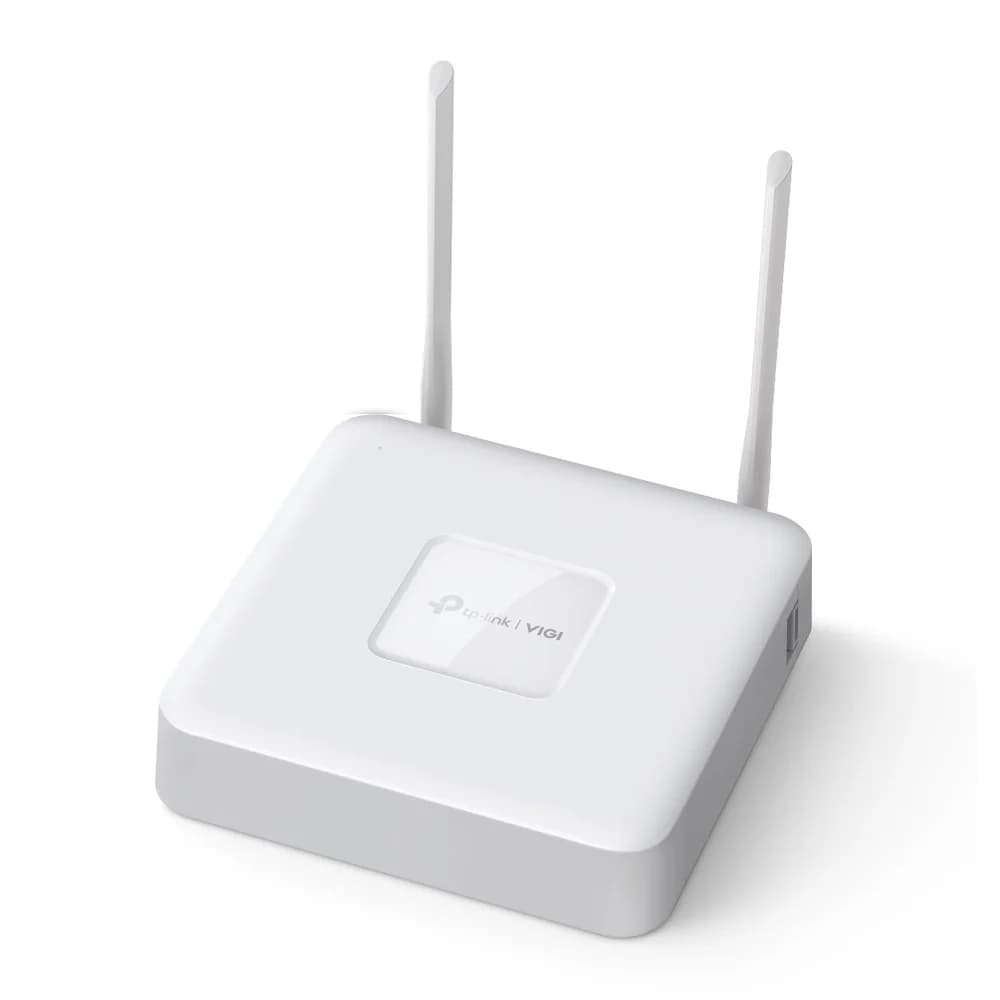

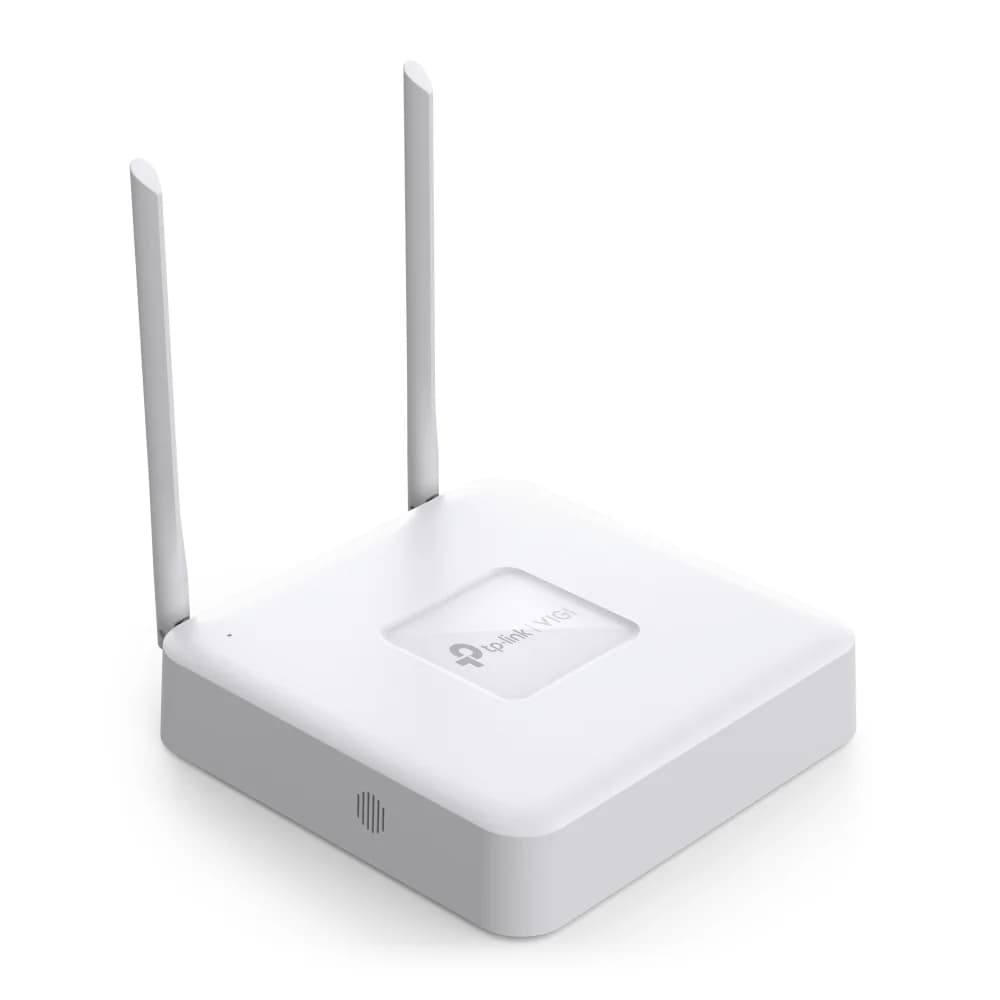

Name: TP-Link VIGI NVR1108H-W VIGI 8 Channel Wi-Fi Network Video Recorder
Brand: TP-Link

รายละเอียดสินค้า

รุ่น	VIGI NVR1108H-W
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF Profile S/T, CGI
Throughput Monitoring	N/A
Capacity	Up to 10 TB Capacity for Each HDD**
Storage Temperature	-40 ℃ to 70 °C (-40 ℉ to 158 ℉)
Storage Humidity	10%~90% RH Non-Condensing
WiFi Channels	• UN: 1-13• US: 1-11
Wireless Name	• SSID Configuration• Radio
Frequency	2.4 GHz
Auto Wireless Channel	N/A
Wireless Statistics	N/A
Radio Bandwidth	• Auto: Yes• 20M: Yes• 40M: Yes
Wireless Rate	300Mbps(802.11n), 2 × 2 MIMO
ความปลอดภัยไร้สาย	WPA-PSK/WPA2-PSK
เสาอากาศ	• Quantity: 2• Type: 2.4GHz Welded Non-detachable Antenna• Gain: 5.3dBi• Radio Frequency Transmit Power: 16dBm• Length: 198.8 mm for Long Side and 189 mm for Short Side
HDMI Output Resolution	1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Network Switch	Yes

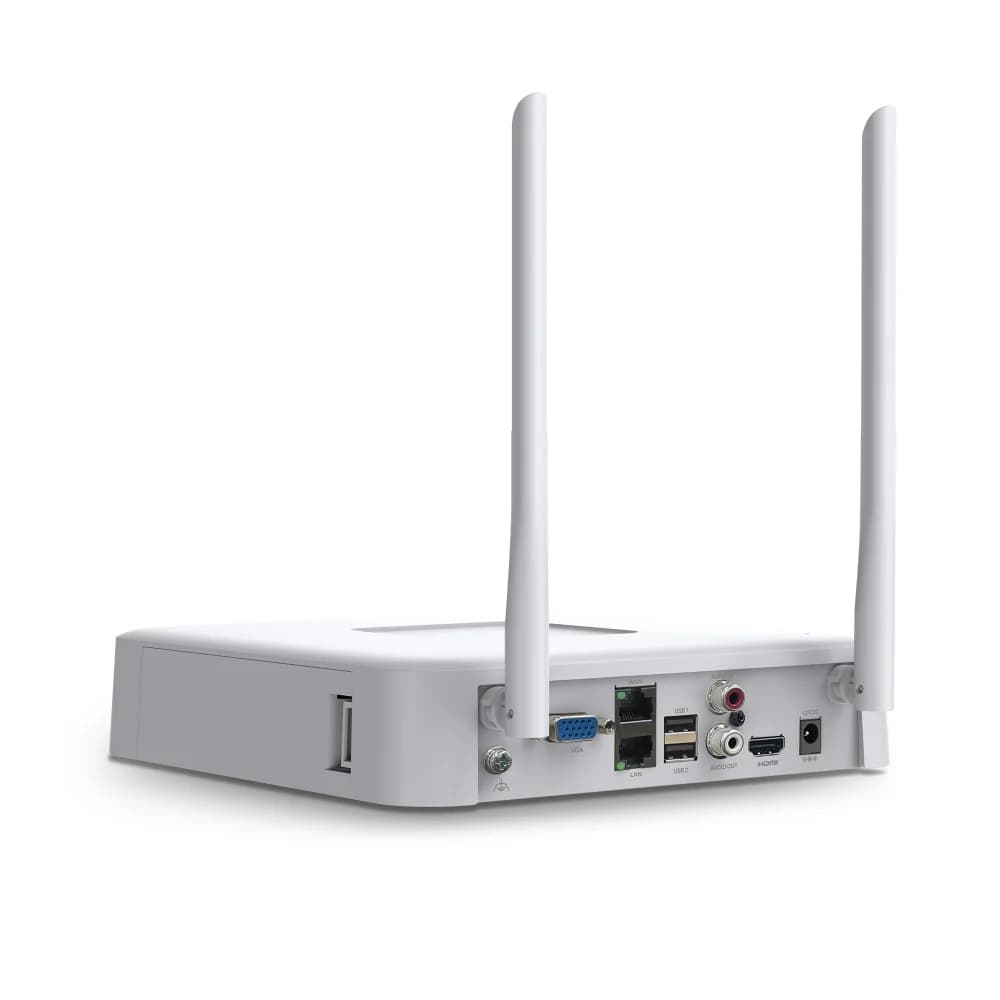

Network Interface	• 1× RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface• 1× RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface
USB Interface	2× USB 2.0
Audio Interface	1-ch RCA Input; 1-ch RCA Output
Serial Interface	N/A
HDMI	1
Audio Compression	G.711A/G.711U/G.726
Speaker	1; Real-time Audio Output without Needing Peripherals.
กำลังไฟ	1× DC Jack
External Power Supply	DC 12V/2A
Max. Power Consumption	• 5.7 W (Without Disk)• 16.3 W (Without Disk)
ช่องกล้อง IP	8-Channel
VGA Output Resolution	1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Multi-View Display	1/4/6/8
Record Resolution	8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
VGA	1
Alarm In/Out	N/A
Reset Button	1
General Alarm	• Motion Detection• Video Tampering• Scene Change Detection• Line-Crossing Detection• Intrusion Detection• Region Entering Detection• Region Exiting Detection• Loitering Detection• Object Abandoned/Removal Detection• Vehicle Detection• Human Detection• Abnormal Sound Detection• Smart FrameNote: The alarm function requires the use of a camera.
Anomaly Alarm	• Video Loss• Offline and IP Conflict• Disk Exception• Login Exception
Alarm Linkage	• Recording• White Light Alarm• Log• Audible AlarmNote: The alarm function requires the use of a camera.
อุปกรณ์ในกล่อง	• VIGI Network Video Recorder• Power Adapter• HDD Screws• Mouse• Rubber Feet• Quick Installation Guide
Working Temperature	• NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉）• Power Adapter: 0 ℃ to 40 °C (32 ℉ to 104 ℉)
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	Excluding Antennas: 7.9 × 7.9 × 1.7 in (200.3 × 200.3 × 43 mm)
Net Weight	0.5 kg
Gross Weight	1.0 kg
Certifications	BSMI, CE, HDMI, JRF, KC, NCC, NTRA, VCCI
ฮาร์ดดิสก์	ไม่รวมฮาร์ดดิสก์
แบนด์วิดท์รับเข้า	80 Mbps
แบนด์วิดท์ส่งออก	60 Mbps
Video Output Mode	HDMI/VGA Simultaneous Output
การบีบอัดวิดีโอ	H.265+/H.265/ H.264+/H.264
Synchronous Playback	8-Channel†
Capability	• 25fps:2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP• 30fps:4-ch @ 3MP, 2-ch @ 5MP
Record Mode	• Manual Recording• Scheduling Recording• Motion Detection Recording
Playback Mode	• Instant Playback• Regular Playback• Tag Playback• Event Playback
Backup Mode	• Regular Backup• Video Clip Backup
Playback Function	• Play• Pause• Stop• Fast Forward• Fast Backward• Play By Frame• Video Clip• Export Clip• Lock Recording• Audio On/Off
Protocol	UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access	Android, iOS
Standards and Protocols	IEEE 802.11b/g/n
eSATA	N/A
ช่องฮาร์ดดิสก์ SATA	1 SATA Interface
ระยะเวลารับประกัน	3 ปี
