- IP Video Input
- 16-Channel
- Incoming Bandwidth
- 160 Mbps
- Outgoing Bandwidth
- 160 Mbps
- HDMI Output Resolution
- 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
- VGA Output Resolution
- 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
- Video Output Mode
- HDMI/VGA Independent Output
- Multi-View Display
- 1/4/6/8/9/16
- Audio Compression
- G.711A/G.711U/G.726
- Video Compression
- H.265+/H.265/H.264+/H.264
- Record Resolution
- 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback
- 16-Channel †
- 30fps
- 2-ch@8MP、4-ch@5MP、5-ch@4MP、6-ch@3MP
- Record Mode
- • Manual Recording
- Scheduling Recording
- Motion Detection Recording
- Playback Mode
- • Instant Playback
- Regular Playback
- Tag Playback
- Event Playback
- Backup Mode
- • Regular Backup
- Video Clip Backup
- Playback Function
- • Play
- Pause
- Stop
- Fast Forward
- Fast Backward
- Play By Frame
- Full Screen
- Video Clip
- Export Clip
- Digital Zoom
- Lock Recording
- Audio On/Off
- Protocol
- UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
- Mobile Phone Access
- Android, iOS
- Web Browser
- Chrome (57+), Firefox (52+), Edge (91+), Safari (11+)
- Interoperability
- ONVIF Profile S, CGI

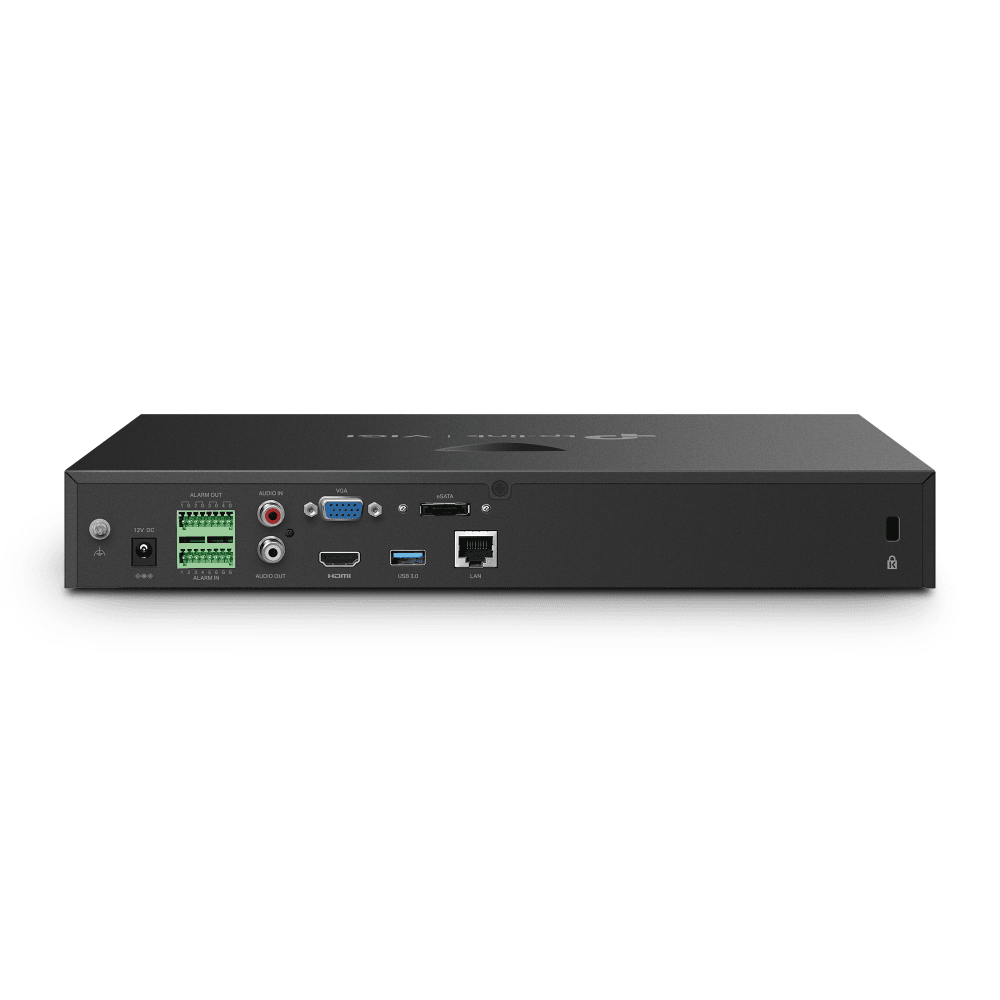

- Network Interface
- 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
- USB Interface
- 1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
- Audio Interface
- 1-ch RCA Input; 1-ch RCA Output
- Alarm In/Out
- 6/4
- Serial Interface
- N/A
- Power
- 1× DC Jack
- Reset Button
- 1
- Speaker
- N/A
- eSATA
- 1*
- HDMI
- 1
- VGA
- 1
- SATA
- 2 SATA Interfaces
- Capacity
- Up to 16 TB Capacity for Each HDD*
- General Alarm
- • Motion Detection
- Video Tampering
- Scene Change Detection
- Line-Crossing Detection
- Intrusion Detection
- Region Entering Detection
- Region Exiting Detection
- Loitering Detection
- Object Abandoned/Removal Detection
- Vehicle Detection
- Human Detection
- Abnormal Sound Detection
- Smart Frame
- Note
- The alarm function requires the use of a camera.
- Anomaly Alarm
- • Video Loss
- Offline and IP Conflict
- Disk Exception
- Login Exception
- Fan Exception
- Note
- The alarm function requires the use of a camera.
- Alarm Linkage
- • Recording
- White Light Alarm
- Buzzer
- Log
- Audible Alarm
- Note
- The alarm function requires the use of a camera.
- Storage Temperature
- -40–70 °C
- Storage Humidity
- 10%~90% RH Non-Condensing
- Package Content
- • VIGI Network Video Recorder
- Power Adapter
- HDD Power Cable
- HDD Data Cables
- Mounting Accessories
- Mouse
- Quick Installation Guide
- Working Temperature
- • NVR: -10–55 °C
- Power Adapter
- 0–40 °C
- Working Humidity
- 10%~90% RH Non-Condensing
- Dimensions( W X D X H )
- 13.0 × 11.2 × 1.8 in (330 × 285 × 45 mm)
- Net Weight
- 2.0 Kg #
- Gross Weight
- 3.3 Kg #
- Power Supply
- 12V DC/3.3A
- Max. Power Consumption
- • 7.475 W (Without Disk)
- 28.635 W (With Disk)
- Certifications
- CE, NTRA, Triman, BSMI, VCCI, FCC, HDMI, ONVIF
- รหัสสินค้า (SKU)

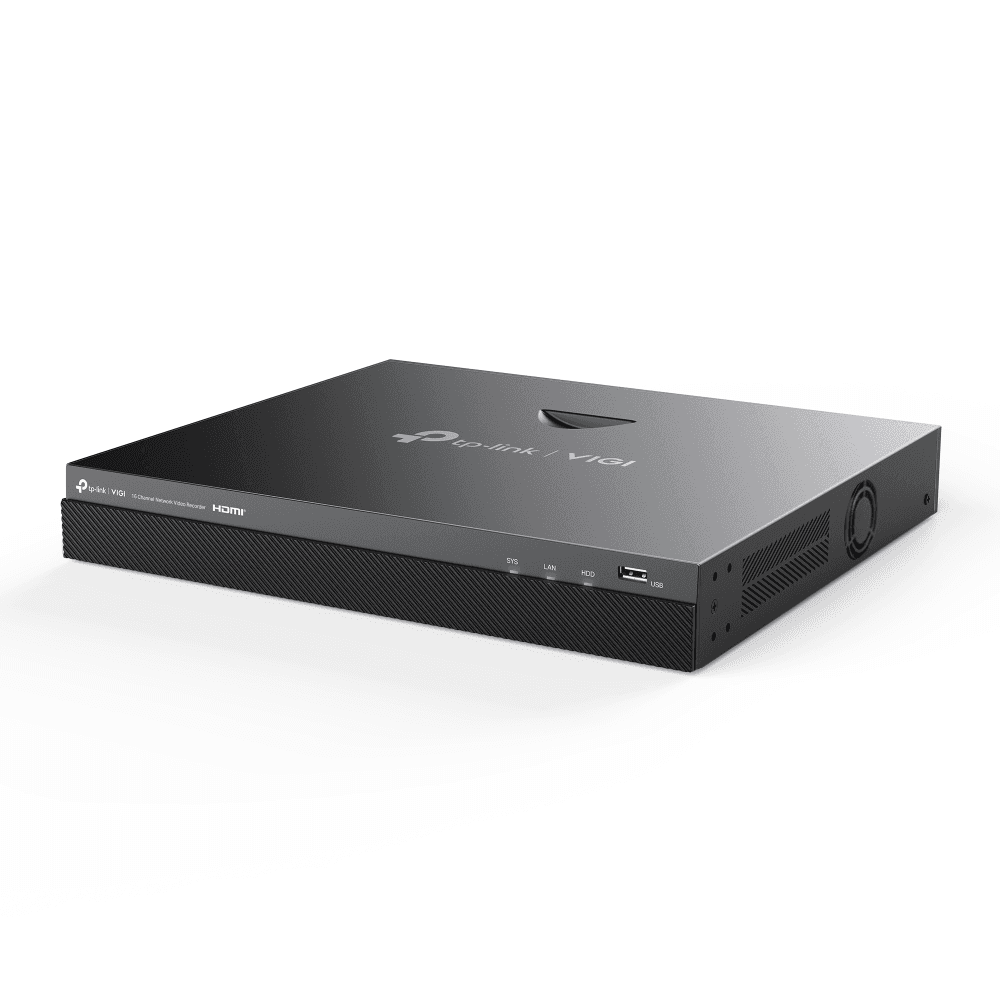

- VIGI NVR2016H
