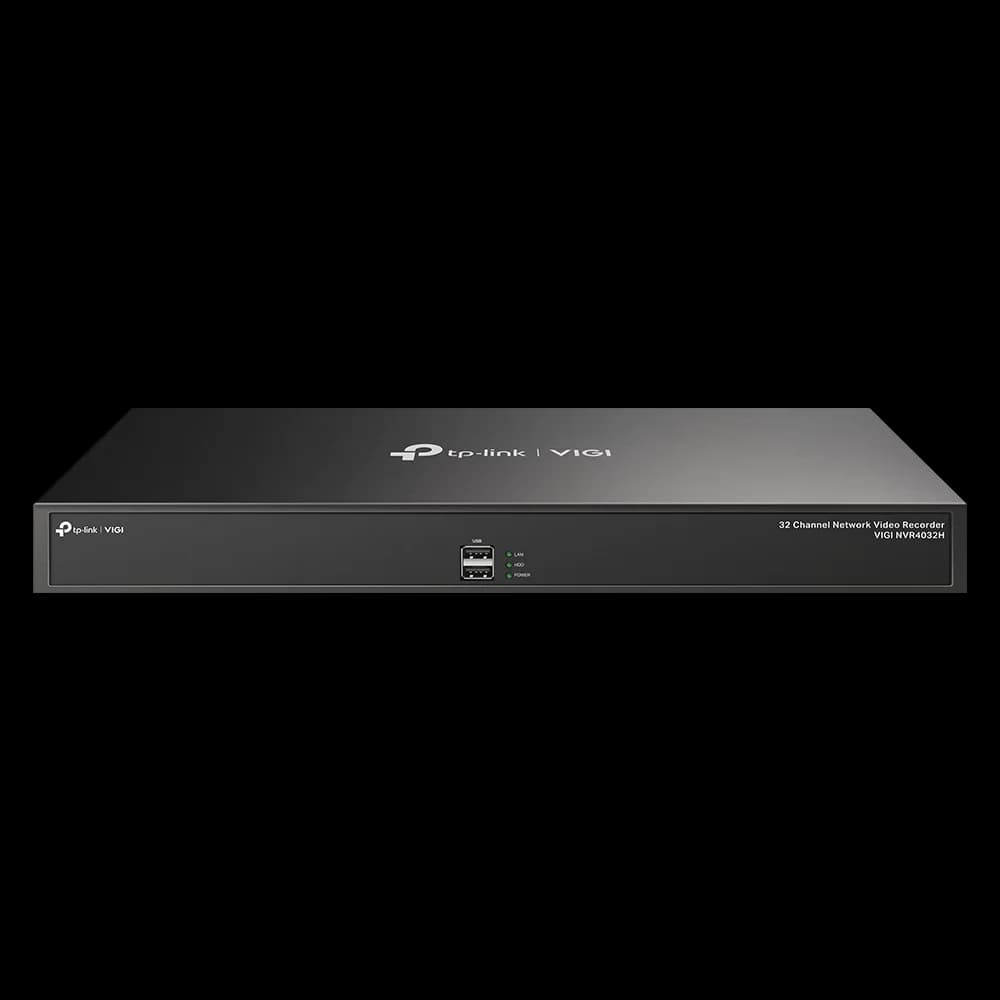

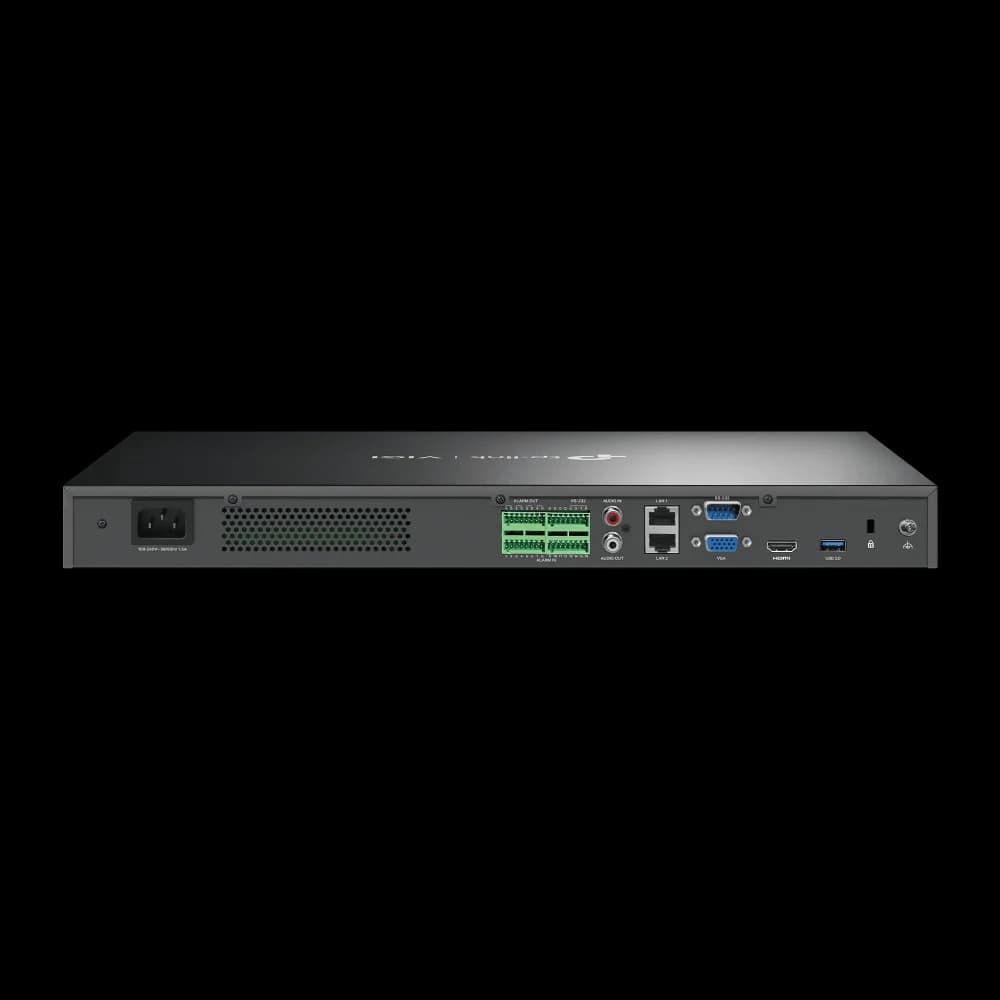

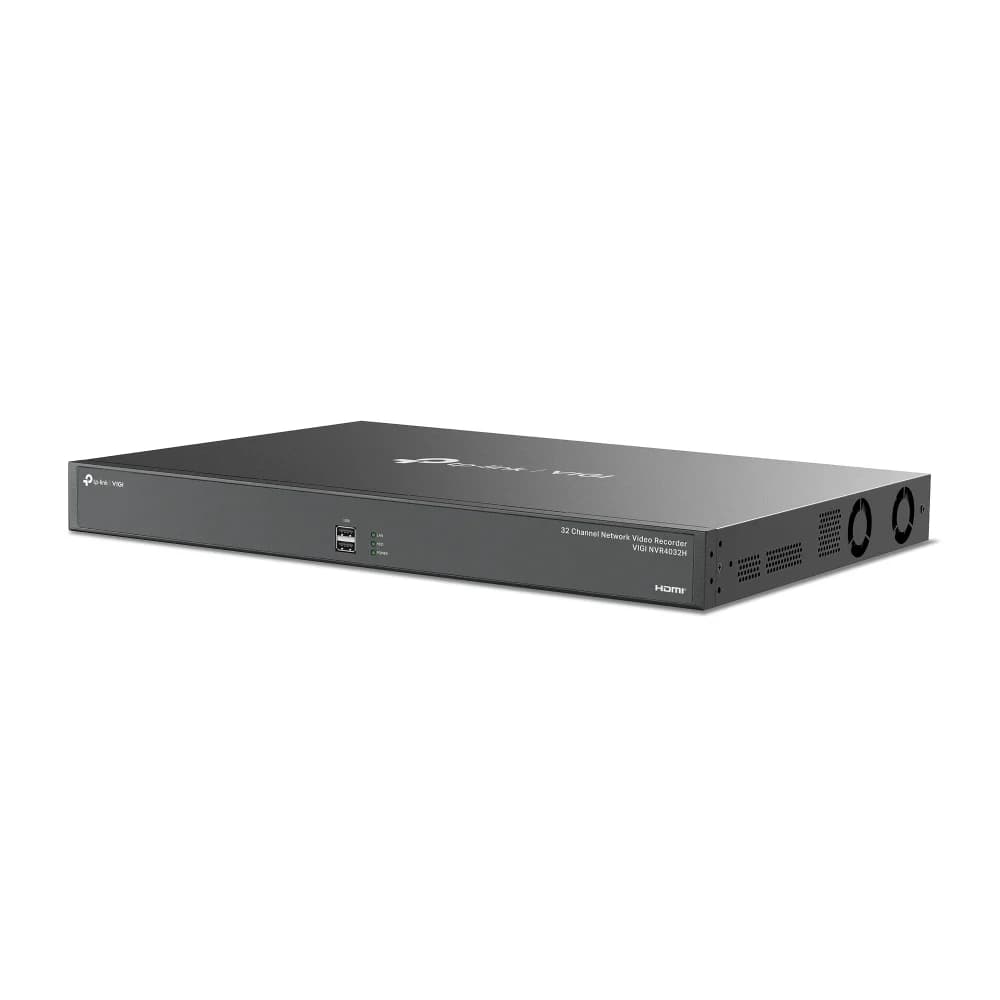

VIGI 32 Channel Network Video Recorder
SKU VIGI NVR4032H
รับประกัน 3 ปีก่อน VAT
รวม VAT 7% ฿9,619.30
| รุ่น | VIGI NVR4032H |
|---|---|
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T, CGI |
| Capacity | Up to 16 TB Capacity for Each HDD* |
| Storage Temperature | -40 ℃ to 70 °C (-40 ℉ to 158 ℉) |
| Storage Humidity | 10%~90% RH Non-Condensing |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Network Interface | 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Serial Interface | 1, RS232 |
| HDMI | 1 |
| Audio Compression | G.711A/G.711U/G.726 |
| Speaker | N/A |
| กำลังไฟ | 1× AC Jack |
| External Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
| Max. Power Consumption | • 5 W (Without Disk)• 48 W (With Disk) |
| ช่องกล้อง IP | 32-Channel |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Multi-View Display | 1/4/6/8/9/16/25/32/36 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| VGA | 1 |
| Alarm In/Out | 16/4 |
| Reset Button | 1 |
| General Alarm | • Motion Detection• Video Tampering• Line-Crossing Detection• Intrusion Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned/Removal Detection• Vehicle Detection• Human DetectionNote: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss• Offline and IP Conflict• Disk Exception• Login Exception• Fan Exception |
| Alarm Linkage | • Recording• White Light Alarm• Buzzer• Log• Audible AlarmNote: The alarm function requires the use of a camera. |
| อุปกรณ์ในกล่อง | • VIGI Network Video Recorder• Mouse• Installation Guide• Power Cord• HDD Power Cables• HDD Data Cables• Terminal Blocks• Mounting Brackets• Screws• Rubber Feet• HDD Screws |
| Working Temperature | NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉） |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 17.3 × 13 × 1.7 in (440 × 330 × 44 mm) |
| Net Weight | 4.0 Kg§ |
| Gross Weight | 5.2 Kg§ |
| Certifications | CE, EAC, UKCA, RCM, Triman, VCCI, FCC, IC, HDMI |
| ฮาร์ดดิสก์ | ไม่รวมฮาร์ดดิสก์ |
| แบนด์วิดท์รับเข้า | 320 Mbps |
| แบนด์วิดท์ส่งออก | 320 Mbps |
| Video Output Mode | HDMI and VGA Independent / Simultaneous Output |
| การบีบอัดวิดีโอ | H.265+/H.265/ H.264+/H.264 |
| Synchronous Playback | 16-Channel† |
| Capability | • 25fps:16-ch@2MP、32-ch@720P• 30fps:4-ch@8MP、6-ch@5MP、8-ch@4MP |
| Record Mode | • Manual Recording• Scheduling Recording• Motion Detection Recording |
| Playback Mode | • Instant Playback• Regular Playback• Tag Playback• Event Playback |
| Backup Mode | • Regular Backup• Video Clip Backup |
| Playback Function | • Play• Pause• Stop• Fast Forward• Fast Backward• Play By Frame• Full Screen• Video Clip• Export Clip• Digital Zoom• Lock Recording• Audio On/Off |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, IPv6, SNMP |
| Mobile Phone Access | Android, iOS |
| eSATA | N/A |
| ช่องฮาร์ดดิสก์ SATA | 4 SATA Interfaces |
| แหล่งจ่ายไฟ | 100-240 VAC, 50 to 60HZ, 1.5A |
| ระยะเวลารับประกัน | 3 ปี |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
