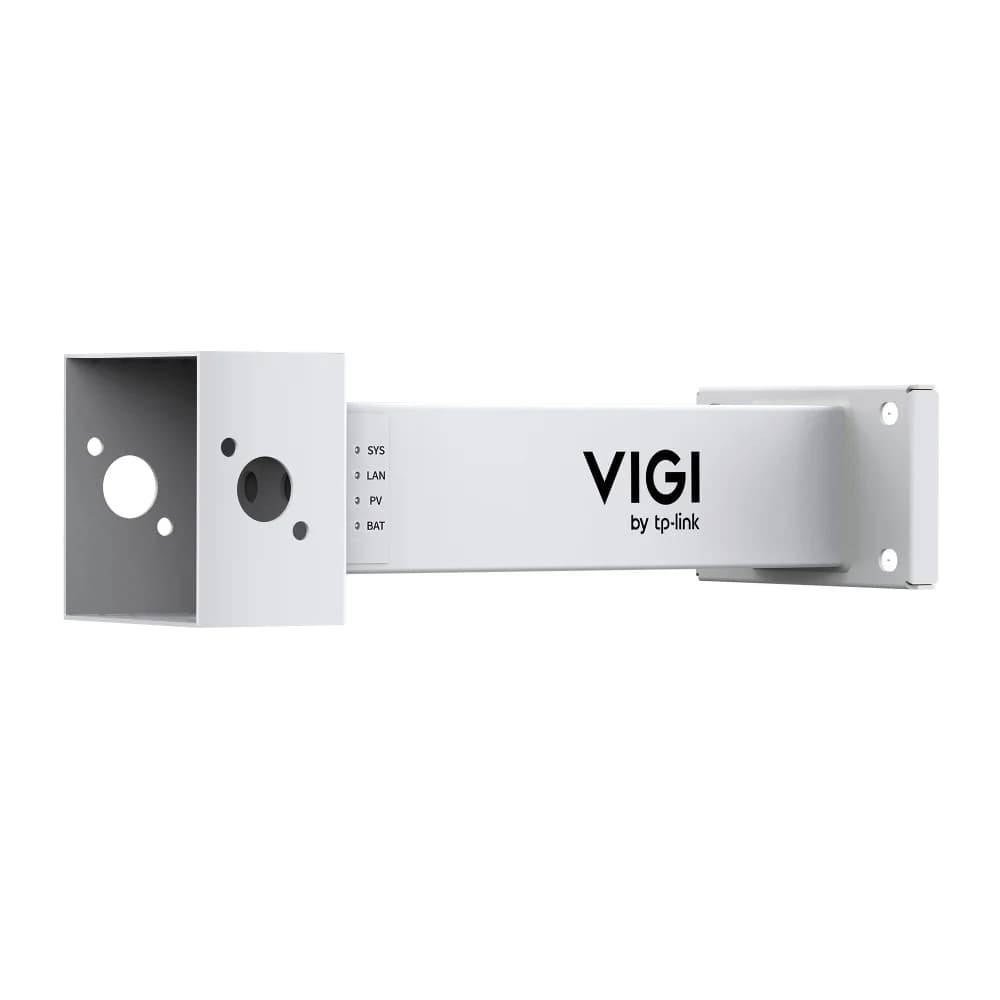

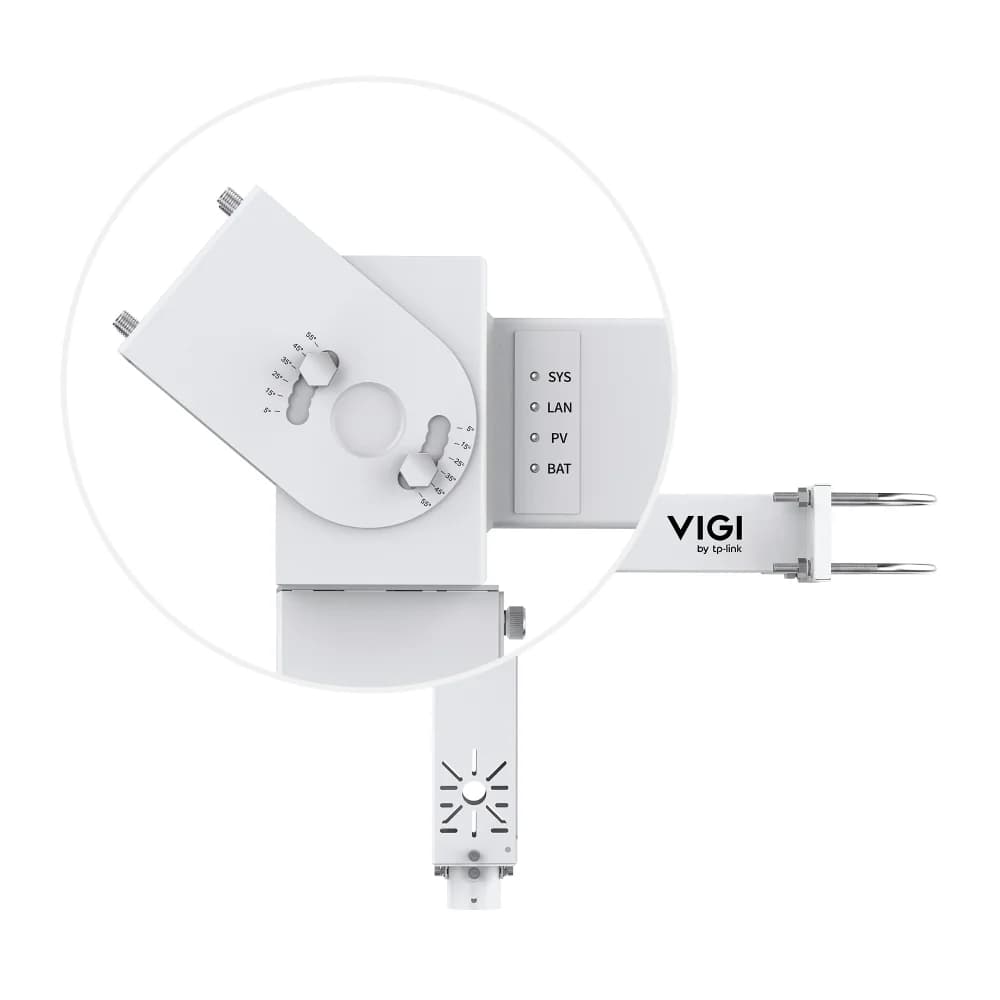

VIGI Solar System Controller
| รุ่น | VIGI PS20 |
|---|---|
| Type | Lithium |
| Local LAN Management | Yes |
| Account Management | Yes |
| ความจุแบตเตอรี่ | Nominal Capacity: 20.4 AhRated Capacity: 19.76 AhNote: Nominal and rated capacities are stated in accordance with the battery cell specifications and standardized labeling practices. This does not affect the product’s battery life or output performance in its intended use scenarios. |
| พอร์ตเชื่อมต่อ | • 1× 10/100 Mbps RJ45• 1× Photovoltaic Panel Connector• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |
| Power Consumption Statistics | Yes |
| Battery Level Display | Yes |
| Displays Real-time Load Status | Yes |
| High and Low Temperature Protection | Yes |
| Overdischarge Protection | Yes |
| Dimension | 9.5 × 2.8 × 2.6 in (242 × 70 × 65 mm) |
| Certification | • CB, PSE (Battery)• CE, KC, FCC, IP66, VCCI, BSMI |
| อุปกรณ์ในกล่อง | • VIGI Solar System Controller• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| Box Dimensions (W X D X H) | 22.4 × 12.2 × 9.0 in (570 × 310 × 230 mm) |
| Weight | Package Weight: 11.2 kg |
| Environment | • Operating Temperature: -30°C to 60°C (-22 °F to 140 °F) (With intelligent auxiliary heating)• Operating Humidity: 10%~90%RH, Non-condensing |
| Intelligent Auxiliary Heat | Yes |
| แรงดันไฟ | 10.8 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 800 cycles△ |
| Charging Condition | • 0°C to 45°C (32 °F to 113 °F)• -30°C to 45°C (-22 °F to 113 °F) (With intelligent auxiliary heating) |
| Discharging Condition | • -20°C to 60°C (-4 °F to 140 °F)• -30°C to 60°C (-22 °F to 140 °F) (With intelligent auxiliary heating) |
| Load Control | Yes |
| Time Zone Selection | Yes |
| Region Selection | N/A |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot | Yes |
| Intelligent Auxiliary Heating Control | -30°C to 5°C (-22 °F to 41 °F) |
| Remote Reset | Yes |
| Remote Message Push | Yes |
| Indicator LED | • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)• Color: Blue |
| Compatible Pole Diameter | Ø3.1-4.7 in (Ø80-120 mm) |
| ระยะเวลารับประกัน | 3 ปี |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
