- Dimensions
- 98 x 98 x 30 mm (3.6 x 3.6 x 1.2″)
- Weight
- 302 g (10.7 oz)
- Enclosure material
- Polycarbonate

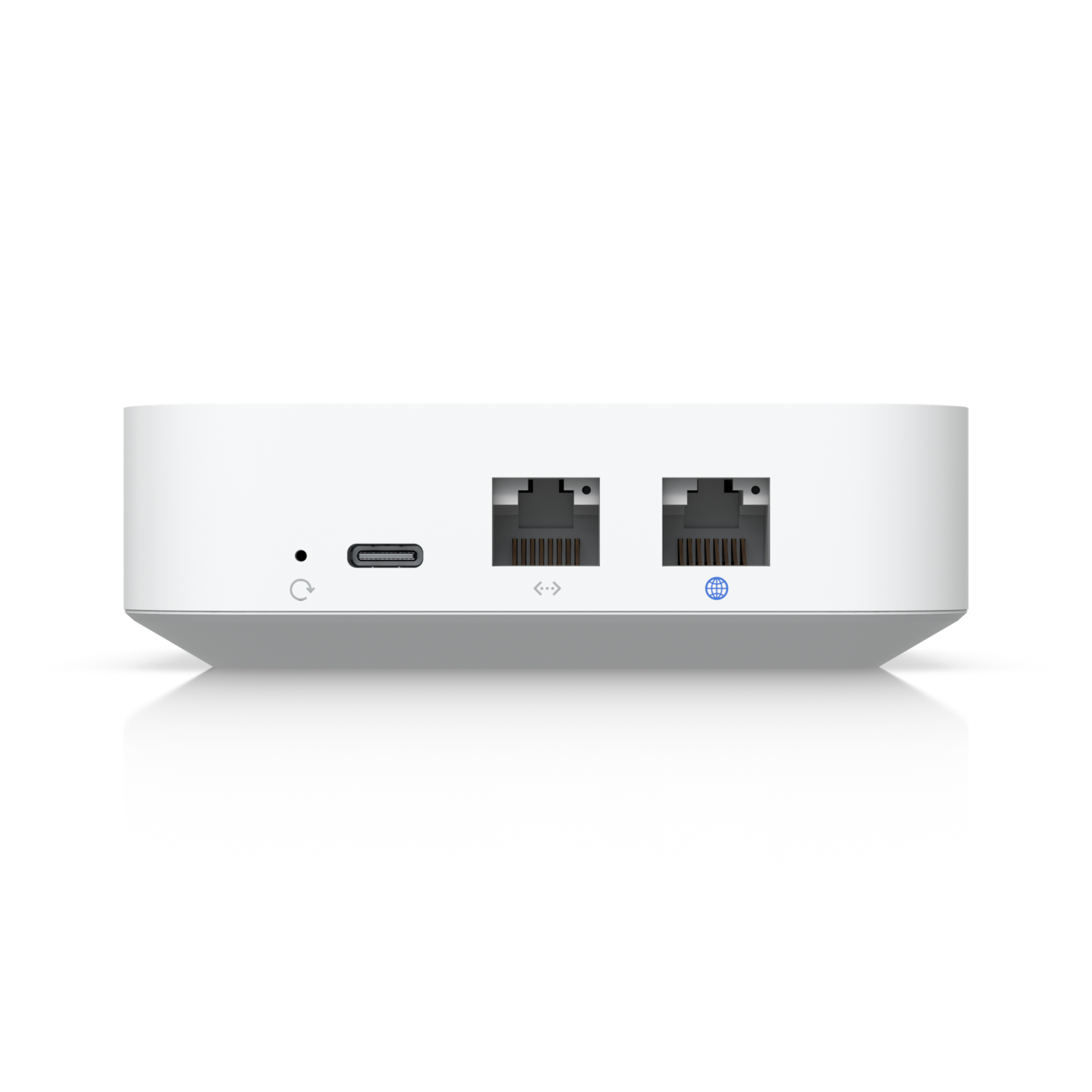

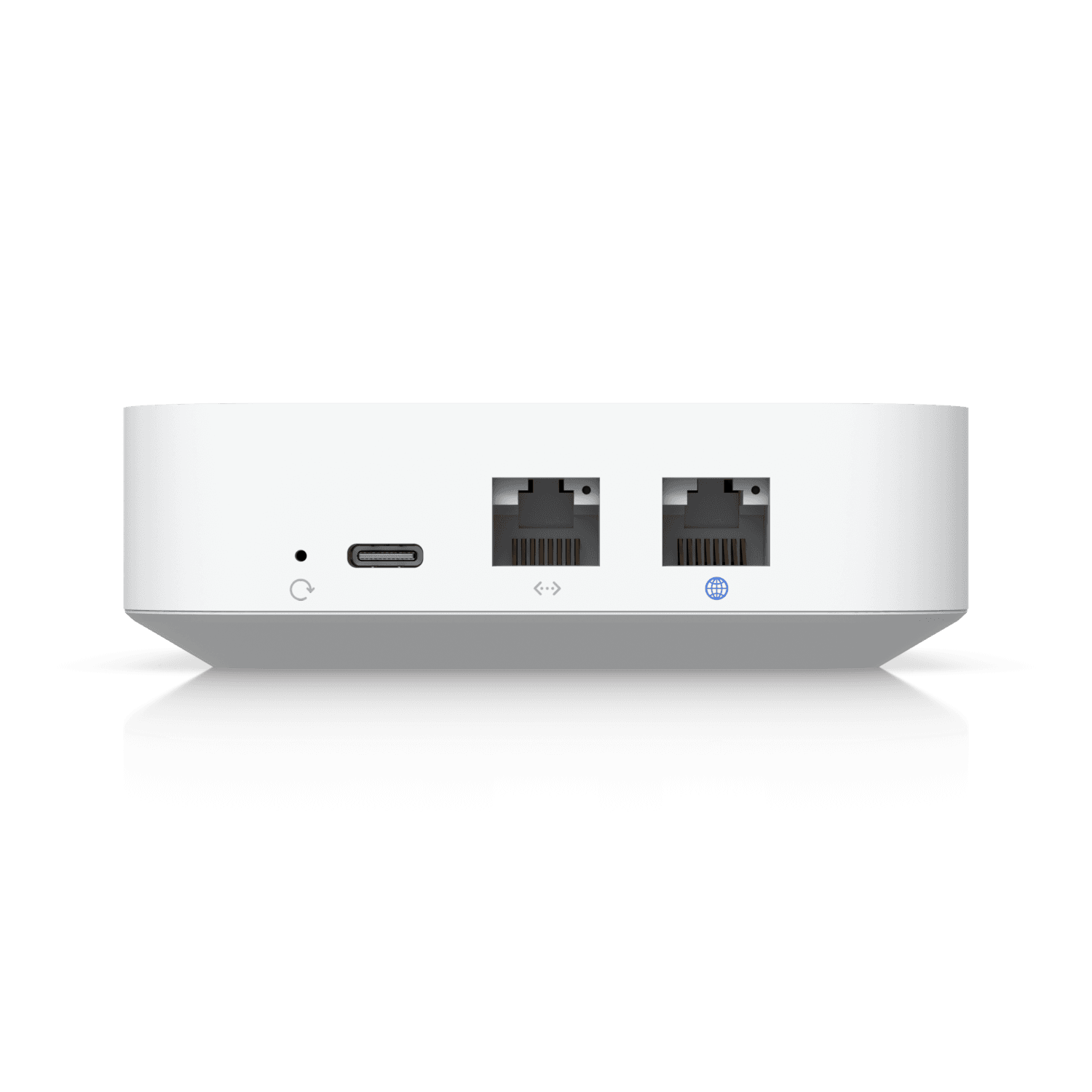

- Networking interface
- WAN: (1) GbE RJ45 port
- LAN: (1) GbE RJ45 port
- Power method
- USB type C (5V DC/3A)
- Max. power consumption
- 10W
- Max. TX power
- 2.4 GHz 22 dBm
- 5 GHz 25 dBm
- MIMO
- 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
- 5 GHz 2 x 2 (DL/UL MU-MIMO)
- Throughput rate
- 2.4 GHz 573.5 Mbps
- 5 GHz 2.4 Gbps
- Antenna gain
- 2.4 GHz 4 dBi
- 5 GHz 5.15 dBi
- Antennas
- (2) Internal 2.4G/5G WiFi dual-band antenna
- (1) Internal 2.4G single-band BT antenna

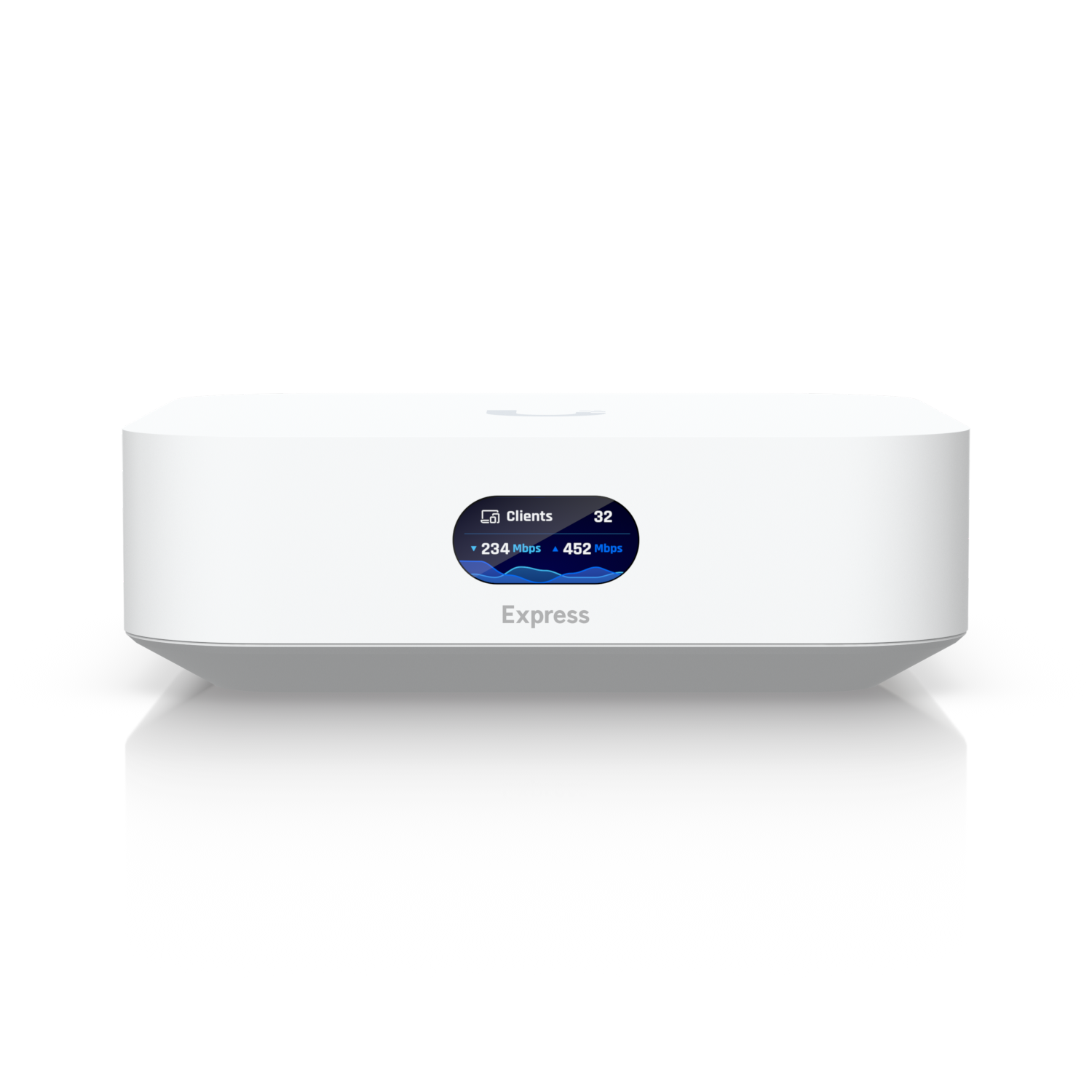

- LCM display
- 0.96″ status display
- Button
- Factory reset
- Ambient operating temperature
- -10 to 45° C (14 to 113° F)
- Ambient operating humidity
- 5 to 95% noncondensing
- Certifications
- CE, FCC, IC
- Performance
- Internet quality and outage reporting
- Next-generation security
- Application-aware firewall rules
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- Full stateful firewall
- Advanced networking
- License-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- One-click Teleport VPN
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy
- IPv6 ISP support
- WiFi standards
- 802.11a/b/g/n/ac/ax
- Wireless security
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID
- Console mode 3 per band
- Standard AP 8 per band
- VLAN
- 802.1Q
- Advanced QoS
- Per-user rate limiting
- Guest traffic isolation
- Supported
- Concurrent clients
- 50+ (ประสิทธิภาพอาจลดลงเมื่อเปิดฟีเจอร์ gateway ขั้นสูง เช่น Traffic Identification)
- 802.11ax (WiFi 6)
- 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n (WiFi 4)
- 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
- UniFi Network
- Version 8.0 and later
- รหัสสินค้า (SKU)
- UQT-UX
- หมวดหมู่
- แอคเซสพอยต์ & Wi-Fi
- ประเภทการจัดส่ง
- จัดส่งสินค้าจริง
