- Interface
- • 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
- 1× 1GE SFP WAN/LAN Ports
- 8× 1GE RJ45 WAN/LAN Ports
- 1× RJ45 Console Ports
- 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
- Button
- Reset Button
- Power Supply

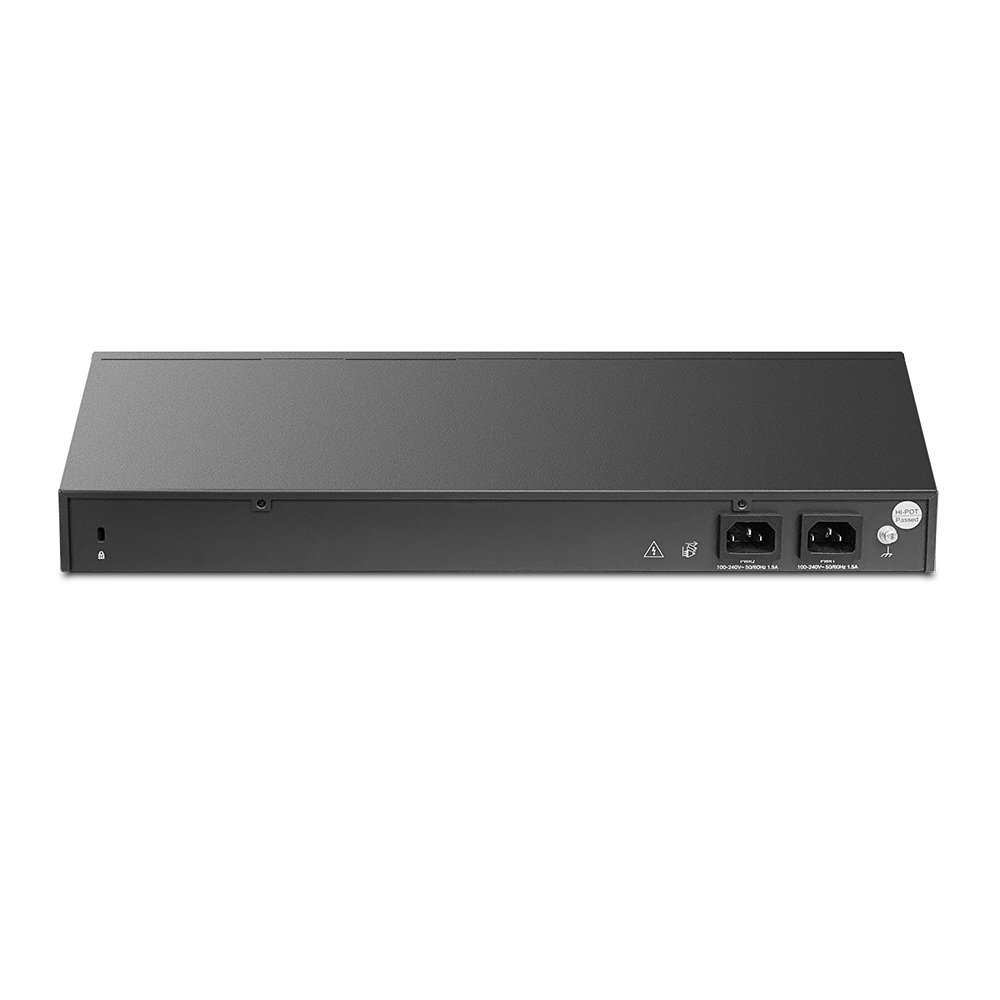

- Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
- Flash
- 4MB SPI NOR + 256 MB NAND
- DRAM
- 4 GB DDR4
- LED
- PWR, SYS, WAN, LAN, USB, FAN
- Dimensions ( W x D x H )
- 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
- Max Power Consumption
- • 26.36 W (with USB 3.0 connected)
- 19.12 W (without USB 3.0 connected)
- Concurrent Session
- 2,300,000
- New Sessions /Second
- 20,000
- NAT (Static IP)
- • Upload: 9445.82 Mbps
- Download
- 9449.26 Mbps
- NAT(DHCP)
- • Upload: 9426.83 Mbps
- Download
- 9426.20 Mbps
- NAT(PPPoE)
- • Upload: 9413.96 Mbps
- Download
- 9102.01 Mbps
- NAT (L2TP)
- • Upload: 4230.62 Mbps
- Download
- 4169.53 Mbps
- NAT (PPTP)
- • Upload: 3933.86 Mbps
- Download
- 3821.97 Mbps
- 64 Byte Packet Forwarding Rate
- • Upload: 1080 Mbps
- Download
- 1030 Mbps
- IPsec VPN Throughput
- • SHA1-AES256: 2140.45 Mbps
- SHA2-AES256
- 2080.20 Mbps
- OpenVPN
- 1665.64 Mbps
- L2TP VPN Throughput
- • Unencrypted: 5013.50 Mbps
- Encrypted
- 2274.74 Mbps
- SSL VPN Throughput
- 1511.10 Mbps
- WAN Connection Type
- • Static/Dynamic IP
- PPPoE
- PPTP
- L2TP
- 6to4 Tunnel
- Pass-Through
- Mobile Broadband
- 4G/3G modem for backup via USB port
- MAC Clone
- Modify WAN/LAN MAC Address* 4
- DHCP
- • DHCP Server/Client
- DHCP Address Reservation
- Multi-net DHCP
- Multi-IP Interfaces
- IPv6
- WAN Connection
- VLAN
- 802.1Q VLAN
- IPTV
- IGMP v2/v3 Proxy
- ACL
- IP/Port/Protocol/Domain Name Filtering
- Advanced Routing
- • Static Routing
- Policy Routing
- Bandwidth Control
- • IP/Port-based Bandwidth Control
- Guarantee & Limited Bandwidth
- Load Balance
- • Intelligent Load Balance
- Application Optimized Routing
- Link Backup (Timing* 5 , Failover)
- Online Detection
- NAT
- • One-to-One NAT* 5
- Multi-Net NAT
- Virtual Server
- Port Triggering* 5
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
- Security
- • SPI Firewall
- VPN Passthrough
- FTP/H.323/PPTP/SIP/IPsec ALG
- DoS Defence, Ping of Death
- Local Management
- Session Limit
- IP-based Session Limit
- SSL VPN
- • SSL VPN Server
- SSL VPN Client
- 500 SSL VPN Tunnels
- IPsec VPN
- • 300 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
- IKE v1/v2
- MD5, SHA1 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
- PPTP VPN
- • PPTP VPN Server
- PPTP VPN Client (32)* 6
- 300 Tunnels (Shared with L2TP)
- PPTP with MPPE Encryption
- L2TP VPN
- • L2TP VPN Server
- L2TP VPN Client (32)* 6
- 300 Tunnels (Shared with PPTP)
- L2TP over IPSec
- OpenVPN
- • OpenVPN Server
- OpenVPN Client (10)* 6
- 110 OpenVPN Tunnels
- Filtering
- • WEB Group Filtering* 5
- URL Filtering
- Web Security* 5
- ARP Inspection
- • Sending GARP Packets* 5
- ARP Scanning* 5
- IP-MAC Binding* 5
- Attack Defense
- • TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
- Access Control
- Source/Destination IP Based Access Control
- Web Authentication
- • No Authentication
- Simple Password* 2
- Hotspot（Local User / Voucher* 2 / SMS* 2 / Radius* 2 ）
- External Radius Sever
- External Portal Sever* 2
- Facebook Check-In* 2
- Instagram Follow* 2
- Omada App
- Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management
- • Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
- Cloud Access
- Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Service
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
- Maintenance
- • Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)* 5
- NTP Synchronize* 5
- Syslog Support
- Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
- Management Features
- • Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
- Certification
- CE, FCC, RoHS
- Package Contents

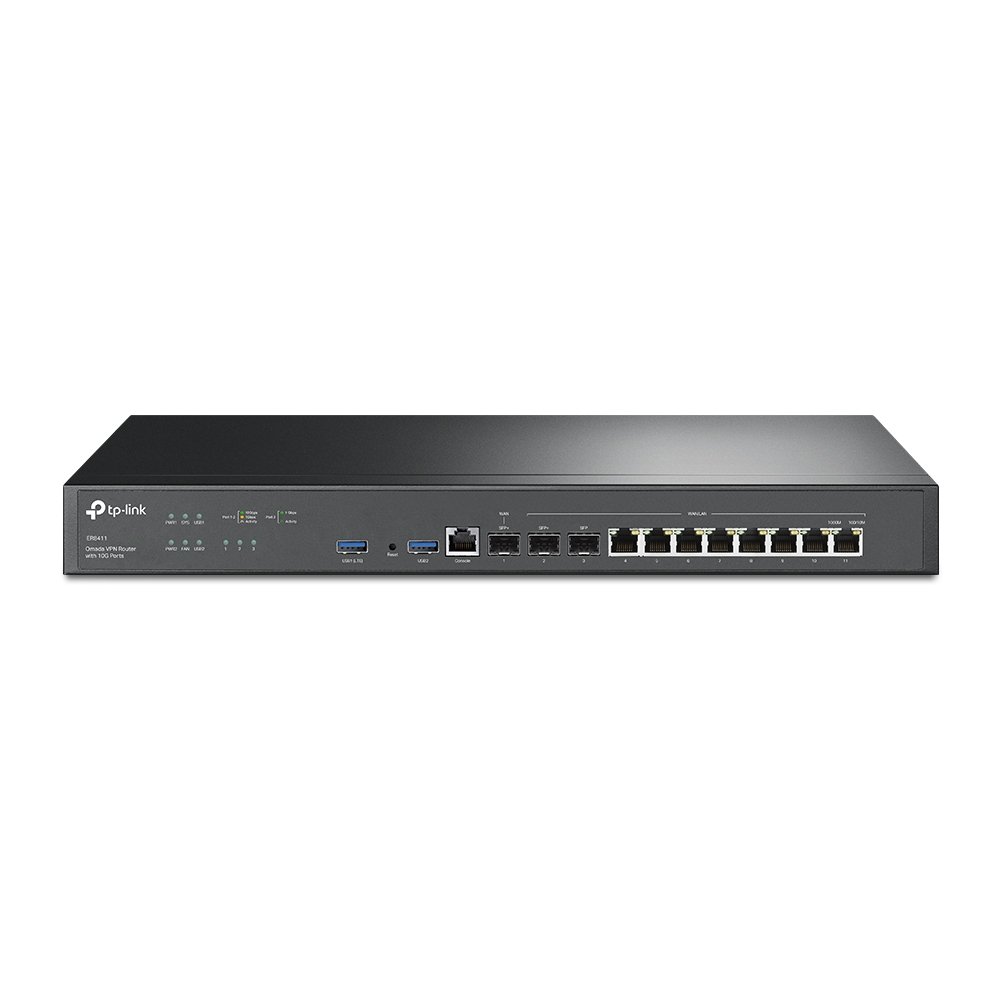

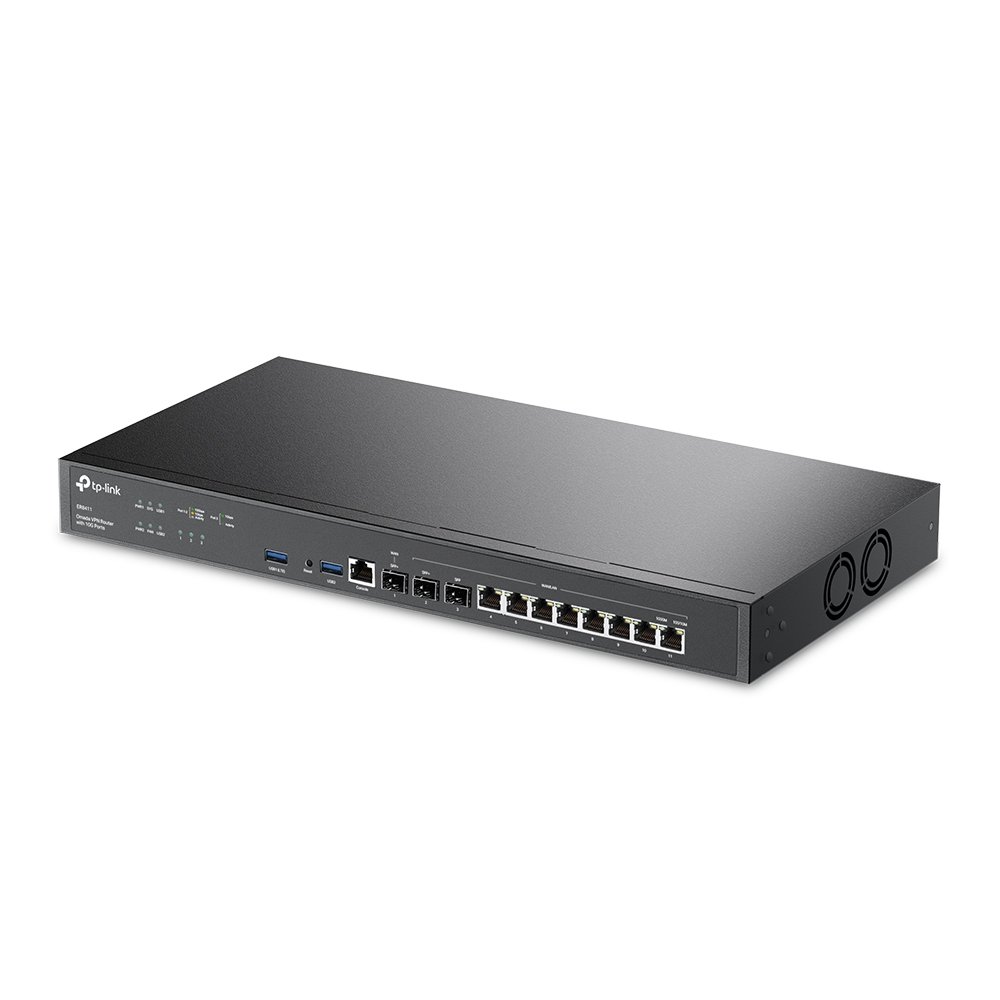

- • Omada 10G Multi-WAN Security Gateway ER8411
- Power Cord
- Rack-Mount Kit
- Quick Installation Guide
- System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
- Environment
- • Operating Temperature: 0–40 ℃ (32–104 ℉);
- Storage Temperature
- -40–70 ℃ (-40–158 ℉)
- Operating Humidity
- 10–90% RH non-condensing
- Storage Humidity
- 5–90% RH non-condensing
