- Dimensions
- 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″)
- Weight
- 520 g (1.1 lb)
- Enclosure material
- Polycarbonate
- Processor
- Quad-core ARM® Cortex®-A53 at 1.5 GHz
- System memory
- 3 GB DDR4
- On-board storage
- 16 GB eMMC

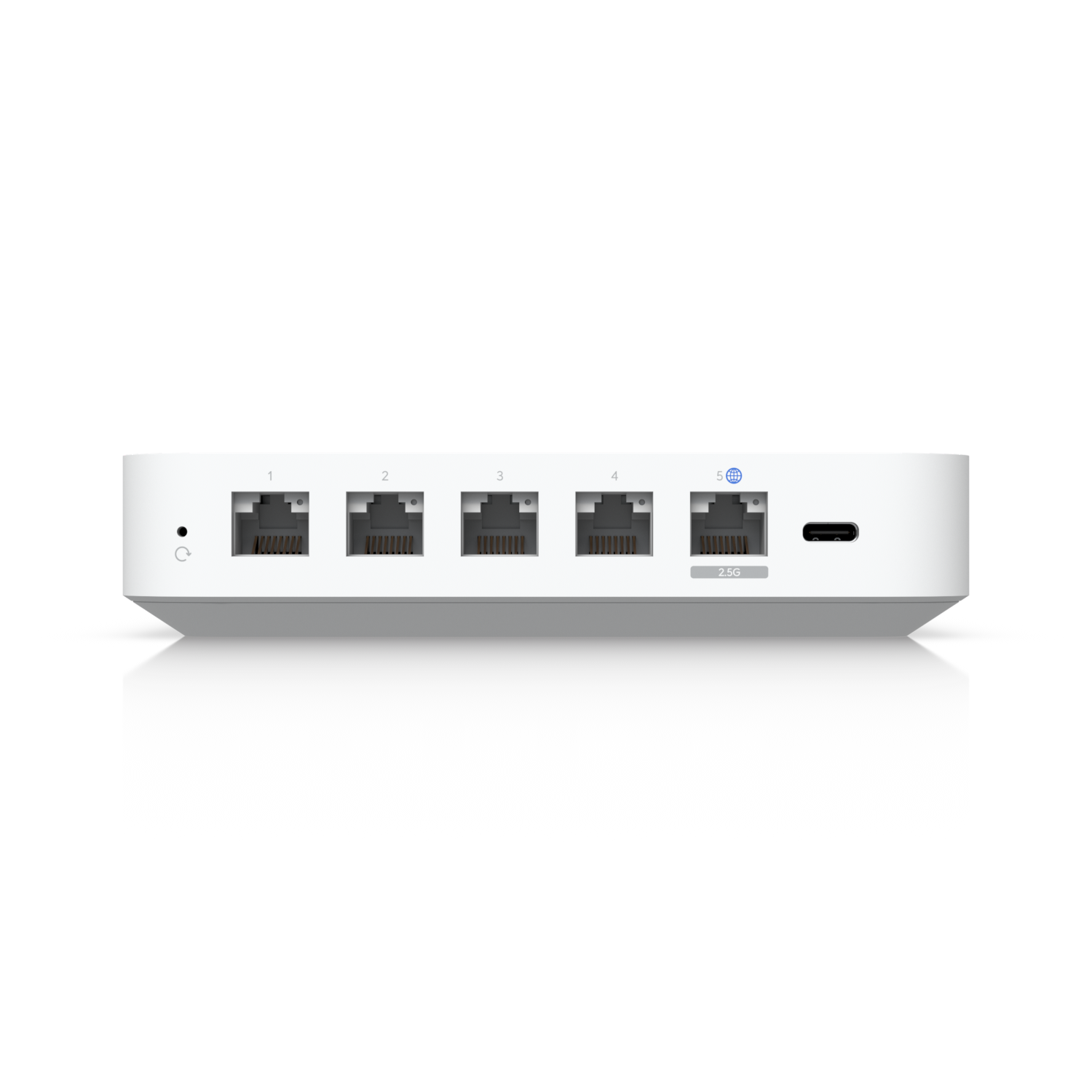

- Networking interface
- LAN:
- (4) GbE RJ45 portsWAN
- (1) 1/2.5 GbE RJ45 port
- IDS/IPS throughput
- 1 Gbps*
- *Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
- Power method
- USB type C (5V DC/3A)
- Supported voltage range
- 100–240V AC
- Max. power consumption
- 6.2W
- LCM display
- 0.96″ status display
- Button
- Factory reset
- Ambient operating temperature
- -10 to 40° C (14 to 104° F)
- Ambient operating humidity
- 5 to 95% noncondensing
- Certifications
- CE, FCC, IC
- Performance
- Redundant WAN with failover and load balancing
- WiFi QoS with UniFi APs
- Application, domain, and country-based QoS
- Application and device type identification
- Additional internet failover with LTE Backup
- Internet quality and outage reporting
- Next-generation security
- Application-aware firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- Full stateful firewall
- Advanced networking
- License-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- One-click Teleport and Identity VPN
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy
- IPv6 ISP support
- Ethernet
- Green: link/activity
- Mobile app
- UniFi iOS™: Version 10.12.0 and later
- UniFi Android™
- Version 10.11.2 and later
- รหัสสินค้า (SKU)
- UQT-UCG-ULTRA
- หมวดหมู่
- แอคเซสพอยต์ & Wi-Fi
- ประเภทการจัดส่ง
- จัดส่งสินค้าจริง
