- Standards and Protocols
- • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

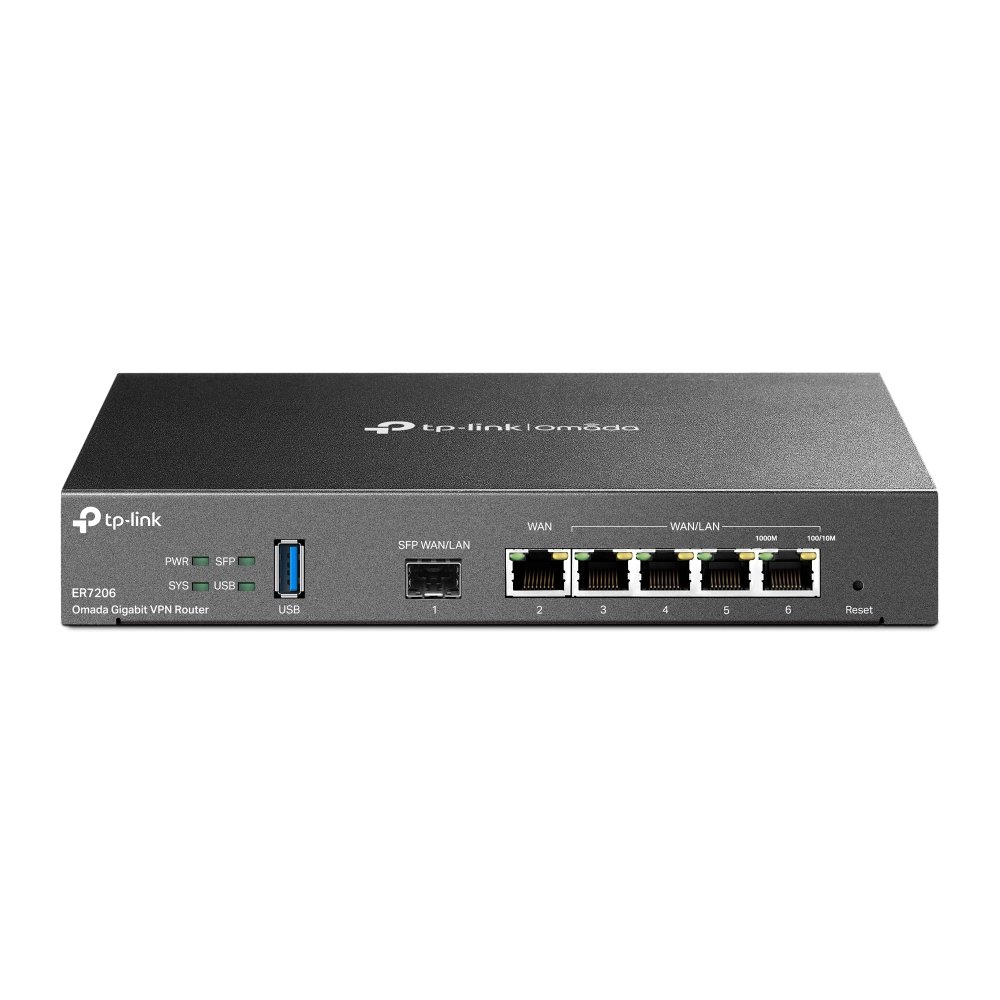

- Interface
- • 1 Gigabit SFP WAN/LAN Port
- 1 Gigabit WAN Port
- 4 Gigabit LAN/WAN Ports
- 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
- Network Media
- • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
- 100BASE-TX
- UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
- 1000BASE-T
- UTP category 5, 5e, 6 cable (Max 100 m)
- Fan Quantity
- Fanless
- Button
- Reset Button

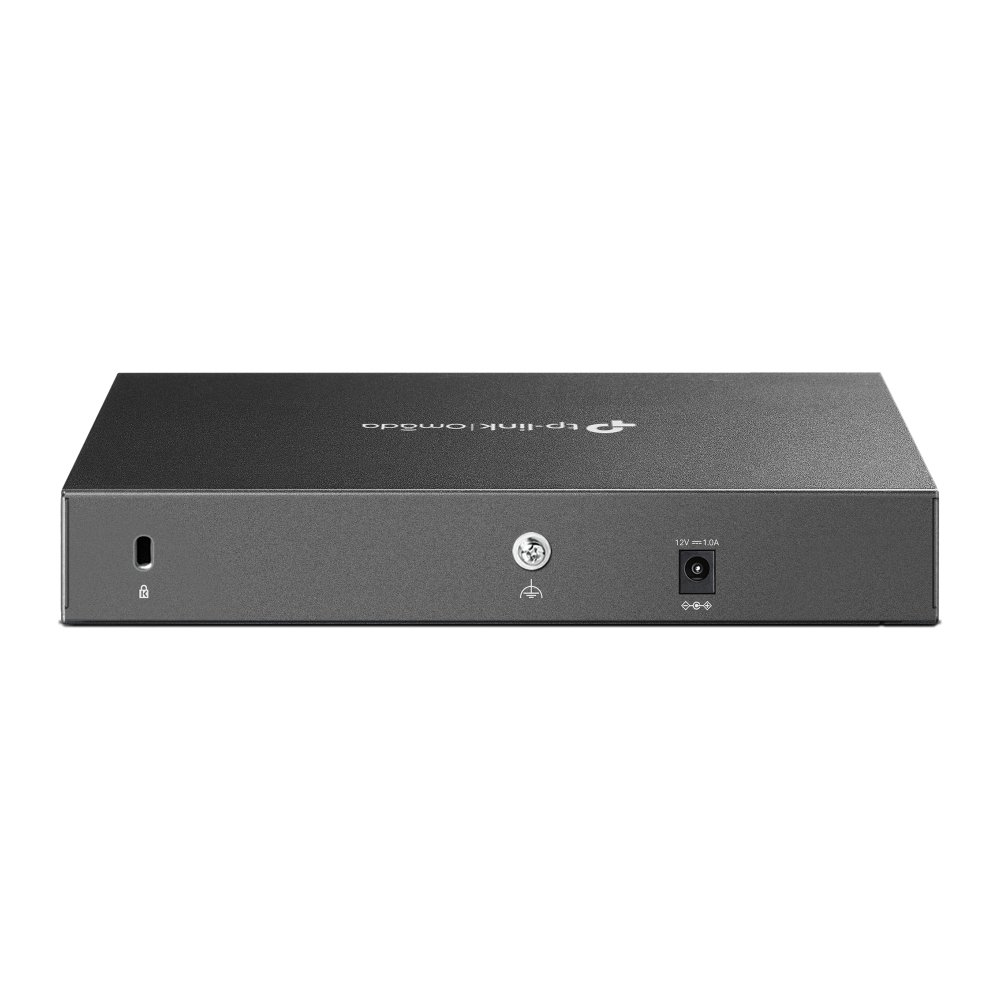

- Power Supply
- 12V DC/ 1A Power Adapter
- PoE Budget
- –
- Flash
- 128 MB NAND
- DRAM
- 512 MB DDR4
- LED
- PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
- Dimensions ( W x D x H )
- 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
- Protection
- 4 kV surge protection
- Enclosure
- Steel
- Mounting
- Desktop/ Wall-Mounting
- Max Power Consumption
- • 7.5 W (with USB 3.0 connected)
- 4.5 W (without USB 3.0 connected)
- Concurrent Session
- 150,000
- New Sessions /Second
- 5,300
- NAT (Static IP)
- 945.3 Mbps / 940.5 Mbps
- NAT(DHCP)
- 939.6 Mbps / 940.9 Mbps
- NAT(PPPoE)
- 943.6 Mbps / 940.9 Mbps
- NAT (L2TP)
- 880.1 Mbps / 859.0 Mbps
- NAT (PPTP)
- 855.0 Mbps / 907.2 Mbps
- 64 Byte Packet Forwarding Rate
- –
- IPsec VPN Throughput
- • ESP-SHA1-AES256: 617.1 Mbps
- ESP-SHA256-AES256
- 592.8 Mbps
- ESP-SHA384-AES256
- 592.4 Mbps
- ESP-SHA512-AES256
- 604.5 Mbps
- OpenVPN
- 139.1 Mbps
- L2TP VPN Throughput
- • Unencrypted: 977.4 Mbps
- Encrypted
- 334.6 Mbps
- PPTP VPN Throughput
- • Unencrypted: 1064.1 Mbps
- Encrypted
- 206.8 Mbps
- SSL VPN Throughput
- 131.6 Mbps
- 66 Byte Packet forwarding rate
- 1,453,489 pps / 1,453,488 pps
- 1,518 Byte Packet forwarding rate
- 81,279 pps / 81,275 pps
- WAN Connection Type
- • Static IP
- Dynamic IP
- PPPoE(supports MRU Configuration)
- PPTP
- L2TP
- MAC Clone
- Modify WAN/LAN MAC Address †
- DHCP
- • DHCP Server
- DHCPv6 PD Server (only in Standalone Mode)
- DHCP Options Customization
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
- IPv6
- StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
- VLAN
- 802.1Q VLAN
- IPTV
- IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
- ACL
- IP/Port/Protocol/Domain Name Filtering
- Advanced Routing
- • Static Routing
- Policy Routing
- RIP §
- OSPF §
- Bandwidth Control
- IP-based Bandwidth Control
- Load Balance
- • Intelligent Load Balance
- Application Optimized Routing
- Link Backup (Timing, Failover)
- Online Detection
- NAT
- • One-to-One NAT
- Multi-Net NAT
- Virtual Server
- Port Triggering §
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
- Session Limit
- IP-based Session Limit
- SSL VPN
- 50 Tunnels
- IPsec VPN
- • 100 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IPsec Failover
- IKE v1/v2
- MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
- PPTP VPN
- • PPTP VPN Server
- PPTP VPN Client (10) ‡
- 50 Tunnels
- PPTP with MPPE Encryption
- L2TP VPN
- • L2TP VPN Server
- L2TP VPN Client (10) ‡
- 50 Tunnels
- L2TP over IPSec
- OpenVPN
- • OpenVPN Server
- OpenVPN Client (5) ‡
- 55 OpenVPN Tunnels
- “Certificate + Account” Mode
- Full Mode
- Filtering
- • WEB Group Filtering §
- URL Filtering
- Web Security §
- ARP Inspection
- • Sending GARP Packets §
- ARP Scanning §
- IP-MAC Binding
- Attack Defense
- • TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
- Access Control
- Source/Destination IP Based Access Control
- Web Authentication
- • No Authentication
- Simple Password*
- Hotspot(Local User /Voucher * / SMS * /Radius * )
- External Radius Sever
- External Portal Sever *
- LDAP §
- Omada App
- Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management
- • Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access
- Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Service
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
- Maintenance
- • Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute) §
- NTP Synchronize §
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
- Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
- Management Features
- • Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
- Certification
- CE, FCC, RoHS
- Package Contents
- • ER7206(TL-ER7206)
- Power Cord
- Quick Installation Guide
- System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
- Environment
- • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature
- -40 °C to 70 °C (-40 °F to 158 °F)
- Operating Humidity
- 10% to 90% non-condensing
- Storage Humidity
- 5% to 90% non-condensing
