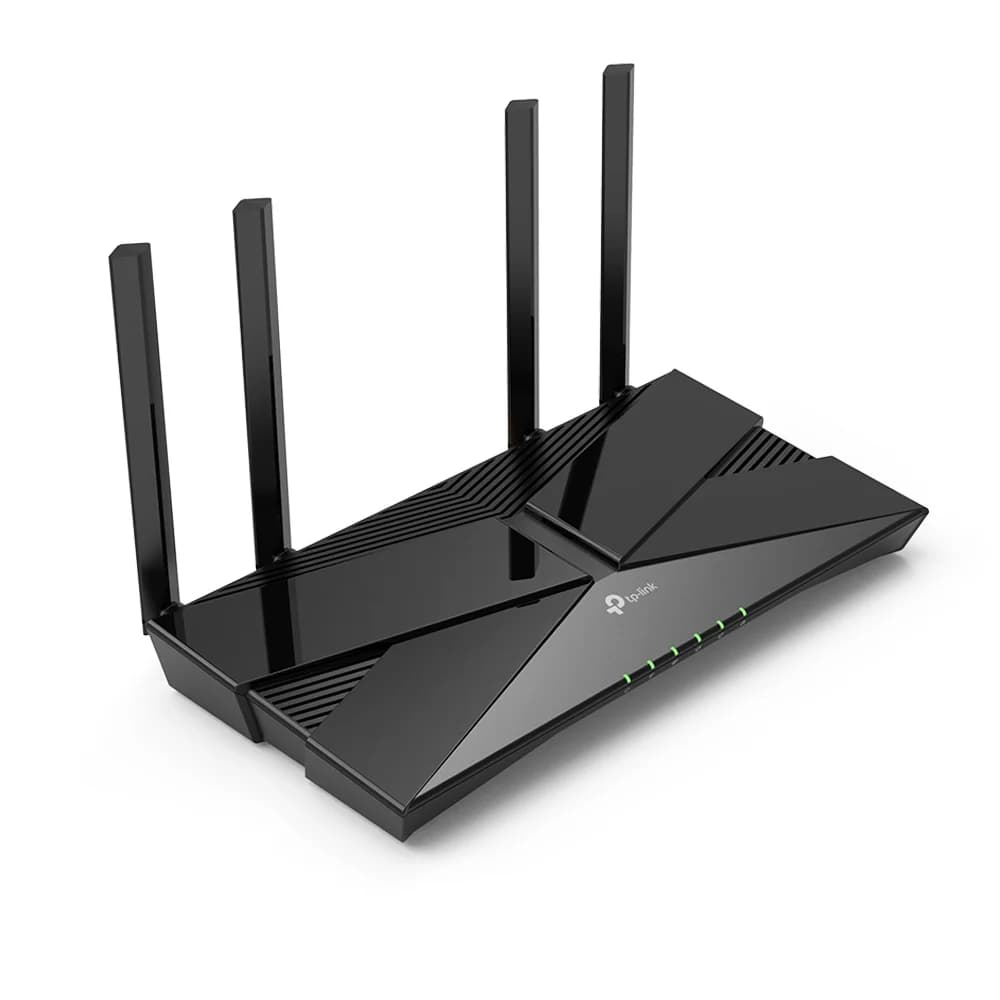

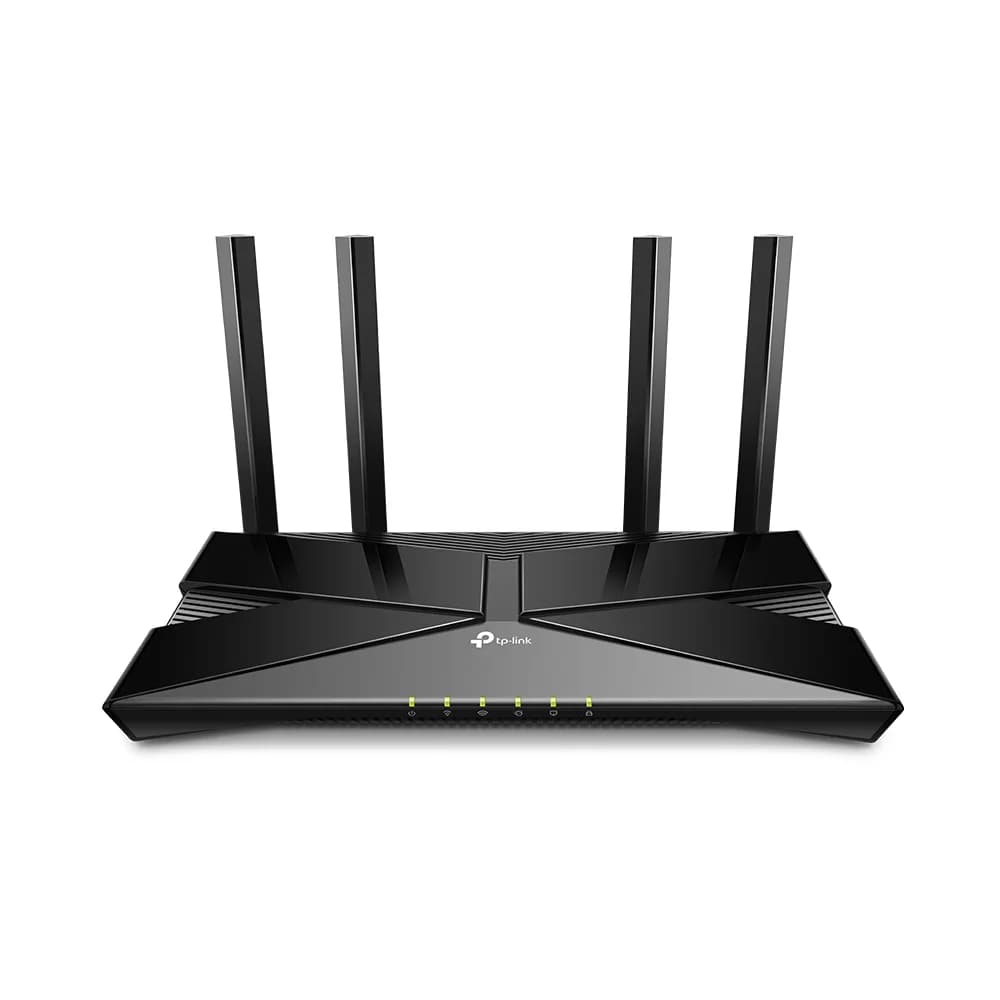

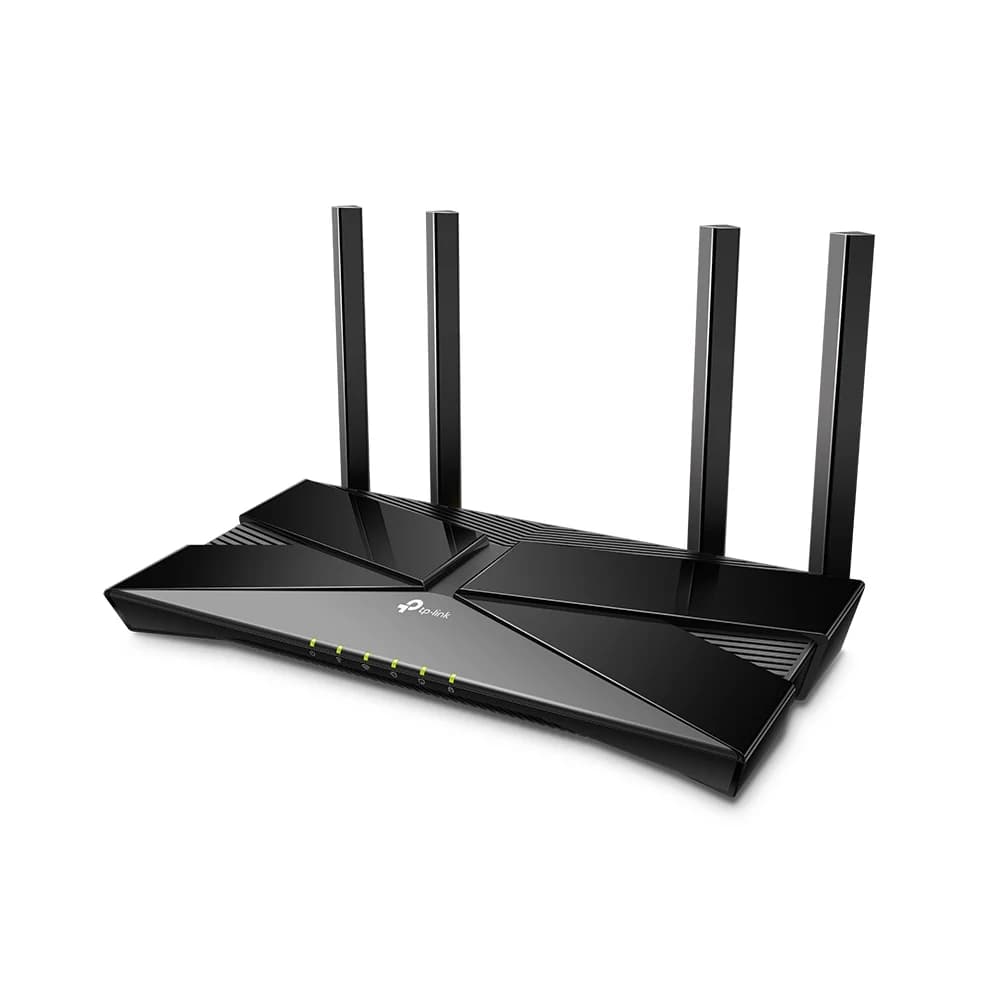

Name: TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router
Brand: TP-Link

รายละเอียดสินค้า

รุ่น	Archer AX23
Management Features	Tether AppWebpageCheck Web Emulator>
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)
WiFi Capacity	HighDual-BandAllocate devices to different bands for optimal performanceAirtime FairnessImproves network efficiency by limiting excessive occupation4 StreamsConnect your devices to more bandwidth
NAT Forwarding	Port ForwardingPort TriggeringDMZUPnP
ความเร็ว Wi-Fi	AX18005 GHz: 1201 Mbps (802.11ax)2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	2-3 Bedroom Houses4× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range
VPN Client	• OpenVPN Client• PPTP VPN Client• WireGuard VPN Client
WiFi Encryption	WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x)
WiFi Transmission Power	CE: <20dBm(2.4 GHz)<23dBm(5.15 GHz~5.25 GHz)FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity	EU Version5G11a 6Mbps: -96dbm 11a 54Mbps:-75dbm11ac VHT20_MCS0: -95dbm11ac VHT20_MCS8: -71dbm11ac VHT40_MCS0: -92dbm11ac VHT40_MCS9: -66dbm11ac VHT80_MCS0: -89dbm11ac VHT80_MCS9:-62dbm11ax HE20_MCS0:-95dbm11ax HE20_MCS11: -64dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G11g 6Mbps:-96dbm11g 54Mbps:-75dbm11n HT20_MCS0:-95dbm 11n HT20_MCS7:-75dbm11n HT40_MCS0:-92dbm 11n HT40_MCS7: -72dbm11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbmUS Version5G11a 6Mbps: -96dbm11a 54Mbps:-75dbm11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -71dbm11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -66dbm11ac VHT80_MCS0: -89dbm 11ac VHT40_MCS9:-62dbm11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -64dbm11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G11g 6Mbps:-96dbm 11a 54Mbps:-75dbm11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbm
Network Security	SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway
Guest Network	1× 5 GHz Guest Network1× 2.4 GHz Guest Network

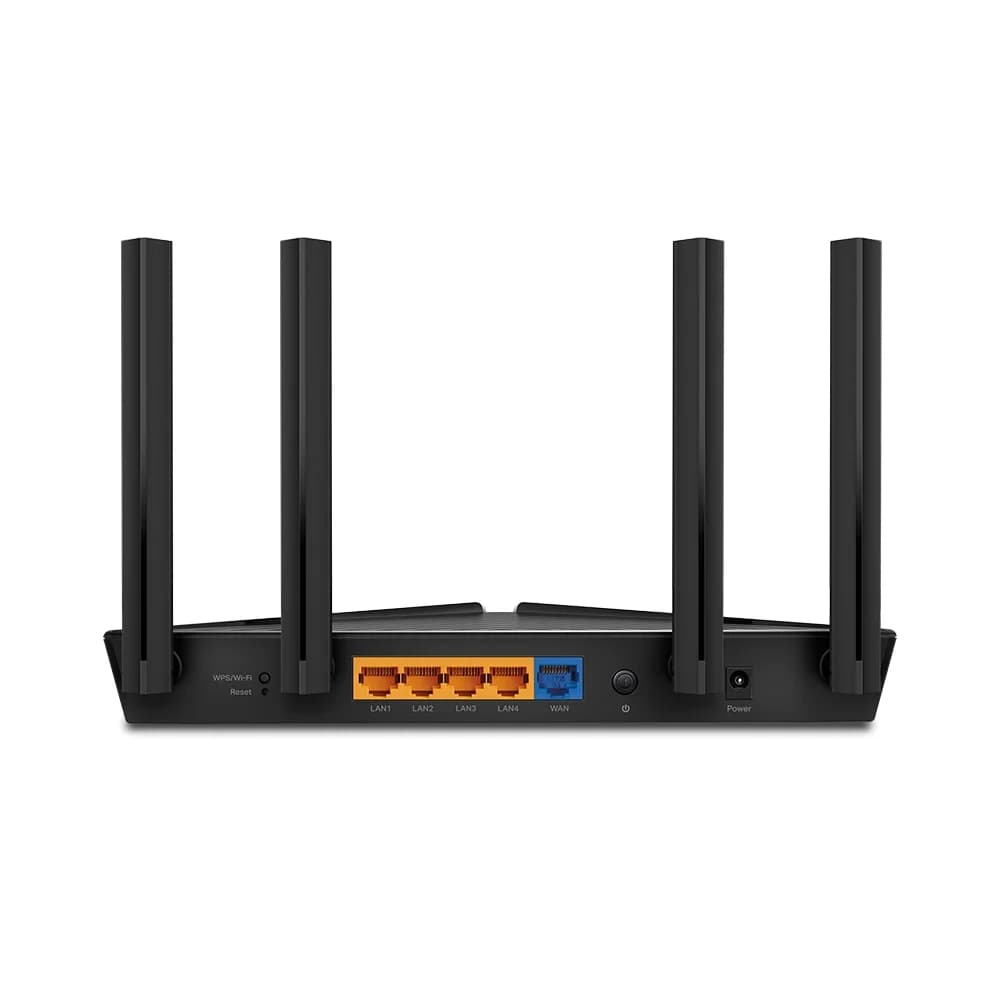

พอร์ต Ethernet	1× Gigabit WAN Port4× Gigabit LAN Ports
Network Services Enabled by Default	Web Server \| Manage and configure device through web (HTTP/HTTPS) \| • Port: 80/443 Protocol: TCP \| DNS \| DNS \| • Port: 53 Protocol: TCP & UDP \| DHCP Server \| IP address assignment (DHCP) \| • Port: 67 Protocol: UDP \| App management \| Manage and configure device through app \| • Port: 20001 Protocol: TCP \| • Port: 30001 Protocol: TCP \| • Port: 20002 Protocol: UDP
กำลังไฟ	12 V ⎓ 1 A
Buttons	WPS/Wi-Fi ButtonPower On/Off ButtonReset Button
Certifications	FCC, CE
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Dimensions (W×D×H)	10.2 × 5.3 ×1.5 in(260.2 × 135.0 × 38.6 mm)
อุปกรณ์ในกล่อง	Wi-Fi Router Archer AX23Power AdapterRJ45 Ethernet CableQuick Installation Guide
Standards and Protocols	Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz
Working Modes	Router ModeAccess Point Mode
VPN Server	• OpenVPN Server• PPTP VPN Server• WireGuard VPN Server
Protocols	IPv4IPv6
EasyMesh	Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Learn More>
Parental Controls	URL FilteringTime Controls
WAN Types	Dynamic IPStatic IPPPPoEPPTPL2TP
Quality of Service	QoS by Device
Cloud Service	OTA Firmware Upgrade \| TP-Link ID \| DDNS
IPTV	IGMP ProxyIGMP SnoopingBridgeTag VLAN
DHCP	Address ReservationDHCP Client ListServer
DDNS	TP-LinkNO-IPDynDNS
ระยะเวลารับประกัน	ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต)

รายละเอียดสินค้า

รุ่น	Archer AX23
Management Features	Tether AppWebpageCheck Web Emulator>
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)
WiFi Capacity	HighDual-BandAllocate devices to different bands for optimal performanceAirtime FairnessImproves network efficiency by limiting excessive occupation4 StreamsConnect your devices to more bandwidth
NAT Forwarding	Port ForwardingPort TriggeringDMZUPnP
ความเร็ว Wi-Fi	AX18005 GHz: 1201 Mbps (802.11ax)2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	2-3 Bedroom Houses4× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range
VPN Client	• OpenVPN Client• PPTP VPN Client• WireGuard VPN Client
WiFi Encryption	WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x)
WiFi Transmission Power	CE: <20dBm(2.4 GHz)<23dBm(5.15 GHz~5.25 GHz)FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity	EU Version5G11a 6Mbps: -96dbm 11a 54Mbps:-75dbm11ac VHT20_MCS0: -95dbm11ac VHT20_MCS8: -71dbm11ac VHT40_MCS0: -92dbm11ac VHT40_MCS9: -66dbm11ac VHT80_MCS0: -89dbm11ac VHT80_MCS9:-62dbm11ax HE20_MCS0:-95dbm11ax HE20_MCS11: -64dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G11g 6Mbps:-96dbm11g 54Mbps:-75dbm11n HT20_MCS0:-95dbm 11n HT20_MCS7:-75dbm11n HT40_MCS0:-92dbm 11n HT40_MCS7: -72dbm11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbmUS Version5G11a 6Mbps: -96dbm11a 54Mbps:-75dbm11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -71dbm11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -66dbm11ac VHT80_MCS0: -89dbm 11ac VHT40_MCS9:-62dbm11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -64dbm11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G11g 6Mbps:-96dbm 11a 54Mbps:-75dbm11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbm
Network Security	SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway
Guest Network	1× 5 GHz Guest Network1× 2.4 GHz Guest Network
พอร์ต Ethernet	1× Gigabit WAN Port4× Gigabit LAN Ports
Network Services Enabled by Default	Web Server \| Manage and configure device through web (HTTP/HTTPS) \| • Port: 80/443 Protocol: TCP \| DNS \| DNS \| • Port: 53 Protocol: TCP & UDP \| DHCP Server \| IP address assignment (DHCP) \| • Port: 67 Protocol: UDP \| App management \| Manage and configure device through app \| • Port: 20001 Protocol: TCP \| • Port: 30001 Protocol: TCP \| • Port: 20002 Protocol: UDP
กำลังไฟ	12 V ⎓ 1 A
Buttons	WPS/Wi-Fi ButtonPower On/Off ButtonReset Button
Certifications	FCC, CE
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Dimensions (W×D×H)	10.2 × 5.3 ×1.5 in(260.2 × 135.0 × 38.6 mm)
อุปกรณ์ในกล่อง	Wi-Fi Router Archer AX23Power AdapterRJ45 Ethernet CableQuick Installation Guide
Standards and Protocols	Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz
Working Modes	Router ModeAccess Point Mode
VPN Server	• OpenVPN Server• PPTP VPN Server• WireGuard VPN Server
Protocols	IPv4IPv6
EasyMesh	Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Learn More>
Parental Controls	URL FilteringTime Controls
WAN Types	Dynamic IPStatic IPPPPoEPPTPL2TP
Quality of Service	QoS by Device
Cloud Service	OTA Firmware Upgrade \| TP-Link ID \| DDNS
IPTV	IGMP ProxyIGMP SnoopingBridgeTag VLAN
DHCP	Address ReservationDHCP Client ListServer
DDNS	TP-LinkNO-IPDynDNS
ระยะเวลารับประกัน	ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต)
