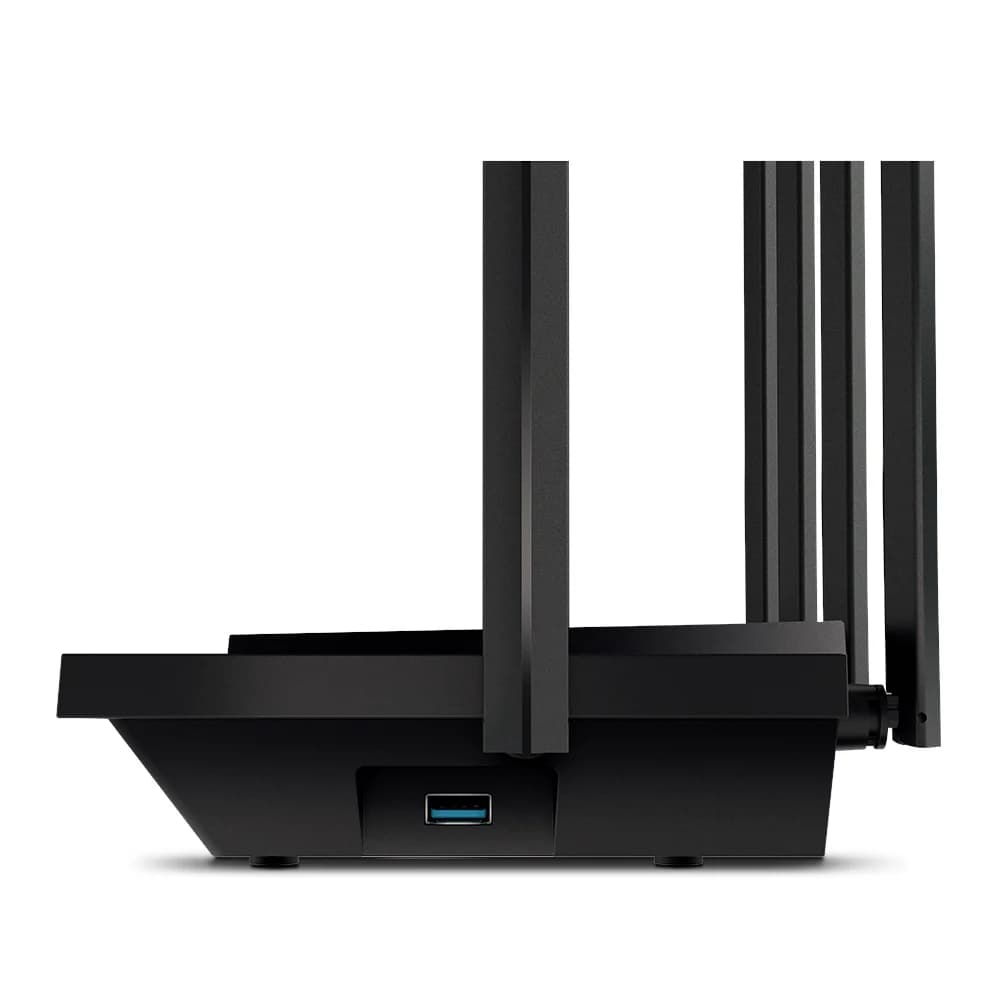

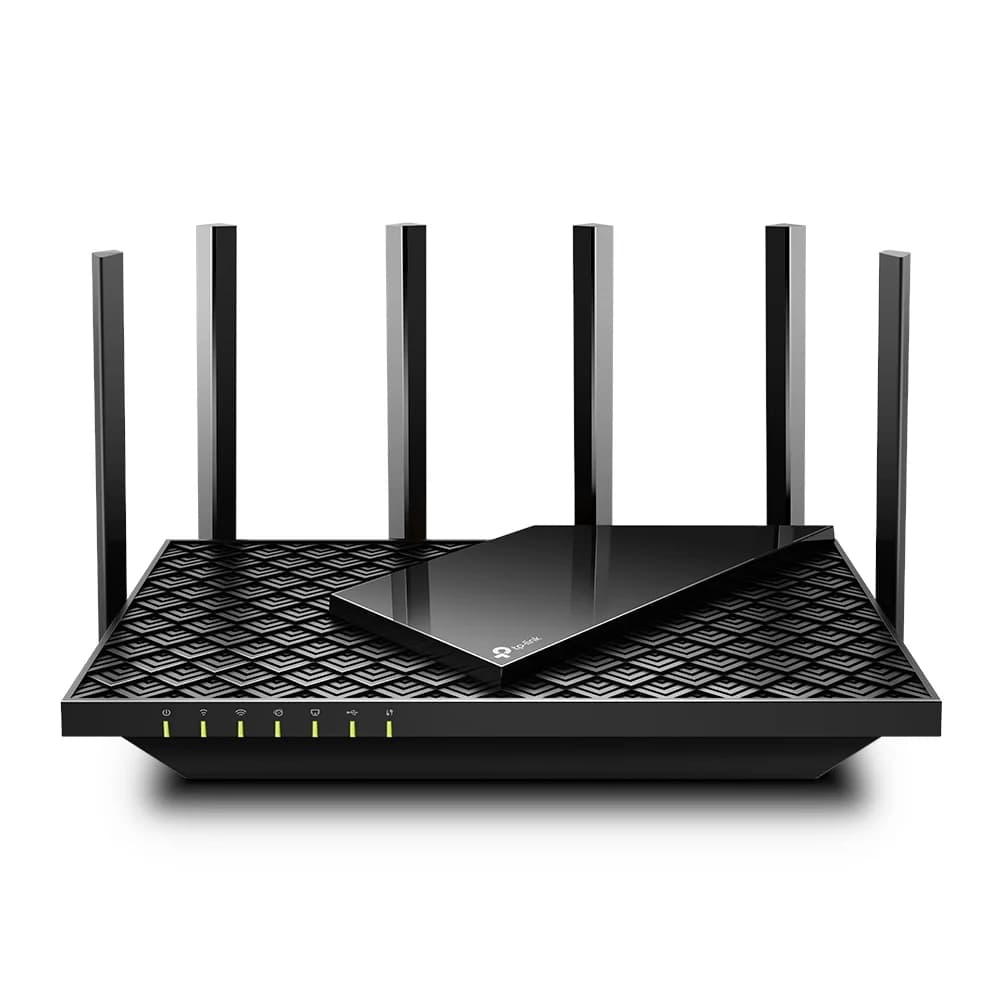

Name: TP-Link Archer AX73 AX5400 Dual-Band Gigabit Wi-Fi 6 Router
Brand: TP-Link

รายละเอียดสินค้า

รุ่น	Archer AX73
Management Features	Tether AppWebpage
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)
WiFi Capacity	HighDual-BandAllocate devices to different bands for optimal performance4×4 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsOFDMASimultaneously communicates with multiple Wi-Fi 6 clientsAirtime FairnessImproves network efficiency by limiting excessive occupationDFSAccess an extra band to reduce congestion6 StreamsConnect your devices to more bandwidth
Processor	1.5 GHz Triple-Core CPU
NAT Forwarding	Port ForwardingPort TriggeringDMZUPnPVirtual Server
ความเร็ว Wi-Fi	AX54005 GHz: 4804 Mbps (802.11ax, HE160)2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	3 Bedroom Houses6× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi rangeHigh-Power FEMImproves transmission power to strengthen signal coverage4T4RMultiple streams in the same band strengthen the fault tolerance in transmission
VPN Client	• OpenVPN• PPTP• L2TP
WiFi Encryption	WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x)
WiFi Transmission Power	CE:<20dBm{2.4GHz}<23dBm{5.15GHz~5.35GHz}<30dBm{5.47GHz~5.725GHz}FCC:<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity	2.4GHz:11ac VHT20 MCS0:-94.5dBm11ac VHT20 MCS8:-72.5dBm11ac VHT40 MCS0:-92.5dBm11ac VHT40 MCS9:-69.5dBm11ax HE20 MCS0:-95dBm11ax HE20 MCS11:-64.5dBm11ax HE40 MCS0:-92.5dBm11ax HE40 MCS11:-62dBm5GHz:11ac VHT20 MCS0:-97dBm11ac VHT20 MCS8:-74dBm11ac VHT40 MCS0:-95dBm11ac VHT40 MCS9:-70dBm11ac VHT80 MCS0:-91.5dBm11ac VHT80 MCS9:-66dBm11ac VHT160 MCS0:-86dBm11ac VHT160 MCS9:-61dBm11ax HE20 MCS0:-95dBm11ax HE20 MCS11:-64dBm11ax HE40 MCS0:-91.5dBm11ax HE40 MCS11:-62dBm11ax HE80 MCS0:-88dBm11ax HE80 MCS11:-58dBm11ax HE160 MCS0:-85.5dBm11ax HE160 MCS11:-55dBm
Network Security	SPI FirewallAccess ControlIP & MAC BindingApplication Layer GatewayHomeShield SecurityReal-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner
Guest Network	1× 5 GHz Guest Network1× 2.4 GHz Guest Network

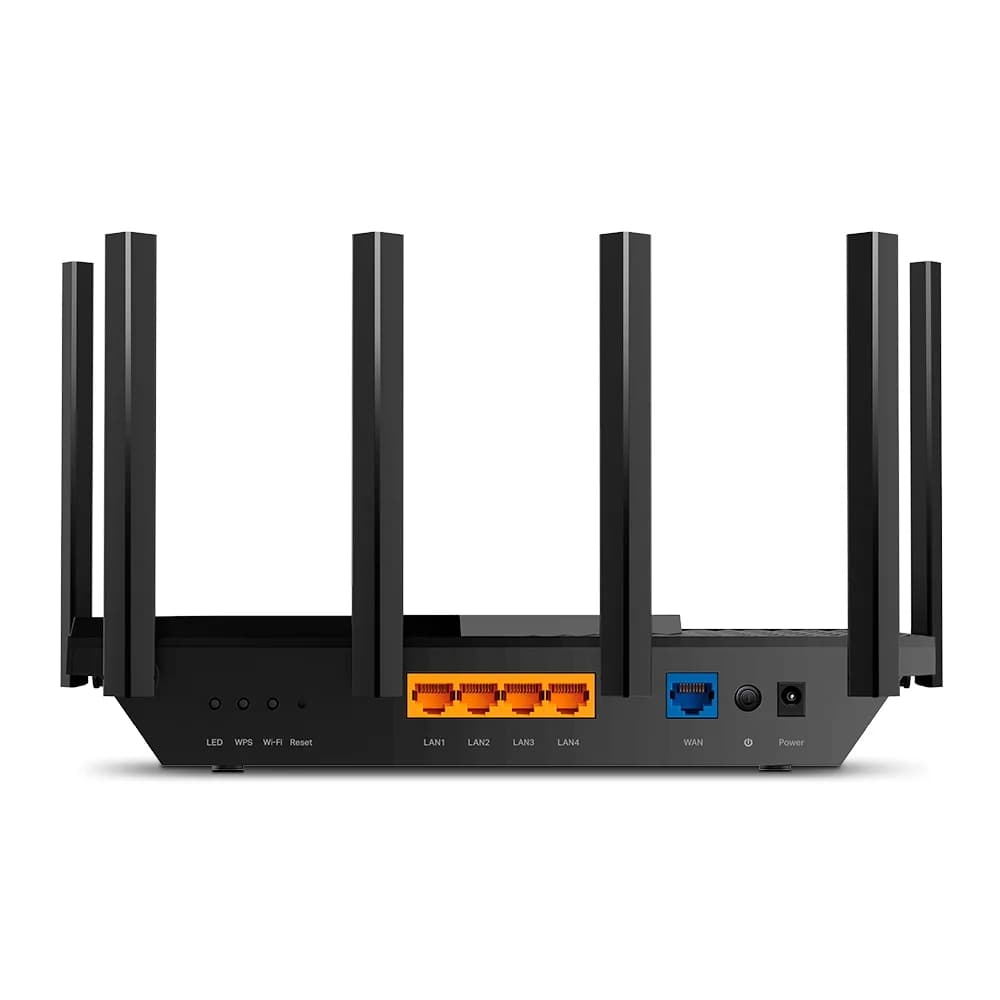

พอร์ต Ethernet	1× Gigabit WAN Port4× Gigabit LAN PortsStatic Link Aggregation (LAG) available with 2× LAN ports
USB Support	1× USB 3.0 PortSupported Partition Formats:NTFS, exFAT, HFS+, FAT32Supported Functions:Apple Time MachineFTP ServerMedia ServerSamba Server
Network Services Enabled by Default	Web Server \| Manage and configure device through web (HTTP/HTTPS) \| • Port: 80/443 Protocol: TCP \| DNS \| DNS \| • Port: 53 Protocol: TCP & UDP \| DHCP Server \| IP address assignment (DHCP) \| • Port: 67 Protocol: UDP \| App management \| Manage and configure device through app \| • Port: 20001 Protocol: TCP \| • Port: 30001 Protocol: TCP \| • Port: 20002 Protocol: UDP
Typical Power Consumption	Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 8.7W.
กำลังไฟ	V1: 12 V ⎓ 2.5 AV2: 12 V ⎓ 2 A
Buttons	Wi-Fi On/Off ButtonPower On/Off ButtonLED On/Off ButtonWPS ButtonReset Button
Certifications	FCC, CE
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Dimensions (W×D×H)	10.7 × 5.8 × 1.9 in(272.5 × 147.2 × 49.2 mm)
อุปกรณ์ในกล่อง	Wi-Fi Router Archer AX73Power AdapterRJ45 Ethernet CableQuick Installation Guide
Standards and Protocols	Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz
Working Modes	Router ModeAccess Point Mode
VPN Server	• OpenVPN• PPTP• L2TP
Protocols	IPv4IPv6
Service Kits	HomeShieldLearn More>
OneMesh™	OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products>
Parental Controls	HomeShield Parental ControlsCustom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports
WAN Types	Dynamic IPStatic IPPPPoEPPTPL2TP
Quality of Service	QoS by Device
Cloud Service	Auto Firmware UpgradeTP-Link IDDDNS
IPTV	IGMP ProxyIGMP SnoopingBridgeTag VLAN
DHCP	Address ReservationDHCP Client ListServer
DDNS	TP-LinkNO-IPDynDNS
ระยะเวลารับประกัน	ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต)
