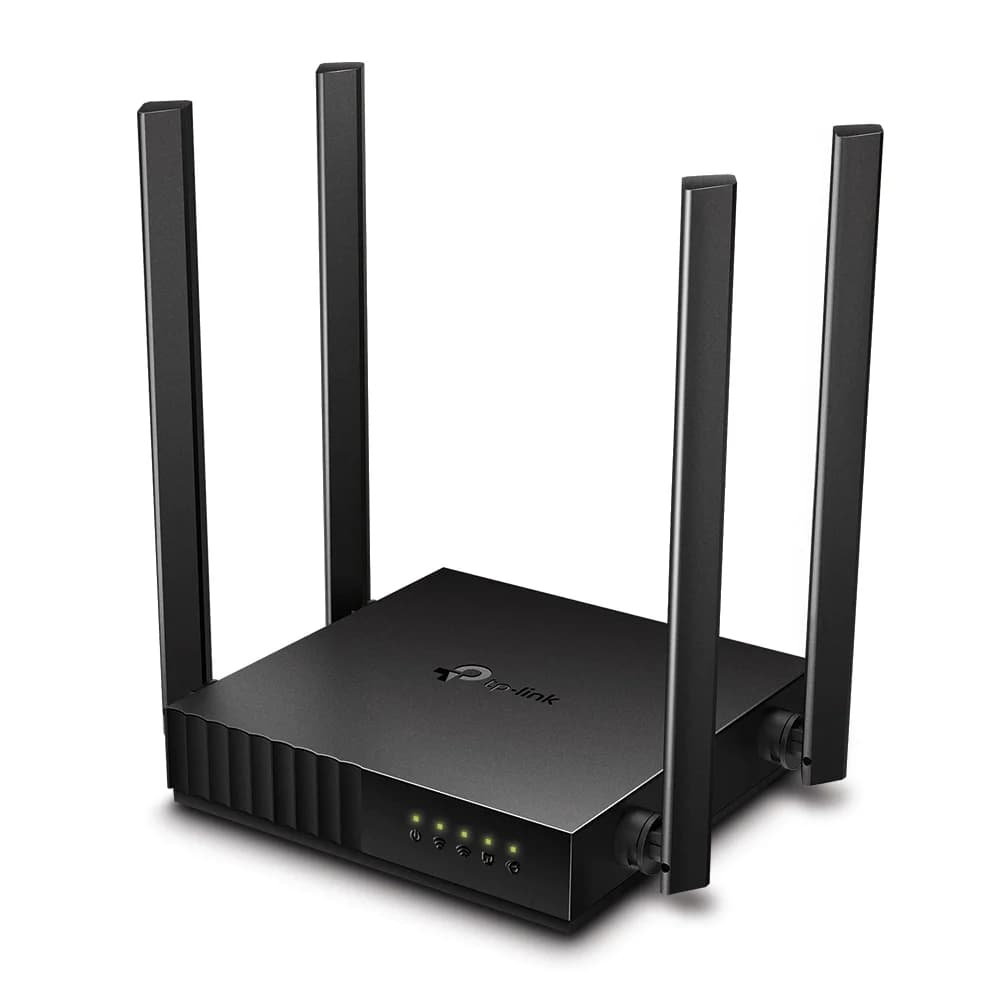

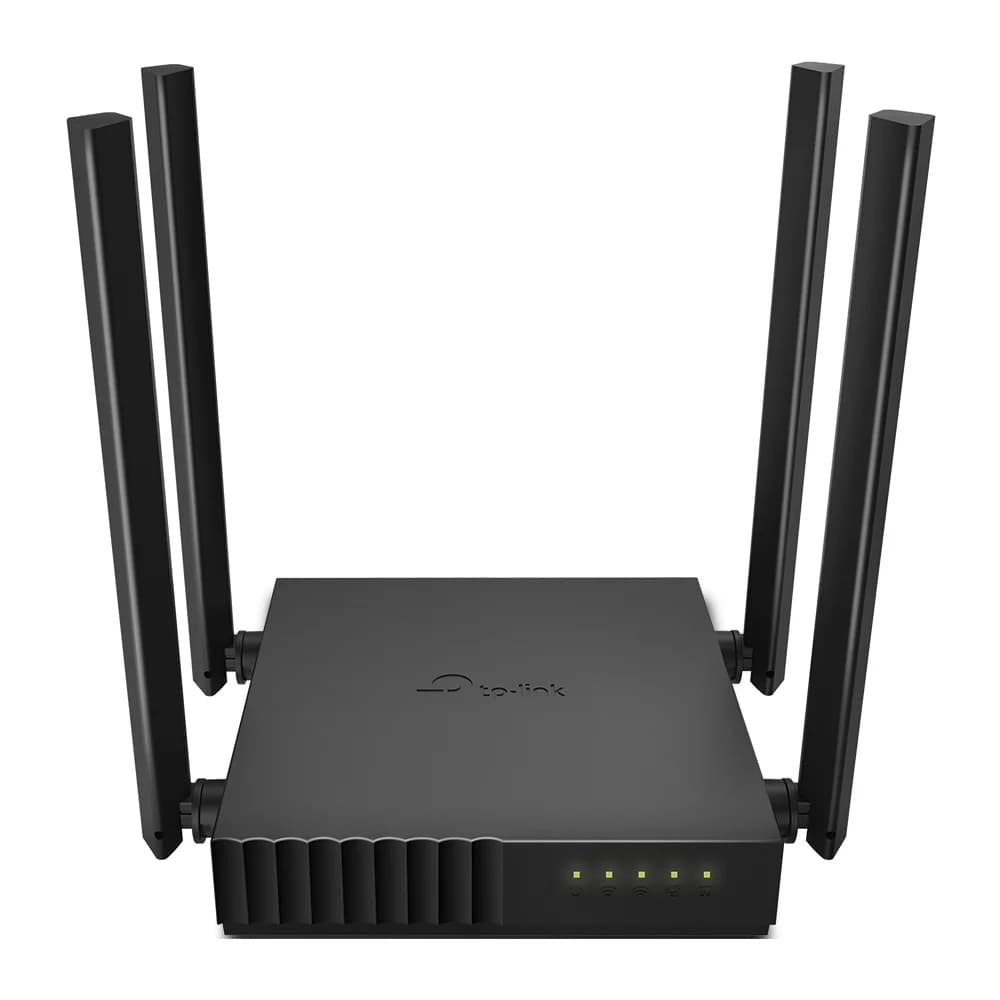

AC1200 Dual Band Wi-Fi Router
| รุ่น | Archer C54 |
|---|---|
| Management Features | Tether AppWebpageCheck Web Emulator> |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access) |
| WiFi Capacity | MediumDual-BandAllocate devices to different bands for optimal performanceMU-MIMOSimultaneously communicates with multiple MU-MIMO clients |
| Processor | Single-Core CPU |
| NAT Forwarding | Port ForwardingPort TriggeringDMZUPnP |
| ความเร็ว Wi-Fi | AC12005 GHz: 867 Mbps (802.11ac)2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 3 Bedroom Houses4× Fixed AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Encryption | WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x) |
| WiFi Transmission Power | CE EIRP:<20dBm(2.4GHz)<23dBm(5GHz)FCC: <30dBm(2.4GHz & 5GHz) |
| WiFi Reception Sensitivity | 5GHz:11a 6Mbps:-93dBm；11a 54Mbps:-78dBm；11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-66dBm;11ac HT80 mcs9:-62dBm;2.4GHz:11g 54Mbps:-78dBm;11n HT20 mcs7:-74dBm;11n HT40 mcs7:-71dbm； |
| Network Security | SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network1× 2.4 GHz Guest Network |

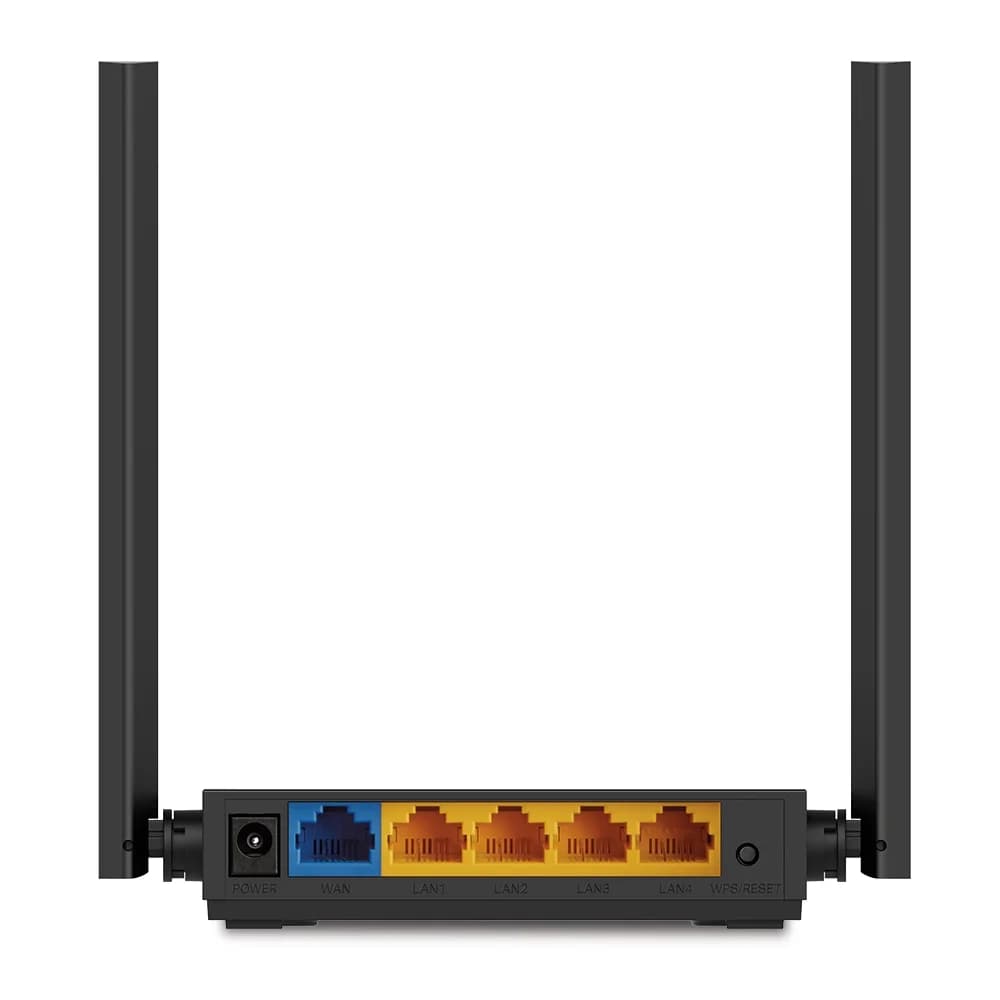

| พอร์ต Ethernet | 1× 10/100 Mbps WAN Port4× 10/100 Mbps LAN Ports |
| Network Services Enabled by Default | Web Server | Manage and configure device through web (HTTP/HTTPS) | • Port: 80/443 Protocol: TCP | DHCP Server | IP address assignment (DHCP) | • Port: 67 Protocol: UDP | App management | Manage and configure device through app | • Port: 20002 Protocol: UDP |
| กำลังไฟ | 9 V ⎓ 0.85 A |
| Buttons | WPS/Reset Button |
| Certifications | FCC, CE |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~60℃ (-40℉ ~140℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| Dimensions (W×D×H) | 4.5 × 4.2 × 1.0 in(115 × 106.7 × 24.3 mm) |
| อุปกรณ์ในกล่อง | Wi-Fi Router Archer C54Power AdapterRJ45 Ethernet CableQuick Installation Guide |
| Standards and Protocols | Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz |
| Working Modes | Router ModeAccess Point ModeRange Extender Mode |
| Protocols | IPv4IPv6 |
| Parental Controls | URL FilteringTime Controls |
| WAN Types | Dynamic IPStatic IPPPPoEPPTPL2TP |
| Quality of Service | QoS by Device |
| IPTV | IGMP ProxyIGMP SnoopingBridgeTag VLAN |
| DHCP | Address ReservationDHCP Client ListServer |
| DDNS | NO-IPDynDNS |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
