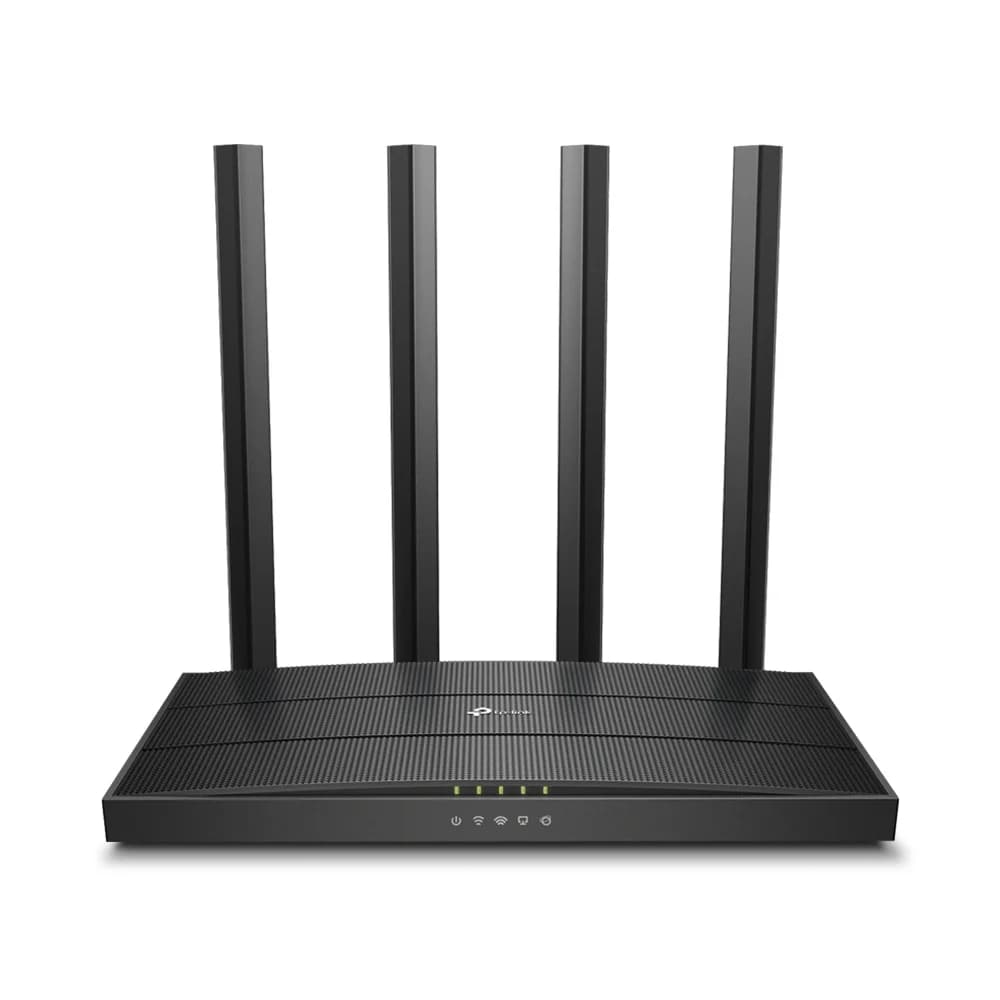

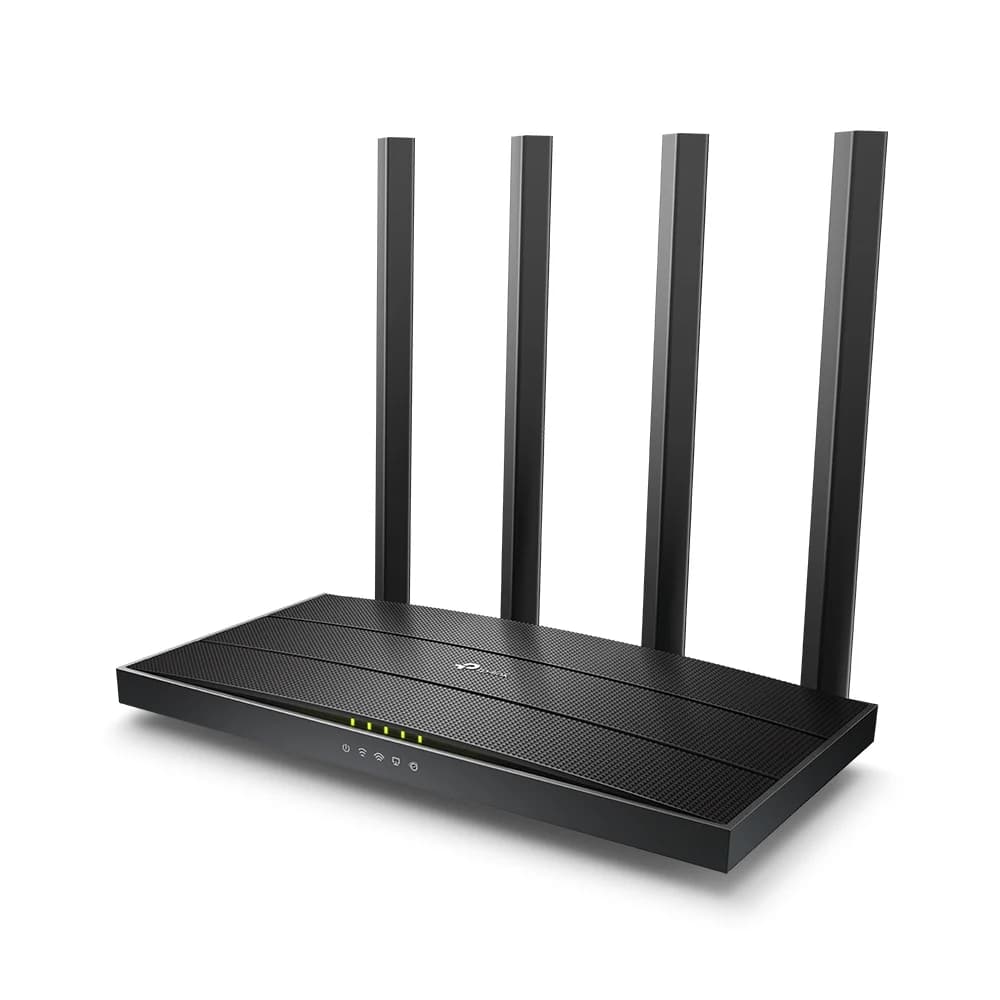

AC1900 Wireless MU-MIMO Wi-Fi Router
| รุ่น | Archer C80 |
|---|---|
| Management Features | Tether AppWebpageCheck Web Emulator> |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access) |
| WiFi Capacity | MediumDual-BandAllocate devices to different bands for optimal performance3×3 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsAirtime FairnessImproves network efficiency by limiting excessive occupation |
| Processor | 1.2 GHz CPU |
| NAT Forwarding | Port ForwardingPort TriggeringDMZUPnP |
| ความเร็ว Wi-Fi | AC19005 GHz: 1300 Mbps (802.11ac)2.4 GHz: 600 Mbps (802.11n) |
| WiFi Range | 3 Bedroom Houses4× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Encryption | WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x) |
| WiFi Transmission Power | CE:<20dBm(2.4GHz)<23dBm(5.15GHz~5.25GHz)FCC:<30dBm(2.4GHz & 5GHz) |
| WiFi Reception Sensitivity | 5GHz:11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm2.4GHz:11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm |
| Network Security | SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network1× 2.4 GHz Guest Network |

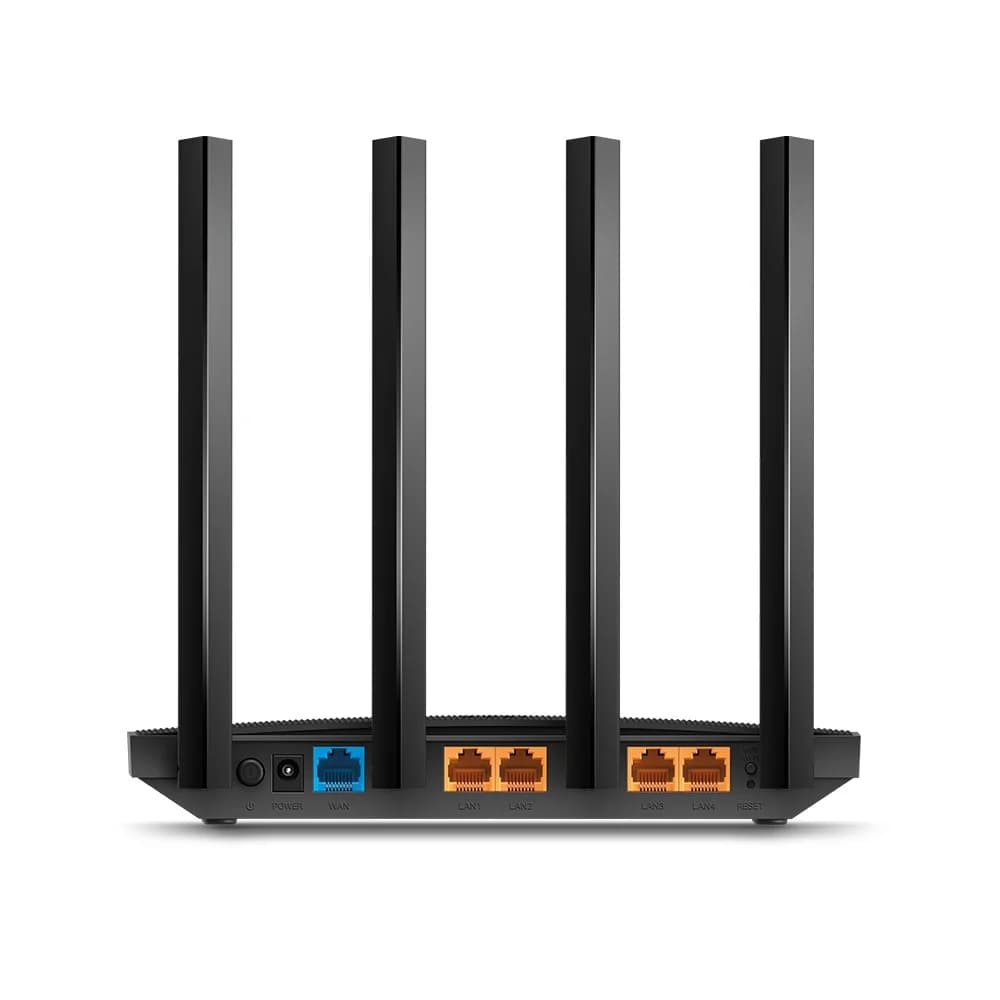

| พอร์ต Ethernet | 1× Gigabit WAN Port4× Gigabit LAN Ports |
| Network Services Enabled by Default | Web Server | Manage and configure device through web (HTTP/HTTPS) | • Port: 80/443 Protocol: TCP | DNS | DNS | • Port: 53 Protocol: TCP & UDP | DHCP Server | IP address assignment (DHCP) | • Port: 67 Protocol: UDP | App management | Manage and configure device through app | • Port: 20002 Protocol: UDP | Alexa service | Detect Alexa-enabled devices in the LAN | • Port: 5353 Protocol: UDP |
| กำลังไฟ | US Version12 V ⎓ 1.5 AEU Version12 V ⎓ 1 A |
| Buttons | WPS/Wi-Fi ButtonPower On/Off ButtonReset Button |
| Certifications | FCC, CE |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| Dimensions (W×D×H) | 8.5 × 4.6 × 1.26 in(215 × 117 × 32 mm) |
| อุปกรณ์ในกล่อง | Wi-Fi Router Archer C80Power AdapterRJ45 Ethernet CableQuick Installation Guide |
| Standards and Protocols | Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz |
| Working Modes | Router ModeAccess Point Mode |
| Protocols | IPv4IPv6 |
| OneMesh™ | OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products> |
| Parental Controls | URL FilteringTime Controls |
| WAN Types | Dynamic IPStatic IPPPPoEPPTPL2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware UpgradeTP-Link IDDDNS |
| IPTV | IGMP ProxyIGMP SnoopingBridgeTag VLAN |
| DHCP | Address ReservationDHCP Client ListServer |
| DDNS | TP-LinkNO-IPDynDNS |
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
ยังไม่มีเอกสารจากผู้ผลิตสำหรับสินค้านี้
