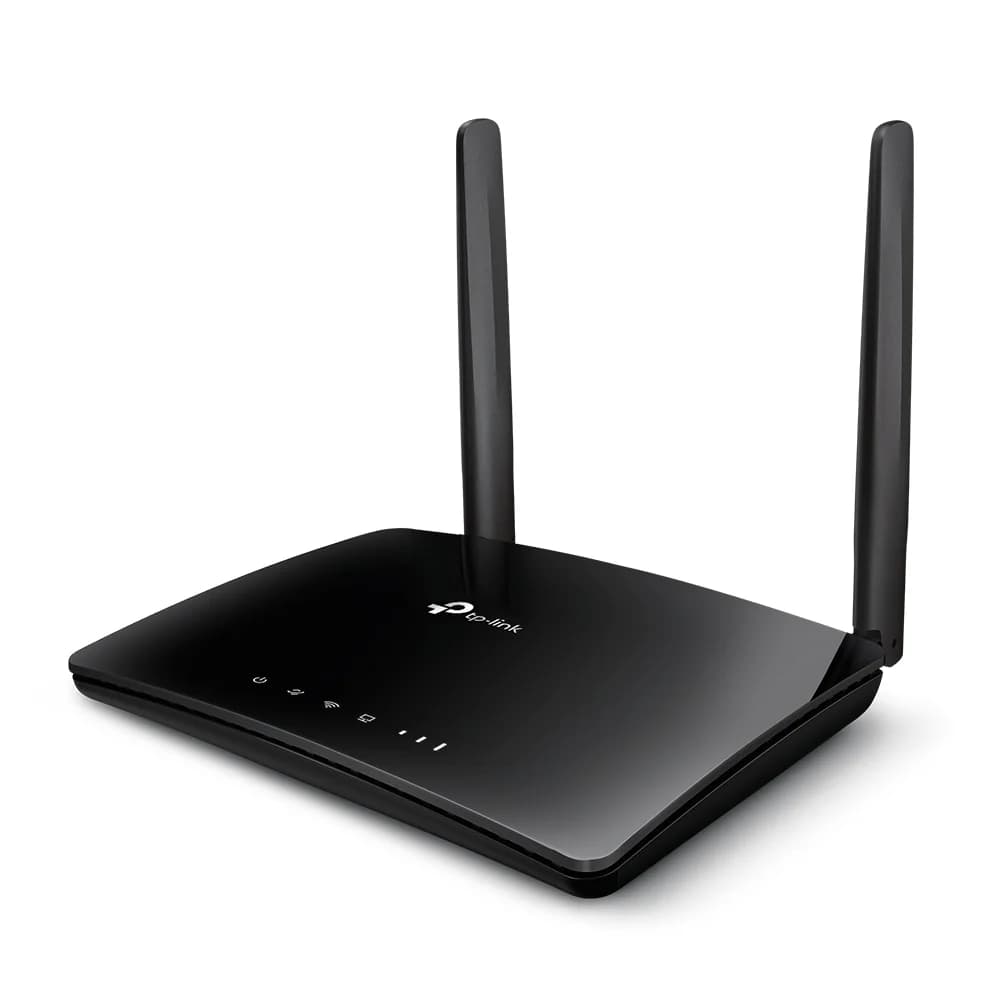

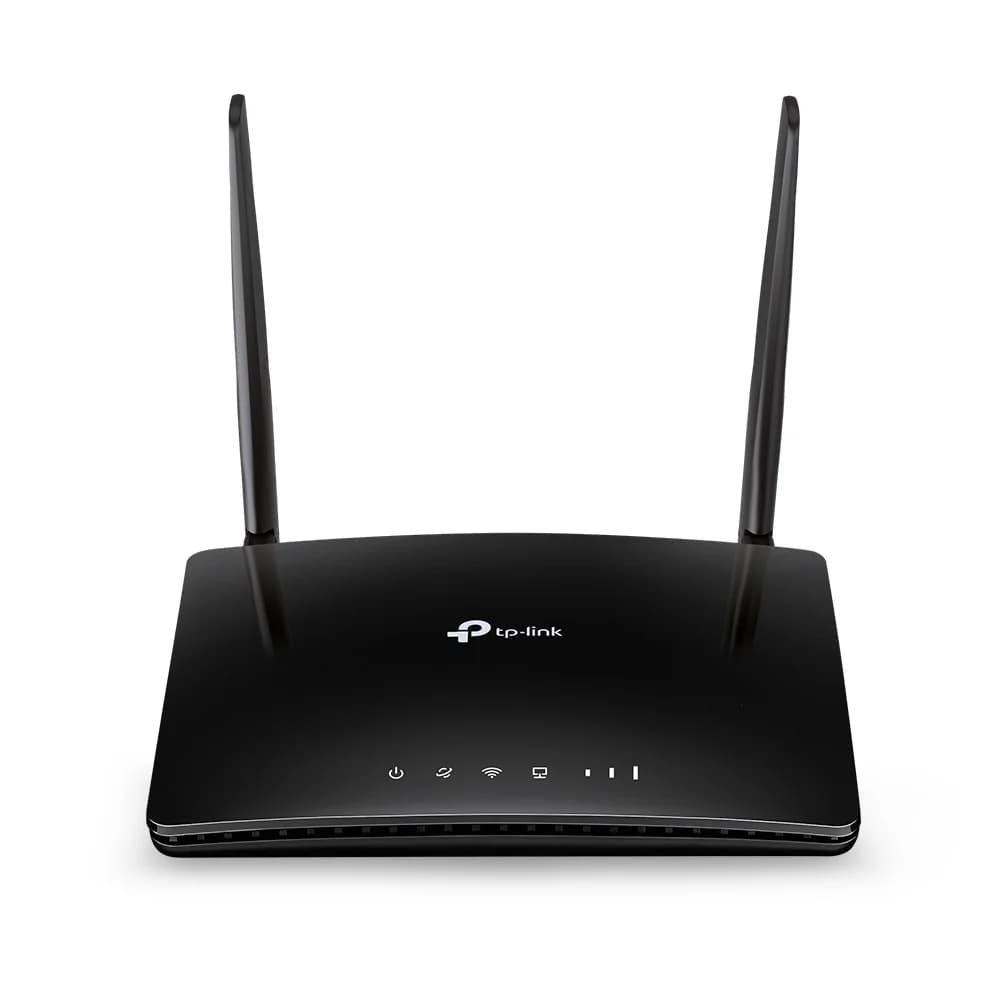

AC1200 Wireless Dual Band 4G LTE Router
| รุ่น | Archer MR402 |
|---|---|
| Management Features | Access Control, Local Management, Remote Managementreboot schedule |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsersNano SIM Card |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| เสาอากาศ | 2× Detachable External 4G LTE Antennas |
| มาตรฐานไร้สาย | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, WirelessStatistics |
| ความปลอดภัยไร้สาย | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |

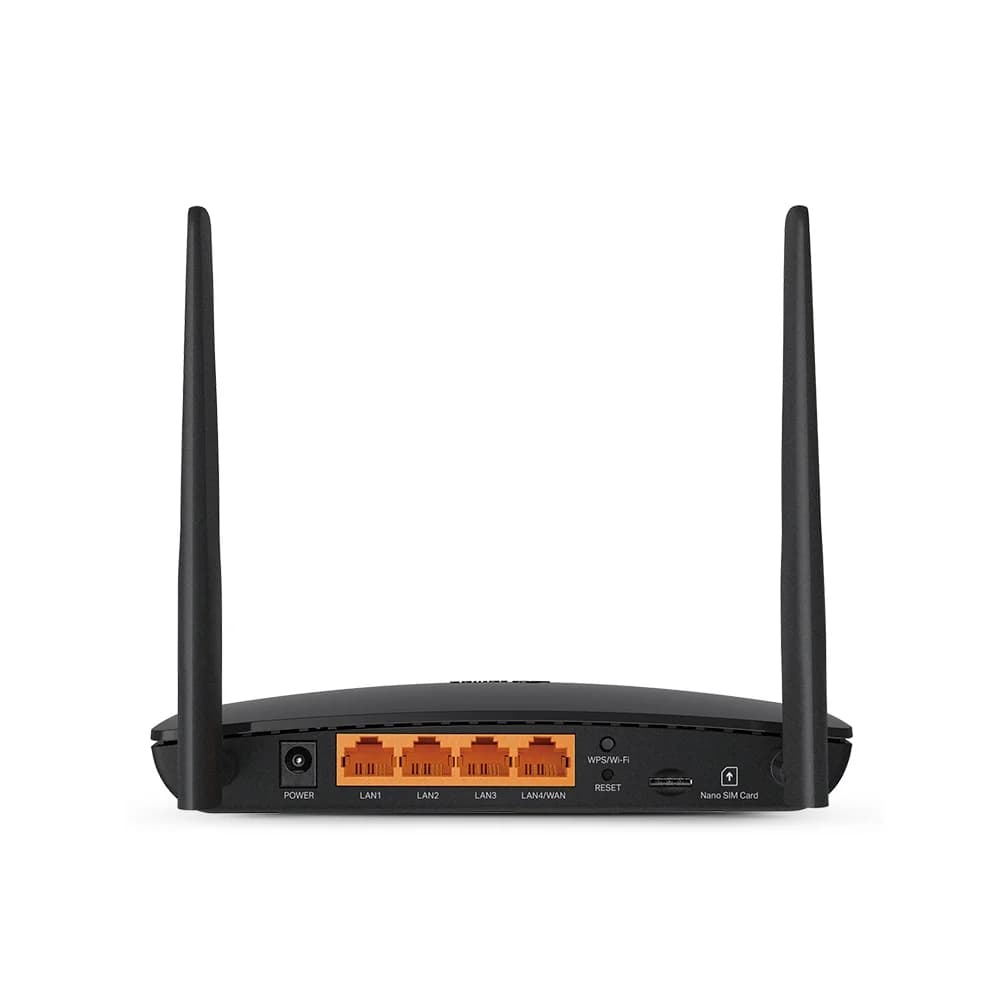

| พอร์ตเชื่อมต่อ | 3× 10/100Mbps LAN Ports1× 10/100Mbps LAN/WAN Port1× Nano SIM Card Slot2× External SMA-F Antenna Interface |
| Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
| Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| Network Services Enabled by Default | Web Server | Manage and configure device through web (HTTP/HTTPS) | • Port: 80/443 Protocol: TCP | DHCP Server | IP address assignment (DHCP) | • Port: 67 Protocol: UDP | DNS | • Port: 53 Protocol: TCP | App management | Manage and configure device through app | • Port: 22 Protocol: TCP | • Port: 20002 Protocol: TCP | CWMP | CPE WAN Management Protocol | • Port: 7547 Protocol: TCP |
| External Power Supply | 12V/1A |
| Transmission Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Button | WPS/Wi-Fi Button，Reset Button |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, | IP and MAC Address Binding |
| ขนาด (กว้าง × ลึก × สูง) | 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm) |
| Certification | CE |
| อุปกรณ์ในกล่อง | AC1200 Wireless Dual Band 4G LTE Router, Archer MR402RJ45 Ethernet Cable1.5m Power AdapterQuick Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) | Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | Operating Humidity: 10%~90% non-condensing | Storage Humidity: 5%~90% non-condensing |
| Quality of Service | Prioritizes network traffic by device or application |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Dynamic DNS | DynDns, NO-IP |
| VPN | PPTP VPN, OpenVPN |
| Access Control | Parental Control, Local Management Control |
| Protocols | Supports IPv4 and IPv6 |
| Signal Rate | 300Mbps at 2.4GHz, 867Mbps at 5GHz |
| Reception Sensitivity | 5 GHz:11a 54M: -77 dBm11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm2.4 GHz:11g 54M: -74.5 dBm11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm |
| WAN Failover | Yes |
| ระยะเวลารับประกัน | 3 ปี |
