4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
| รุ่น | Archer MR505 |
|---|---|
| Management Features | TP-Link Cloud, Local Management, Remote Management |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| เสาอากาศ | 2× Internal 4G/3G Antennas2× Internal Wi-Fi Antennas |
| มาตรฐานไร้สาย | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| ความปลอดภัยไร้สาย | 64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2 |

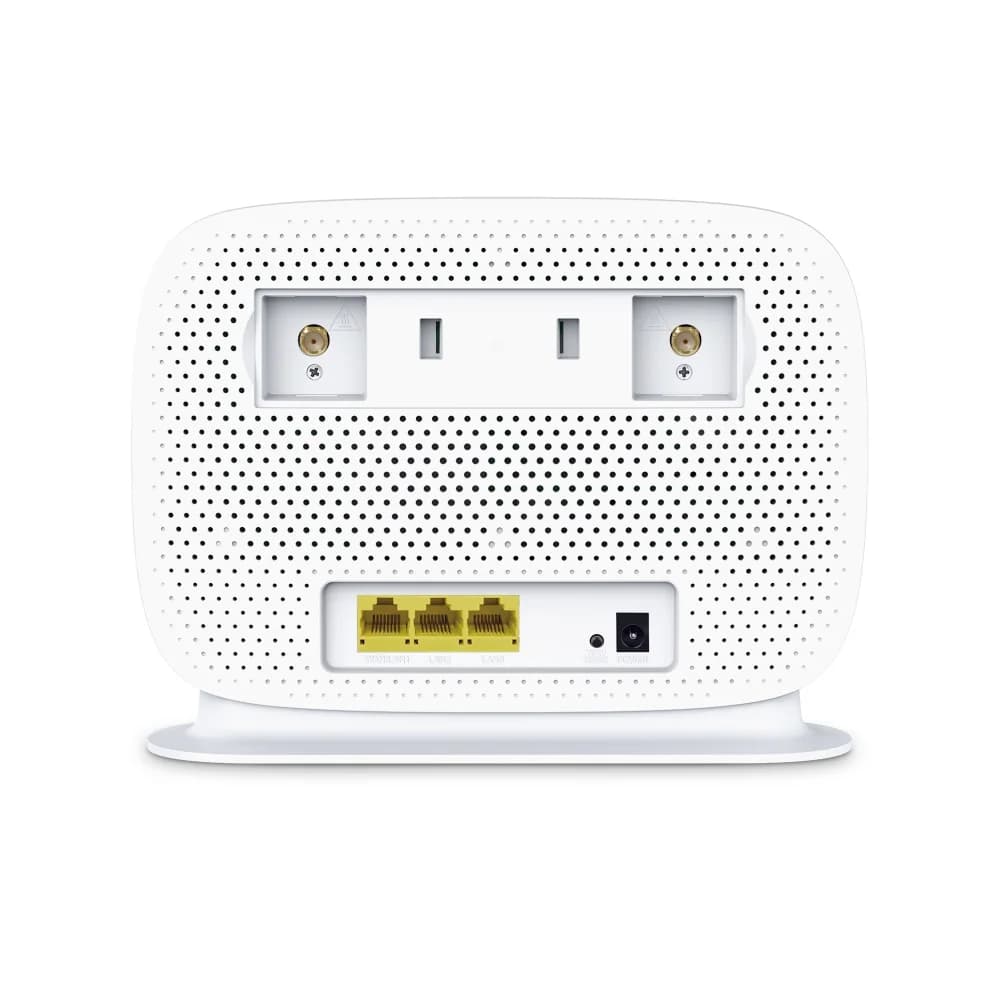

| พอร์ตเชื่อมต่อ | 1 × 10/100/1000 Mbps LAN/WAN Port2 × 10/100/1000 Mbps LAN Ports1 × Nano SIM Card Slot2 × External SMA-F Antenna Interface |
| Guest Network | 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
| Network Type | Compatible with the majority of mobile operators and supports 4G/3G:FDD-LTE: B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz)TDD-LTE: B38/B40/B41(2600/2300/2500 MHz)DC-HSPA+/HSPA/UMTS: B1/B5/B8(2100/850/900 MHz) |
| Network Services Enabled by Default | Web Server | Manage and configure device through web (HTTP/HTTPS) | • Port: 80/443 Protocol: TCP | DHCP Server | IP address assignment (DHCP) | • Port: 67 Protocol: UDP | DNS | DNS | • Port: 53 Protocol: TCP | App management | Manage and configure device through app | • Port: 22/20002 Protocol: TCP |
| Transmission Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Security | ALG, IPv4 SPI Firewall, IP and MAC Address Binding, Access Control |
| ขนาด (กว้าง × ลึก × สูง) | 212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in) |
| Certification | CE |
| อุปกรณ์ในกล่อง | 4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR5051.5m Power AdapterRJ45 Ethernet CableQuick Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| แหล่งจ่ายไฟ | 12V/1A |
| Quality of Service | Prioritizes network traffic by device |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP | Server, DHCP Client List, Address Reservation |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| Parental Controls | URL Filtering, Time Controls |
| Protocols | IPv4, IPv6 |
| Signal Rate | 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz: 11a 54M: -77 dBm11ac HT20: -73 dBm11ac HT40: -68 dBm11ac HT80 : -64 dBm11n HT20: -77 dBm11n HT40: -73 dBm2.4 GHz: 11g 54M: -74 dBm11n HT20: -72 dBm11n HT40: -69 dBm |
| WAN Failover | Yes |
| ระยะเวลารับประกัน | 3 ปี |
