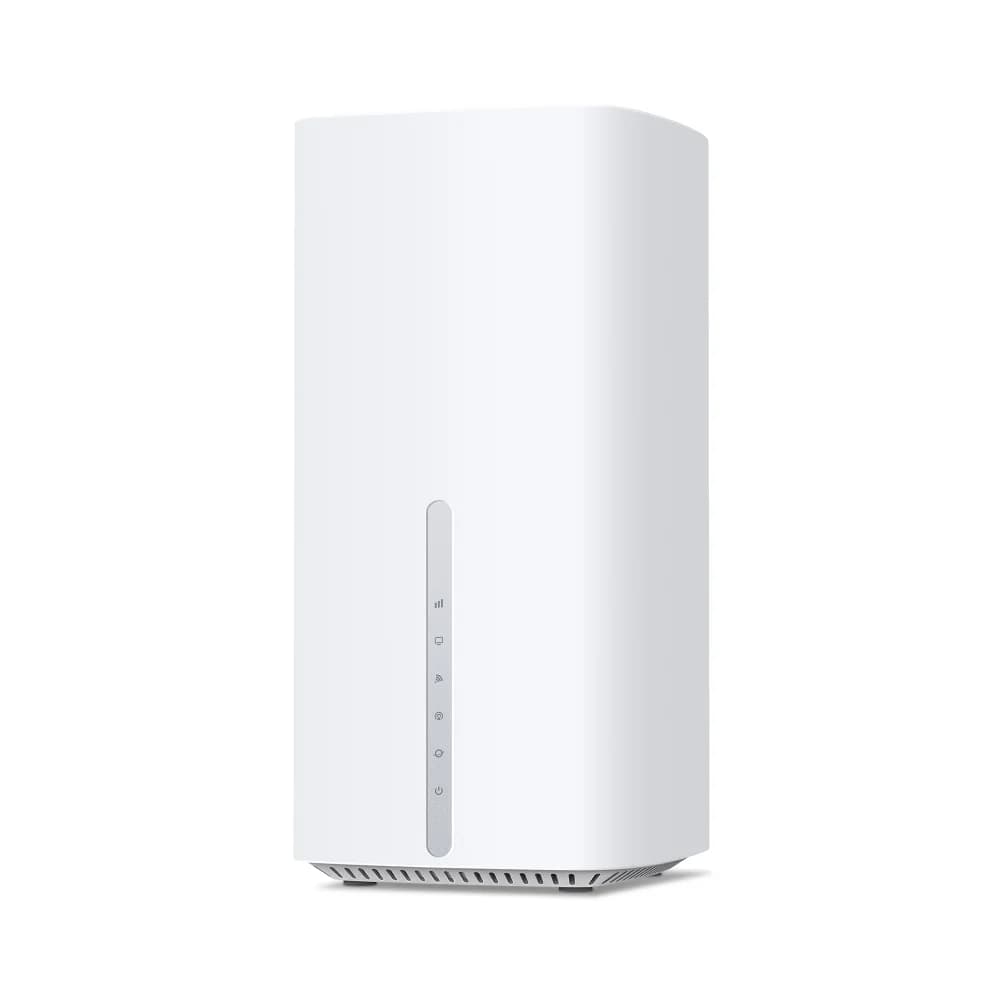

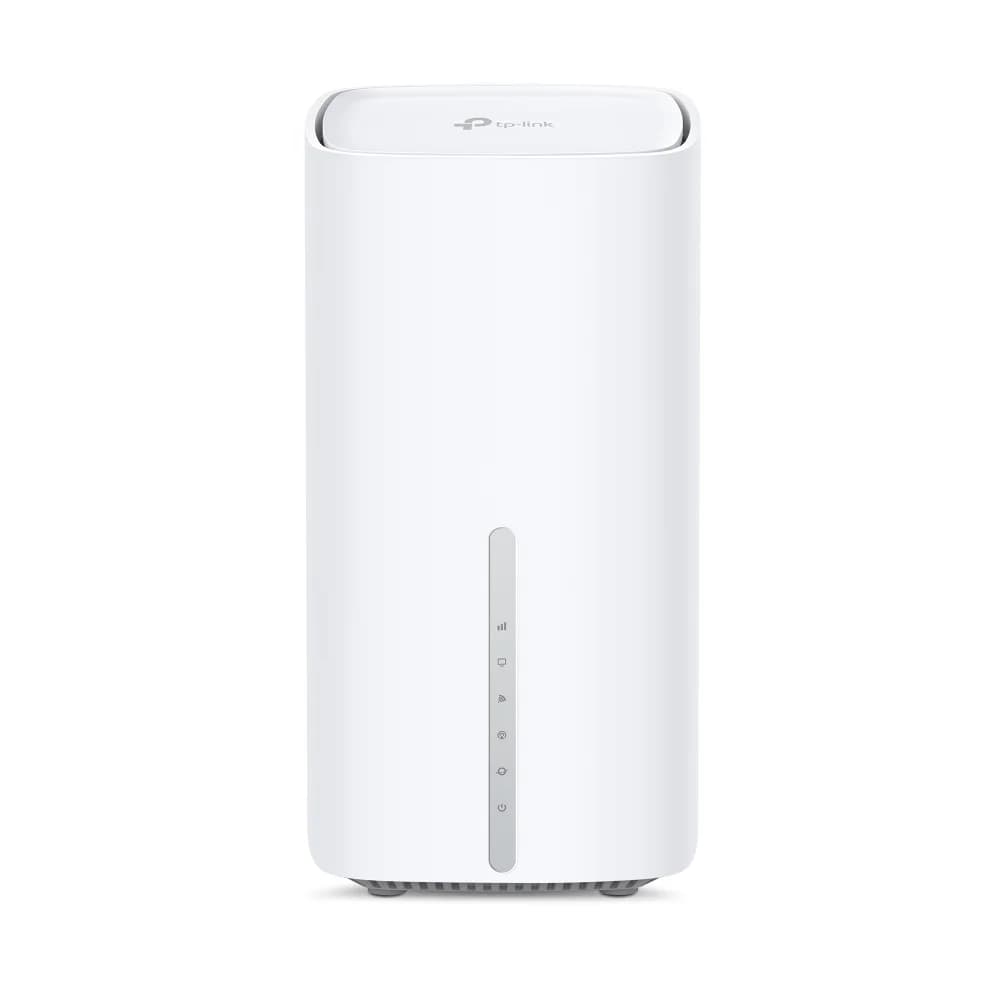

5G BE7200 Wi-Fi 7 Router
| รุ่น | Archer NB450 |
|---|---|
| Management | Access Control, Local Management, Remote Management, reboot schedule |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| เสาอากาศ | Internal Wi-Fi Antennas, Internal NR/LTE Antennas |
| มาตรฐานไร้สาย | IEEE 802.11a/n/ac/ax/be 5 GHzIEEE 802.11b/g/n/ax/be 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| ความปลอดภัยไร้สาย | WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3 encryptions |
| Wireless Function | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| Network Type | 5G:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N75/N76/N77/N784G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28/B32/B71 (2100/1800/850/2600/900/800/700/1500/600 MHz)TDD-LTE: B38/B40/B41/B42/B43(2600/2300/2500/3500/3700 MHz) 3G: DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz) |

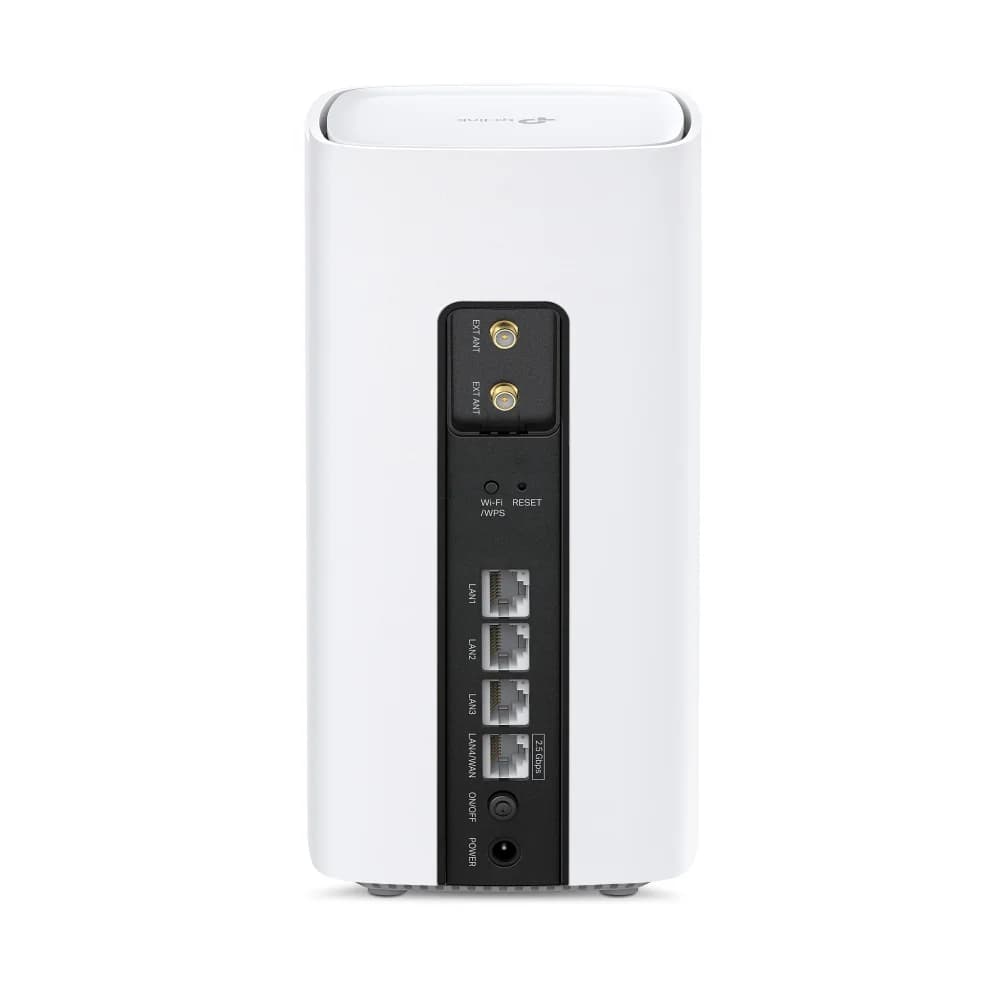

| พอร์ตเชื่อมต่อ | 3× Gigabit LAN Ports, 1× 2.5 Gigabit LAN/WAN Port, 1× Nano SIM Card Slot, 2× SMA ports for 5G/4G External Antennas,1× Power port |
| Guest Network | 2.4 GHz guest network x 1, 5 GHz guest network x 1 |
| External Power Supply | 12V/3.3A |
| Button | Wi-Fi/WPS Button, Power Button, RESET Button |
| Firewall Security | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control |
| ขนาด (กว้าง × ลึก × สูง) | 4.5 x 4.5x 9.1 in (115 x 115x 230 mm) |
| Certification | CE |
| อุปกรณ์ในกล่อง | 5G BE7200 Wi-Fi 7 Router Archer NB450RJ45 Ethernet CablePower AdapterQuick Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| Quality of Service | Bandwidth Control |
| Operating Modes | 3G/4G/5G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP | Server, DHCP Client List, Address Reservation |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| Protocols | IPv4, IPv6 |
| VPN Server | PPTP VPN, IPSec VPN, OpenVPN |
| Signal Rate | 1376 Mbps at 2.4 GHz, 5764 Mbps at 5 GHz |
| Reception Sensitivity | 5GHz：11a 54M：-80 dBm11be EHT20：-61 dBm 11be EHT40：-59 dBm11be EHT80：-56 dBm 11be EHT160：-53 dBm11ax HE20：-68 dBm 11ax HE40：-65 dBm11ax HE80：-62 dBm 11ax HE160：-59 dBm11ac VHT20：-76 dBm 11ac VHT40：-72 dBm11ac VHT80：-68 dBm 11ac VHT160：-65 dBm11n HT20：-79 dBm 11n HT40：-75 dBm2.4GHz11g 54M：-78 dBm11ax HE20：-66 dBm11ax HE40：-63 dBm11ac VHT20：-73 dBm11ac VHT40：-69 dBm11n HT20：-76 dBm11n HT40：-73 dBm |
| EIRP (CE) | ≤20dbm(2.4GHz); ≤23dbm(5G band1/band2); ≤30dbm(5G band3) |
| Requirements | Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser*You are recommended to use the latest versionNano SIM Card |
| ระยะเวลารับประกัน | 3 ปี |
