- SIM Type
- 1× Nano SIM Card
- Frequency
- • Downlink: 300 Mbps;
- Uplink
- 50 Mbps
- DPI
- Application control via DPI / Updated app library
- Access Control
- Source/Destination IP Based Access Control
- Filtering
- • Web Group Filtering
- URL Filtering
- Web Security
- ARP Inspection
- • Sending GARP Packets
- ARP Scanning
- IP-MAC Binding
- Attack Defense
- • TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN

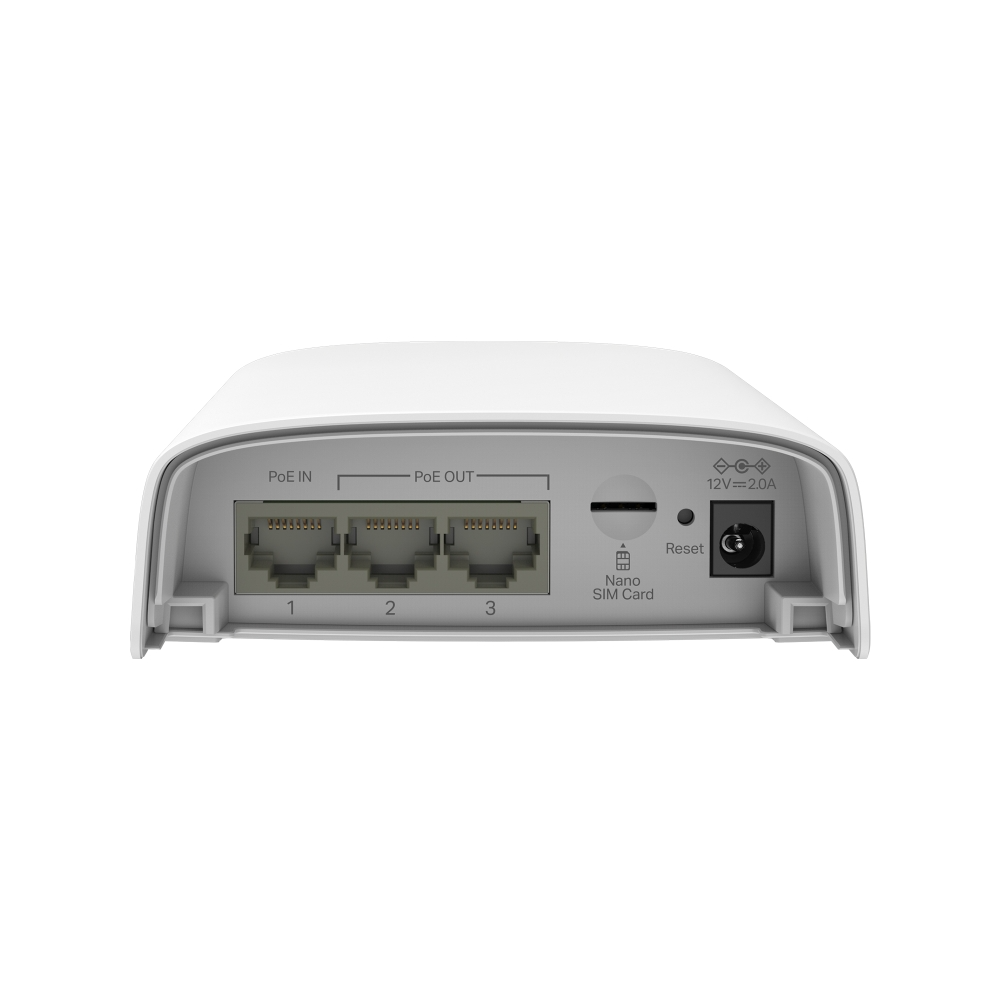

- Interface
- • 3 Gigabit WAN/LAN Ports
- Network Media
- • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
- 100BASE-TX
- UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
- 1000BASE-T
- UTP category 5, 5e, 6 cable (Max 100 m)
- Button
- Reset Button
- Power Supply
- 802.3at/bt PoE; 12VDC / 2A Power Adapter
- Wi-Fi Frequency & Signal Rate
- • 2.4 GHz: 574 Mbps
- 5 GHz
- 2402 Mbps (HE160)
- Flash
- 256 MB NAND
- DRAM
- 512 MB DDR4
- LED
- 4G Signal, WLAN, WAN/LAN, SYS
- Dimensions ( W x D x H )
- 6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included)
- Antenna
- • Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in
- antennas
- LTE
- Two 4.0dBi omnidirectional detachable antennas

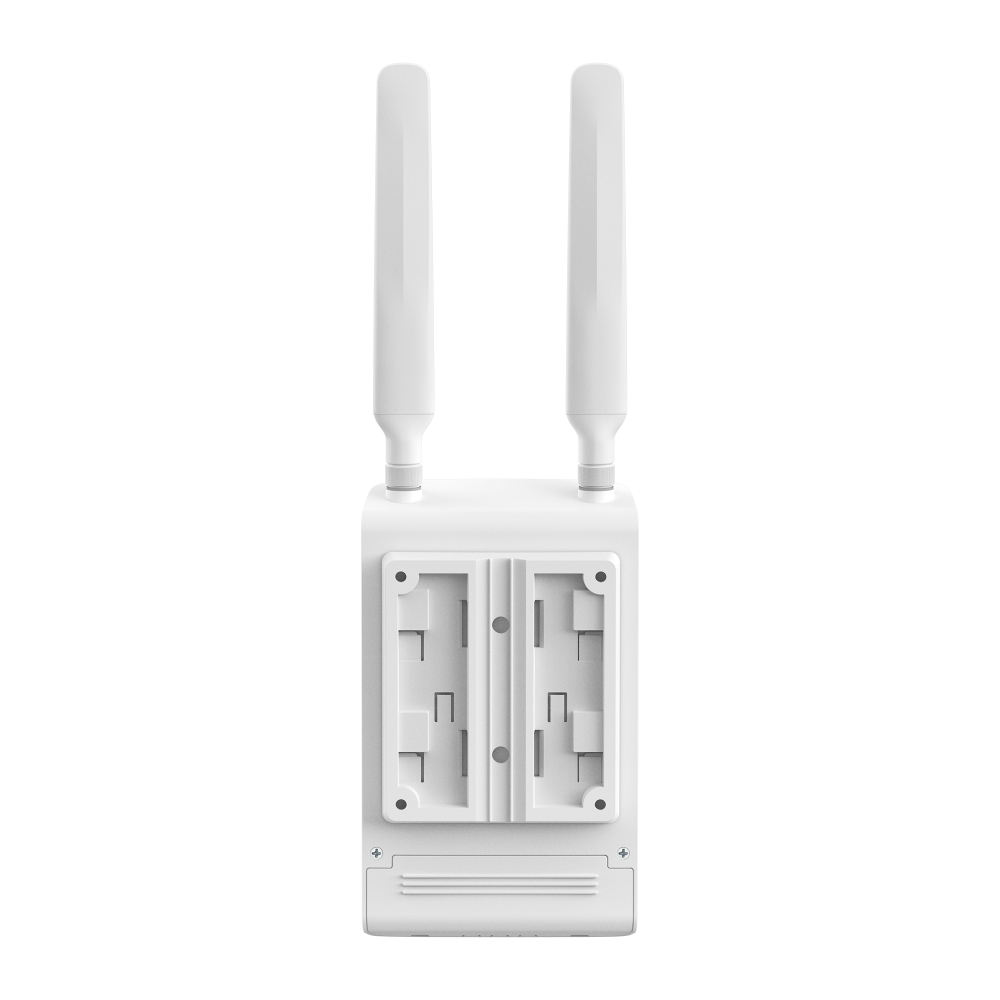

- Mounting
- Pole/Wall-Mounting
- Max Power Consumption
- POE:62.9W max @ 220V/50Hz 25℃
- DC
- 16.6W max @ 220V/50Hz 25℃
- DPI Throughput
- • TCP: 1131 Mbps
- UDP
- 974 Mbps
- GRE
- • Unencrypted: 450.3Mbps
- Encrypted
- 277.6Mbps
- WireGuard VPN
- 462.8Mbps
- Concurrent Session
- 120,000
- New Sessions /Second
- 3,800
- NAT (Static IP)
- 945.9Mbps / 950.2Mbps
- NAT(DHCP)
- 947.3Mbps / 949.4Mbps
- NAT(PPPoE)
- 916.9Mbps / 946.3Mbps
- NAT (L2TP)
- 878.9Mbps / 778.9Mbps
- NAT (PPTP)
- 852.2Mbps / 775.9Mbps
- IPsec VPN Throughput
- • ESP-SHA1-AES256: 568.3Mbps
- ESP-SHA256-AES256
- 559.8Mbps
- ESP-SHA384-AES256
- 565.6Mbps
- ESP-SHA512-AES256
- 550.0 Mbps
- OpenVPN
- 85.1Mbps
- L2TP VPN Throughput
- • Unencrypted: 858.7Mbps
- Encrypted
- 467.0Mbps
- PPTP VPN Throughput
- • Unencrypted: 876.2Mbps
- Encrypted
- 182.6Mbps
- SSL VPN Throughput
- 86.6Mbps
- 66 Byte Packet forwarding rate
- 1,453,489 pps / 1,453,489 pps
- 1,518 Byte Packet forwarding rate
- 81275 pps / 81275 pps
- Advanced Functions
- • Seamless Roaming
- Mesh (with EAP that supports Mesh)
- OFDMA
- Beamforming
- MU-MIMO
- Rate Limit
- Based on SSID/Client
- Airtime Fairness
- Wireless Encryption
- WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
- Multiple SSIDs
- 16 in total (8 per radio)
- Guest Network
- Support
- WAN Connection Type
- • Static IP
- Dynamic IP
- PPPoE (supports MRU Configuration)
- PPTP
- L2TP
- MAC Clone
- Modify WAN Address
- DHCP
- • DHCP Server
- DHCPv6 PD Server (only in Standalone Mode)
- DHCP Options Customization
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
- SMS
- Receive / Send SMS
- IPv6
- StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
- VLAN
- 802.1Q VLAN
- IPTV
- IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
- ACL
- IP/Port/Protocol/Domain Name Filtering
- Advanced Routing
- • Static Routing
- Policy Routing
- RIP
- OSPF
- Bandwidth Control
- IP-Based Bandwidth Control
- Load Balance
- • Intelligent Load Balance
- Application Optimized Routing
- Link Backup(Timing, Failover)
- Online Detection
- NAT
- • One-to-One NAT
- Multi-Net NAT
- Virtual Server
- Port Triggering
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
- Session Limit
- IP-Based Session Limit
- GRE
- Only in Standalone Mode
- SSL VPN
- 50 Tunnels
- IPsec VPN
- • 100 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IPsec Failover
- IKE v1/v2
- MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
- PPTP VPN
- • PPTP VPN Server
- PPTP VPN Client (10)
- 50 Tunnels
- PPTP with MPPE Encryption
- L2TP VPN
- • L2TP VPN Server
- L2TP VPN Client (10)
- 50 Tunnels
- L2TP over IPSec
- OpenVPN
- • OpenVPN Server
- OpenVPN Client (5)
- 55 OpenVPN Tunnels
- “Certificate + Account” Mode
- Full Mode
- WireGuard VPN
- • 20 Tunnels
- Web Authentication
- • No Authentication
- Simple Password
- Hotspot (Local User / Voucher / SMS / Radius)
- External Radius Sever
- External Portal Sever
- LDAP
- Omada App
- Yes.
- Centralized Management
- • Omada Cloud Essentials
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access
- Yes.
- Service
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
- Maintenance
- • Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)
- NTP Synchronize
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
- Management Features
- • Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
- Certification
- CE, FCC, RoHS
- Package Contents
- • ER703WP-4G-Outdoor
- Mounting Kits
- Quick Installation Guide
- System Requirements
- • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
- MAC OS, NetWare, UNIX or Linux
- Environment
- • Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Storage Temperature
- -40 °C to 70 °C (-40 °F to 158 °F)
- Operating Humidity
- 5% to 95% non-condensing
- Storage Humidity
- 5% to 90% non-condensing
