Name: TP-Link ER7406 Omada Gigabit Rackmount/Desktop VPN Gateway
Brand: TP-Link
SKU: ER7406

รายละเอียดสินค้า

รุ่น	ER7406
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration
IPv6	StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10• MAC OS, NetWare, UNIX or Linux
Flash	128 MB NAND
DRAM	512 MB DDR4
66 Byte Packet Forwarding Rate	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate	81,279 pps / 81,275 pps
IPsec VPN Throughput	• ESP-SHA1-AES256: 885.3Mbps • ESP-SHA256-AES256: 844.8 Mbps • ESP-SHA384-AES256: 868.5 Mbps • ESP-SHA512-AES256: 849.5 Mbps
L2TP VPN Throughput	• Unencrypted: 1422.4 Mbps• Encrypted: 686.2 Mbps
PPTP VPN Throughput	• Unencrypted: 1356.1 Mbps• Encrypted: 205.1 Mbps
SSL VPN Throughput	131.6 Mbps
DPI Throughput	TCP: 933 MbpsUDP: 927 Mbps
IPS Throughput	TCP: 918 MbpsUDP: 920 Mbps
Bandwidth Control	IP-based Bandwidth Control

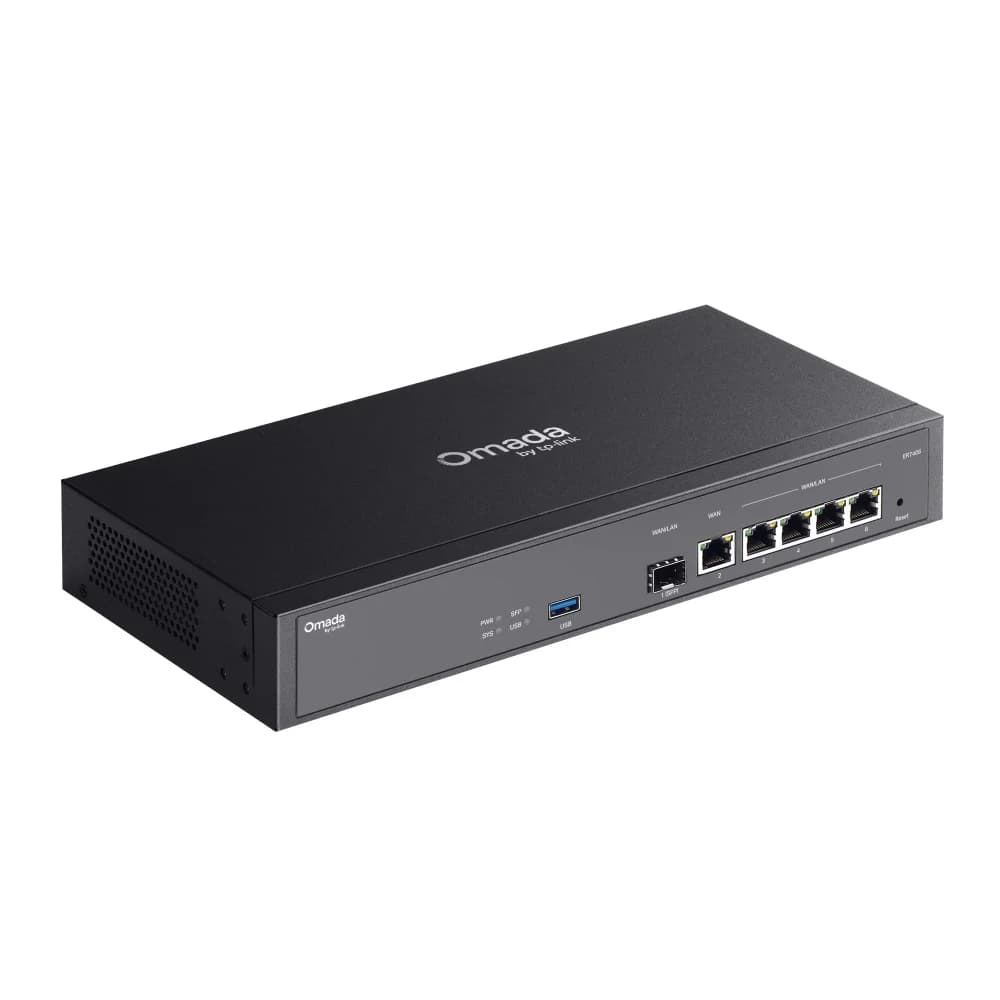

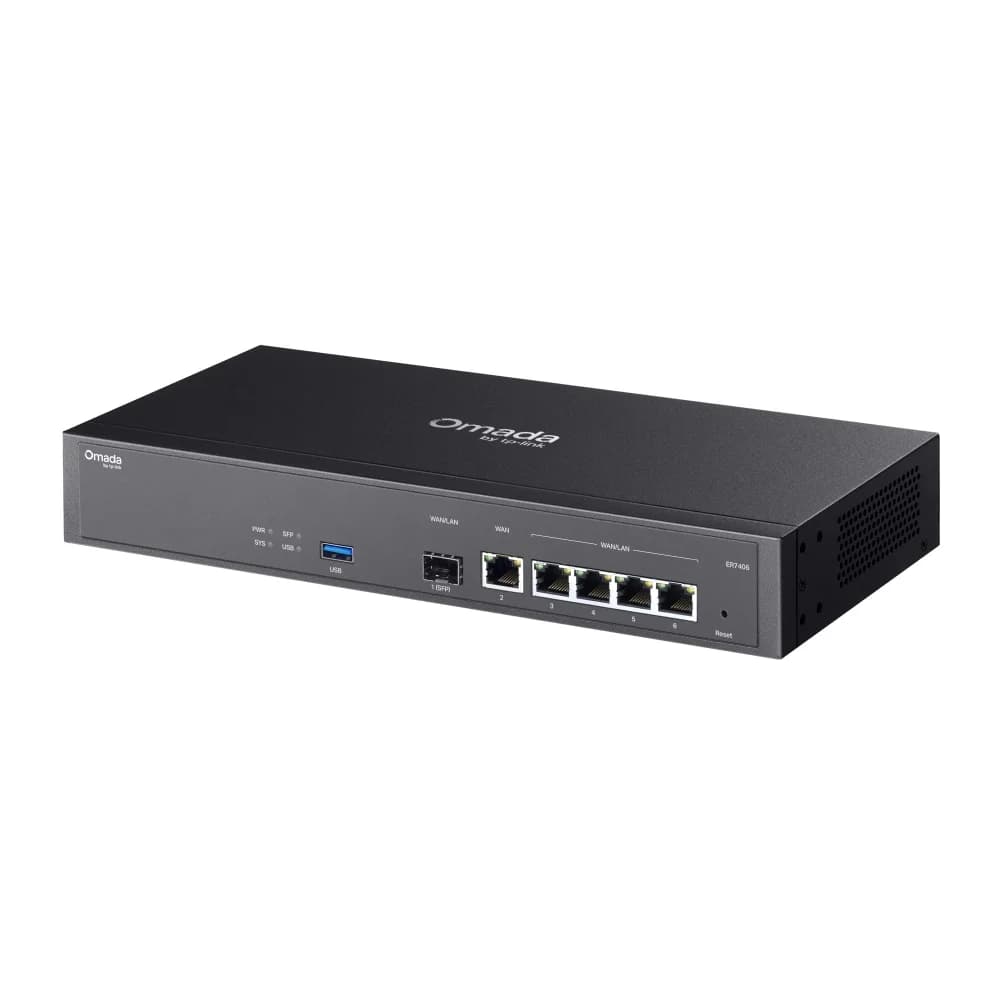

พอร์ตเชื่อมต่อ	• 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port• 4 Gigabit LAN/WAN Ports • 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
LAN DNS	√
WAN Connection Type	• Static IP• Dynamic IP• PPPoE(supports MRU Configuration)• PPTP• L2TP
Max. Power Consumption	• 7.5 W (with USB 3.0 connected)• 4.5 W (without USB 3.0 connected)
NAT(PPPoE)	943.6 Mbps / 940.9 Mbps
Button	Reset button
Protection	4 kV surge protection
Stateful ACL	√
Bridge VLAN	√
VLAN	802.1Q VLAN
Fan Quantity	Fanless
ขนาด (กว้าง × ลึก × สูง)	11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
Mounting	• Desktop• Rackmount
NAT (Static IP)	945.3 Mbps / 940.5 Mbps
Certification	CE, FCC
อุปกรณ์ในกล่อง	• ER7406• Power Cord• Quick Installation Guide• Rackmount Kit
Environment	• Operating Temperature: 0 °C to 50 °C (32 °F to 122°F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing
IDS/IPS	Signature-based IPS/IDS threat detection
Access Control	• Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL• FQDN
DPI	• Deep Packet Inspection • Support 2421 type Applications
DNS Proxy	DNSSEC, DoH, DoT, DNS Override, and DNS Cache
Filtering	• Web Group Filtering§• URL Categories and URLs Filtering• Web Security§
Attack Defense	• TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN
ARP Inspection	• Sending GARP Packets• ARP Scanning§• IP-MAC Binding• ARP Detection
GRE	√ (Only in Standalone Mode)
SSL VPN	50 Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server• PPTP VPN Client (10)※• 50 Tunnels• PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)※• 50 Tunnels• L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (5)※• 55 OpenVPN Tunnels• "Certificate + Account" Mode • Full Mode
WireGuard VPN	√
SD-WAN	√
Standards and Protocols	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP, LLDP
แหล่งจ่ายไฟ	100-240VAC, 50/60Hz

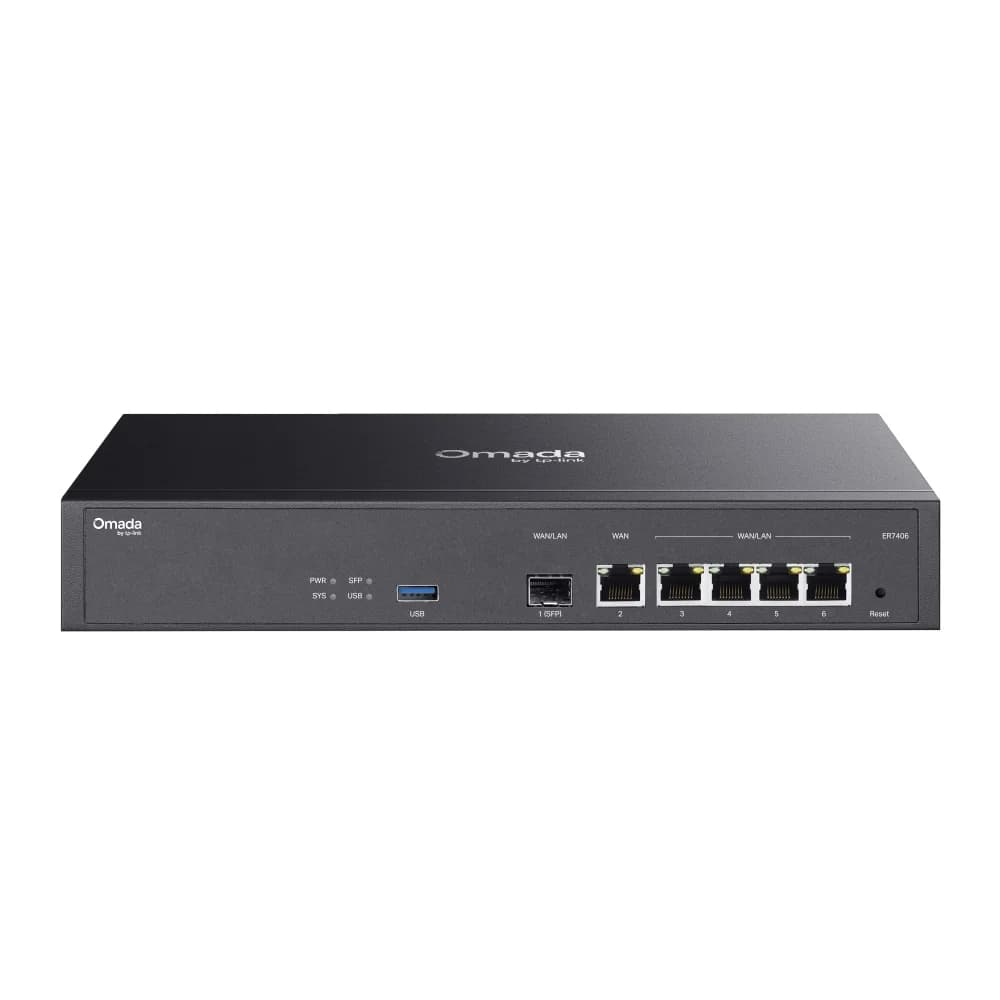

LED	PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Concurrent Session	150,000
New Sessions /Second	4,600
NAT(DHCP)	939.6 Mbps / 940.9 Mbps
NAT (L2TP)	908.6 Mbps / 918.4 Mbps
NAT (PPTP)	906.2 Mbps / 915.9 Mbps
GRE	• Unencrypted: 1094.2 Mbps• Encrypted: 702.2 Mbps
WireGuard VPN	341.3 Mbps
OpenVPN	139.1 Mbps
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize§• Port Mirroring• CLI§• Syslog Support• Speedtest
MAC Clone	Modify WAN/LAN MAC Address†
DHCP	• DHCP Server• DHCPv6 PD Server§• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP• WAN DHCP 60
Quality of Service	√
mDNS Repeater	√
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Routing	• Static Routing• Policy Routing• RIP§• OSPF§
Load Balance	• Intelligent Load Balance• Application Optimized Routing• Link Backup (Timing, Failover)• Online Detection
NAT	• One-to-One NAT• Multi-Net NAT• Port Forwarding• Port Triggering§• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP• Disable NAT
Session Limit	IP-based Session Limit
Web Authentication	• No Authentication• Simple Password• Hotspot (Local User /Voucher‡/ SMS‡/Radius‡)• External Radius Server• External Portal Server‡• LDAP§
ระยะเวลารับประกัน	ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต)
