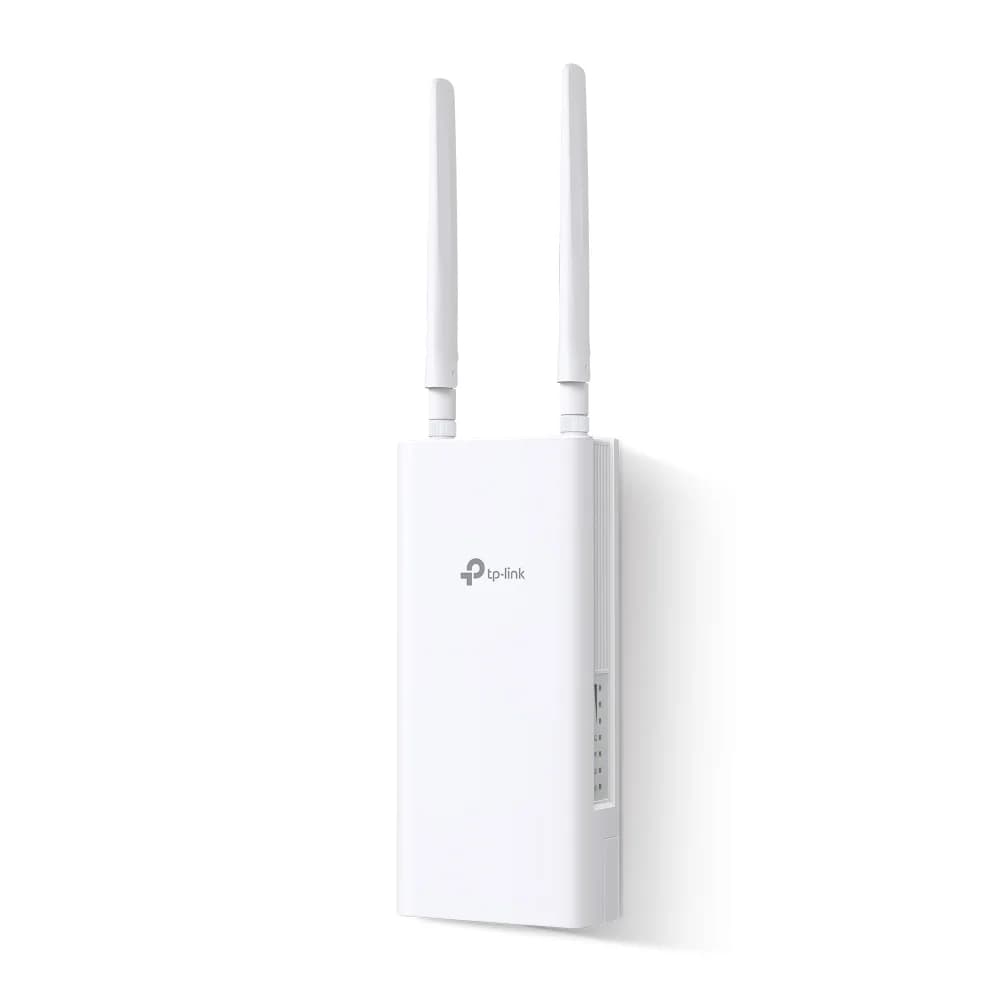

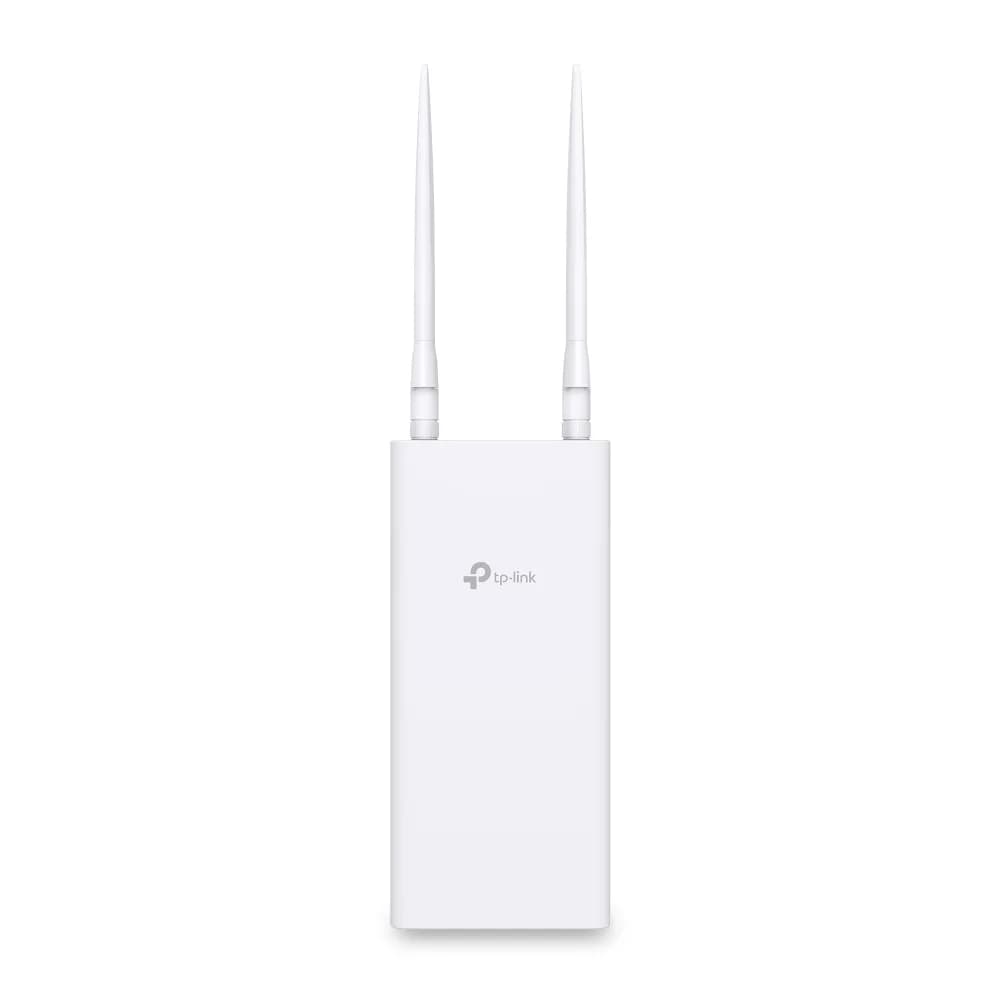

Name: TP-Link TL-MR100-Outdoor 4G 300 Mbps Wi-Fi Outdoor Router
Brand: TP-Link
SKU: TL-MR100-OUTDOOR

รายละเอียดสินค้า

รุ่น	TL-MR100-Outdoor
Management Features	Local Management, Remote Management
Port Forwarding	ALG, Virtual Server, Port Triggering, UPnP, DMZ
เสาอากาศ	2 × Detachable LTE Antennas
มาตรฐานไร้สาย	IEEE 802.11b/g/n
Frequency	2.4 GHz
Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
ความปลอดภัยไร้สาย	WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type	4GFDD-LTE: B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz)TDD-LTE: B38/B40/B41(2600/2300/2500 MHz)3G:DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz)
Guest Network	2.4 GHz guest network
พอร์ตเชื่อมต่อ	1× 100 Mbps WAN/LAN Port (PoE In) 1× Nano SIM Card Slot1 × DC Port
Network Services Enabled by Default	Web Server \| Manage and configure device through web (HTTP/HTTPS) \| • Port: 80/443 Protocol: TCP \| DHCP Server \| IP address assignment (DHCP) \| • Port: 67 Protocol: UDP \| DNS \| • Port: 53 Protocol: TCP \| App management \| Manage and configure device through app \| • Port: 22 Protocol: TCP \| • Port: 20002 Protocol: TCP \| CWMP \| CPE WAN Management Protocol \| • Port: 7547 Protocol: TCP
กำลังไฟ	12V/1A DC24V/0.5A Passive PoE44-57V/0.35A 802.3af/802.3at
Security	DoS, IPv4 SPI Firewall, IP and MAC Address Binding
Buttons	1× Reset Button
Dimensions (W x D x H)	8.9 x 3.9 x 2.2 in (226.6 x 100x 54.7mm)

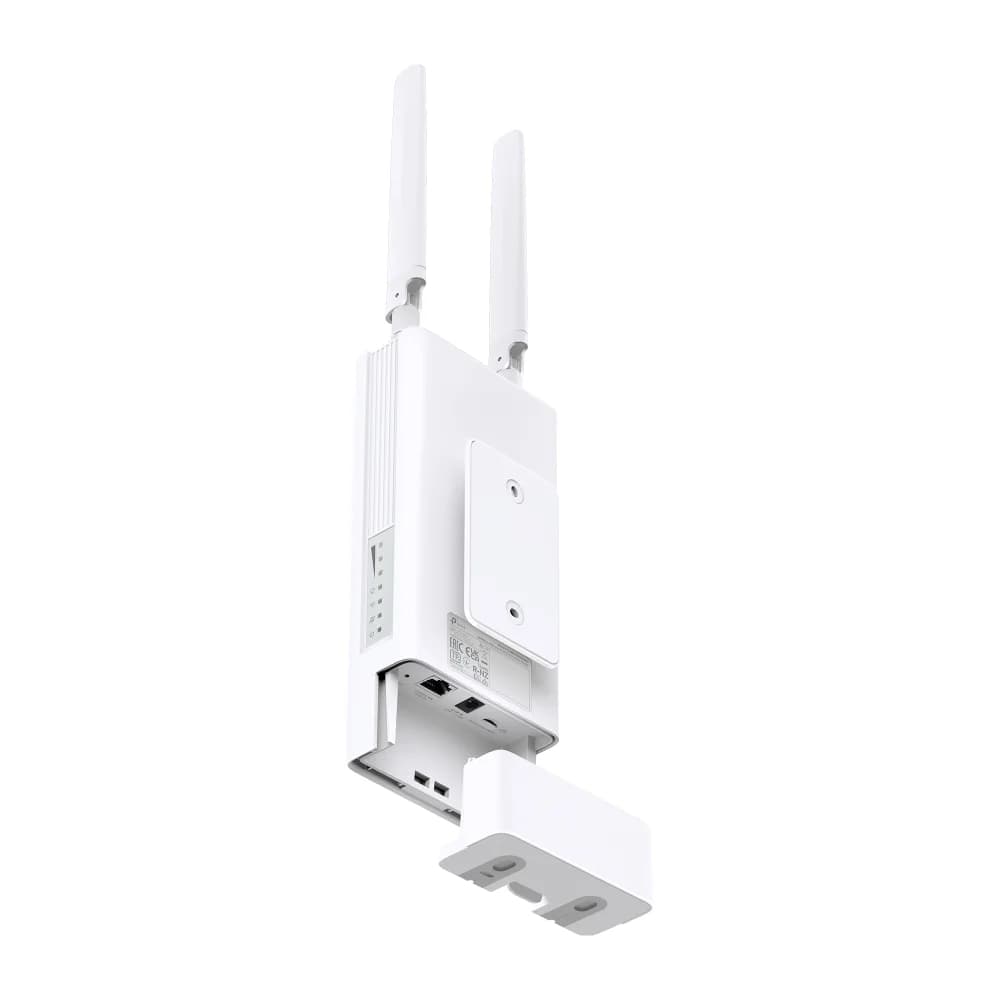

อุปกรณ์ในกล่อง	1× TL-MR100-Outdoor Unit1× 10-meter RJ45 Ethernet Cable1× PoE Adapter1× AC Power Cord1× Quick Installation GuideWindow/Pole/Wall Mounting Kits
Certifications	CE
Environment	Operating Temperature: -30°C~60°C (-22°F~140°F)Storage Temperature: -40°C~70°C (-40 °F~158 °F)Operating Humidity: 10%~90% RHStorage Humidity: 5%~90% RH
Speed	Download Speed 150 MbpsUpload Speed 50 Mbps
SIM Type	1×Nano SIM Card
Operating Modes	3G/4G Router, Wireless Router
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
DHCP	Server, DHCP Client List, Address Reservation
Dynamic DNS	TP-Link, DynDns, NO-IP
Protocols	IPv4, IPv6
Administration	Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
Signal Rate	300 Mbps
Reception Sensitivity	11g 54M: -74 dBm11n HT20: -73 dBm11n HT40: -70 dBm
Requirements	Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser*You are recommended to use the latest version
ระยะเวลารับประกัน	3 ปี
