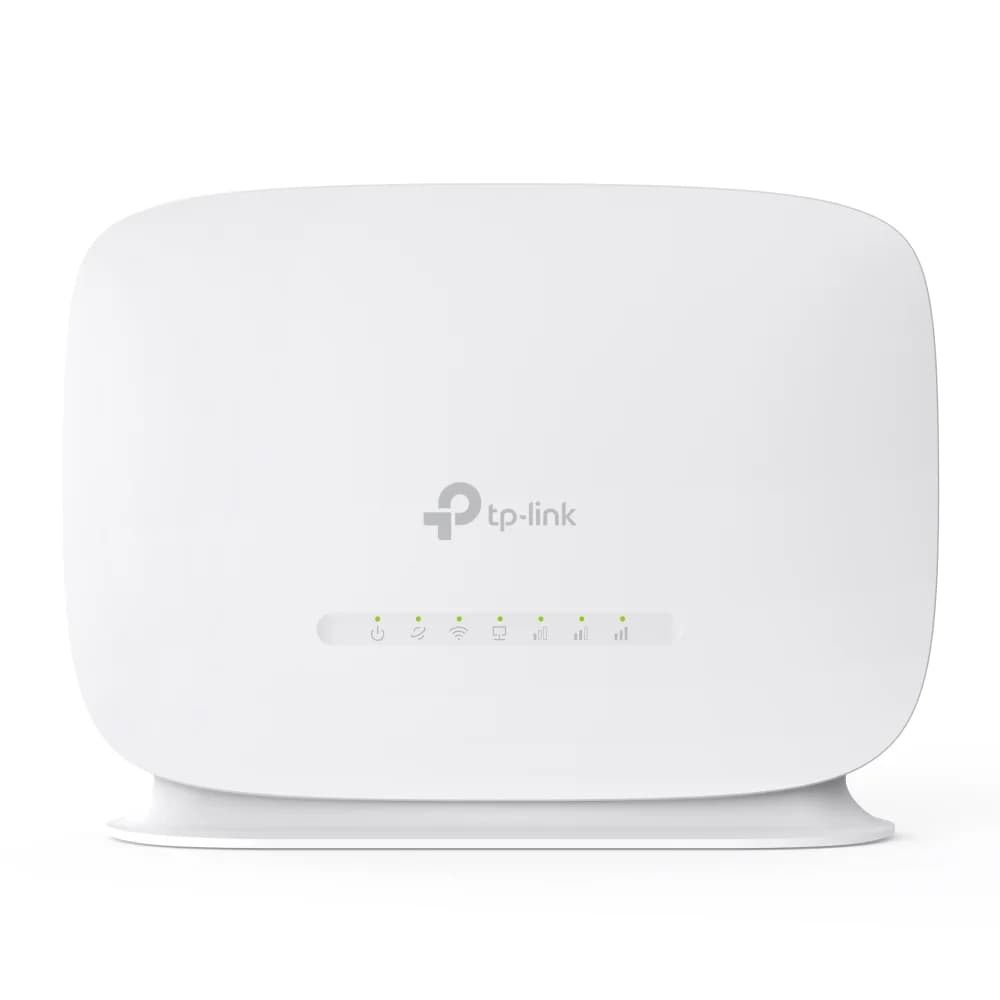

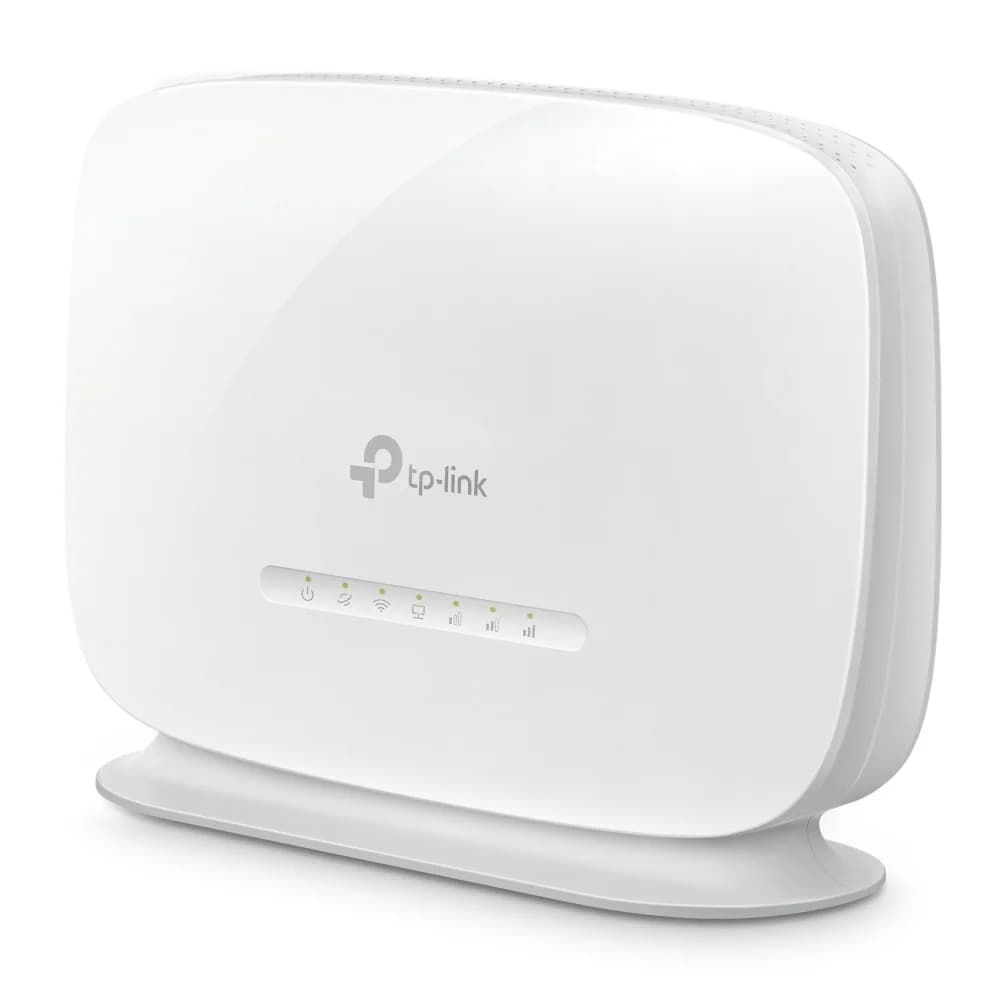

300 Mbps Wireless N 4G LTE Router
| รุ่น | TL-MR105 |
|---|---|
| Management Features | Local Management, Remote Management |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| เสาอากาศ | 2× Internal 4G/3G Antennas2× Internal Wi-Fi Antennas |
| มาตรฐานไร้สาย | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| ความปลอดภัยไร้สาย | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |

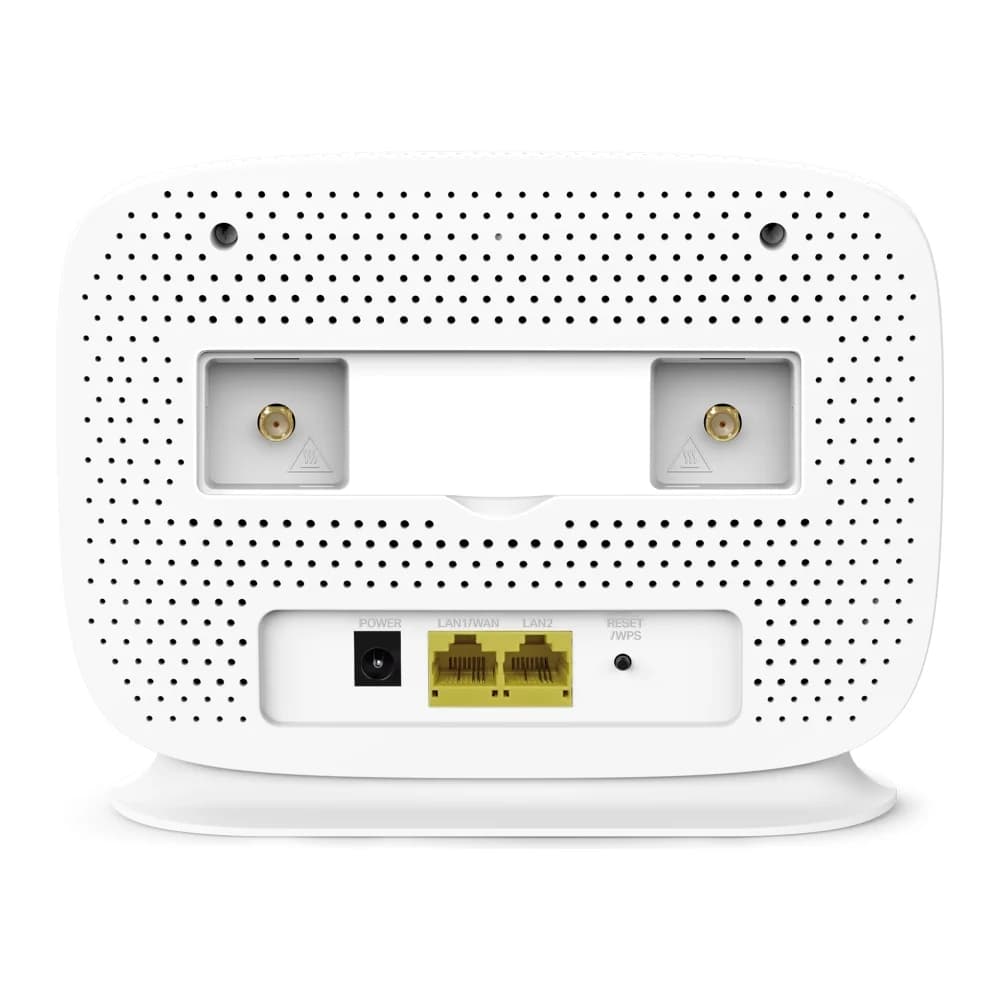

| พอร์ตเชื่อมต่อ | 1 10/100Mbps LAN Port1 10/100Mbps LAN/WAN Port1 Nano SIM Card Slot2 External SMA-F Antenna Interface |
| Guest Network | 2.4 GHz Guest Network |
| Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| Network Services Enabled by Default | Web Server | Manage and configure device through web (HTTP/HTTPS) | • Port: 80/443 Protocol: TCP | DHCP Server | IP address assignment (DHCP) | • Port: 67 Protocol: UDP | DNS | • Port: 53 Protocol: TCP | App management | Manage and configure device through app | • Port: 22 Protocol: TCP | • Port: 20002 Protocol: TCP | CWMP | CPE WAN Management Protocol | • Port: 7547 Protocol: TCP |
| External Power Supply(EU) | 9V/0.85A |
| Transmission Power | < 20 dBm (2.4 GHz) |
| Button | Reset/WPS Button |
| Security | IPv4 SPI Firewall, IP and MAC Address Binding |
| ขนาด (กว้าง × ลึก × สูง) | 6.85×5.12×2.36 in (174×130×60 mm) |
| Certification | CE |
| อุปกรณ์ในกล่อง | 300 Mbps Wireless N 4G LTE TL-MR1051.5m Power AdapterRJ45 Ethernet CableQuick Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP | Server, DHCP Client List, Address Reservation |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| Protocols | IPv4, IPv6 |
| Administration | Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
| Signal Rate | 300 Mbps |
| Reception Sensitivity | 11g 54M: -74dBm11n HT20: -73dBm11n HT40: -70dBm |
| WAN Failover | Yes |
| Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserNano SIM Card |
| ระยะเวลารับประกัน | 3 ปี |
